VD4 Universal Power Distribution/Intelligent Operation and Maintenance, VD4/P Compact Structure/High-Frequency Operation, Medium-Voltage Switchgear Solutions Covering Standard and Compact Scenarios

VD4 Universal Power Distribution/Intelligent Operation and Maintenance, VD4/P Compact Structure/High-Frequency Operation, Medium-Voltage Switchgear Solutions Covering Standard and Compact Scenarios

The VD4 series are indoor vacuum circuit breakers for primary and secondary power distribution systems, renowned for their reliability, long lifespan, and modular design. This series encompasses a full range of products, from standard general-purpose to highly specialized models, designed to meet the needs of diverse industries, utilities, and infrastructure.

Get a Quote
Model coding rules (12kV)
Taking VD4/P 12.12.25 P210 220NST as an example:
Code section meaning This example illustrates...
VD4 Product Series VD4 Vacuum Circuit Breaker
/P Derivative code /P=Equipped with HE type operating mechanism; /P=Handcart type; /M=Permanent magnet mechanism; None=Fixed standard type
12 Rated voltage 12 kV
12 Rated current code 06=630A,12=1250A,16=1600A,20=2000A,25=2500A,32=3150A,40=4000A
25 Short-circuit breaking current (kA) 25=25kA,32=31.5kA,40=40kA,50=50kA (Special)
P210 Phase spacing (mm) P150=150mm,P210=210mm,P275=275mm
220NST Operating mechanism/accessory code Energy storage motor voltage (220V DC), accessory configuration, etc.
⚠Phase spacing (P-value) is a key factor in selection:The center distance must perfectly match the contact box of the switchgear; otherwise, installation is impossible. Common 12kV VD4 specifications are P150, P210, and P275.
Standard VD4 12kV Complete Model List
The 12kV VD4 standard series covers the following specifications:
1. 630A specification (current code 06)
Breaking current Phase spacing Handcart model Fixed model
25 kA P150 VD4/P 12.06.25 P150 VD4 12.06.25 P150
25 kA P210 VD4/P 12.06.25 P210 VD4 12.06.25 P210
31.5 kA P210 VD4/P 12.06.32 P210 VD4 12.06.32 P210
2. 1250A specification (current code 12)
Breaking current Phase spacing Handcart model Fixed model
25 kA P150 VD4/P 12.12.25 P150 VD4 12.12.25 P150
25 kA P210 VD4/P 12.12.25 P210 VD4 12.12.25 P210
31.5 kA P150 VD4/P 12.12.32 P150 VD4 12.12.32 P150
31.5 kA P210 VD4/P 12.12.32 P210 VD4 12.12.32 P210
40 kA P210 VD4/P 12.12.40 P210 VD4 12.12.40 P210
40 kA P275 VD4/P 12.12.40 P275 VD4 12.12.40 P275
3. 1600A specification (current code 16)
Breaking current Phase spacing Handcart model Fixed model
25 kA P210 VD4/P 12.16.25 P210 VD4 12.16.25 P210
31.5 kA P210 VD4/P 12.16.32 P210 VD4 12.16.32 P210
40 kA P275 VD4/P 12.16.40 P275 VD4 12.16.40 P275
4. 2000A specification (current code 20)
Breaking current Phase spacing Handcart model Fixed model
25 kA P210 VD4/P 12.20.25 P210 VD4 12.20.25 P210
31.5 kA P210 VD4/P 12.20.32 P210 VD4 12.20.32 P210
40 kA P275 VD4/P 12.20.40 P275 VD4 12.20.40 P275
5. 2500A specification (current code 25)
Breaking current Phase spacing Handcart model Fixed model
25 kA P275 VD4/P 12.25.25 P275 VD4 12.25.25 P275
31.5 kA P275 VD4/P 12.25.32 P275 VD4 12.25.32 P275
40 kA P275 VD4/P 12.25.40 P275 VD4 12.25.40 P275
6. 3150A specification (current code 32)
Breaking current Phase spacing Handcart model Fixed model
25 kA P275 VD4/P 12.32.25 P275 VD4 12.32.25 P275
31.5 kA P275 VD4/P 12.32.32 P275 VD4 12.32.32 P275
40 kA P275 VD4/P 12.32.40 P275 VD4 12.32.40 P275
7. 4000A specification (current code 40)
Breaking current Phase spacing Handcart model Fixed model
25 kA P275 VD4/P 12.40.25 P275 VD4 12.40.25 P275
31.5 kA P275 VD4/P 12.40.32 P275 VD4 12.40.32 P275
40 kA P275 VD4/P 12.40.40 P275 VD4 12.40.40 P275
Technical Specifications Summary Table
Parameters Standard VD4 series
Rated voltage 12 kV
Rated current 630A ~ 4000A
Breaking current 25 kA ~ 50 kA
Phase spacing P150 / P210 / P275
Installation method Fixed/Handcart
Operating mechanism Spring energy storage
Mechanical life 30,000 times
Intelligent Optional

Key reminders for product selection
1. Confirm the phase spacing (P-value).The 12kV VD4 is mainly available in three specifications: P150, P210, and P275. When selecting a model, be sure to check it against the switchgear drawings.
2. Specify the installation method: Fixed type: No /P in the model name, applicable to fixed cabinets. Handcart type ( /P): Applicable to removable switchgear (such as KYN28, UniGear, etc.).
3. Select the operating mechanism voltageCommon options include 110V DC and 220V DC (code 220NST), which must be matched with the control system.
4. Confirm attachment configurationThis includes auxiliary switches, anti-pumping devices, interlocking electromagnets, second trip units, and undervoltage trip units.
Model number coding rules (17.5kV)
Taking VD4/P 17.5.12.25 P210 as an example:
Code section meaning This example illustrates...
VD4 Product Series VD4 Vacuum Circuit Breaker
/P Installation method /P = Handcart type (pull-out type); None /P = Fixed type
17.5 Rated voltage 17.5 kV
12 Rated current code 06=630A,12=1250A,16=1600A,20=2000A,25=2500A,32=3150A,40=4000A
25 Short-circuit breaking current (kA) 25=25kA,32=31.5kA,40=40kA,50=50kA (Special)
P210 Phase spacing (mm) P150=150mm,P210=210mm,P275=275mm
220NST Operating mechanism/accessory code Energy storage motor voltage (220V DC), accessory configuration, etc.
⚠Phase spacing (P-value) is a key factor in selection:The center distance must perfectly match the contact box of the switchgear; otherwise, installation is impossible. Common 12kV VD4 specifications are P150, P210, and P275.
Standard VD4 17.5kV Complete Model List
The 17.5kV VD4 standard series covers the following specifications:
1. 630A specification (current code 06)
Breaking current Phase spacing Handcart model Fixed model
25 kA P210 VD4/P 17.5.06.25 P210 VD4 17.5.06.25 P210
31.5 kA P210 VD4/P 17.5.06.32 P210 VD4 17.5.06.32 P210
2. 1250A specification (current code 12)
Breaking current Phase spacing Handcart model Fixed model
25 kA P150 VD4/P 17.5.12.25 P150 VD4 17.5.12.25 P150
25 kA P210 VD4/P 17.5.12.25 P210 VD4 17.5.12.25 P210
31.5 kA P150 VD4/P 17.5.12.32 P150 VD4 17.5.12.32 P150
31.5 kA P210 VD4/P 17.5.12.32 P210 VD4 17.5.12.32 P210
40 kA P150 VD4/P 17.5.12.40 P150 VD4 17.5.12.40 P150
3. 1600A specification (current code 16)
Breaking current Phase spacing Handcart model Fixed model
25 kA P210 VD4/P 17.5.16.25 P210 VD4 17.5.16.25 P210
31.5 kA P210 VD4/P 17.5.16.32 P210 VD4 17.5.16.32 P210
40 kA P210 VD4/P 17.5.16.40 P210 VD4 17.5.16.40 P210
4. 2000A specification (current code 20)
Breaking current Phase spacing Handcart model Fixed model
25 kA P210 VD4/P 17.5.20.25 P210 VD4 17.5.20.25 P210
31.5 kA P210 VD4/P 17.5.20.32 P210 VD4 17.5.20.32 P210
40 kA P275 VD4/P 17.5.20.40 P275 VD4 17.5.20.40 P275
5. 2500A specification (current code 25)
Breaking current Phase spacing Handcart model Fixed model
25 kA P275 VD4/P 17.5.25.25 P275 VD4 17.5.25.25 P275
31.5 kA P275 VD4/P 17.5.25.32 P275 VD4 17.5.25.32 P275
40 kA P275 VD4/P 17.5.25.40 P275 VD4 17.5.25.40 P275
6. 3150A specification (current code 32)
Breaking current Phase spacing Handcart model Fixed model
25 kA P275 VD4/P 17.5.32.25 P275 VD4 17.5.32.25 P275
31.5 kA P275 VD4/P 17.5.32.32 P275 VD4 17.5.32.32 P275
Standard VD4 24kV Complete Model List
The 24kV VD4 standard series covers the following specifications:
3150A specification (current code 32)
Breaking current Phase spacing Handcart model Fixed model
25 kA P275 VD4/P 24.32.25 P275 VD4 24.32.25 P275
31.5 kA P275 VD4/P 24.32.32 P275 VD4 24.32.32 P275
Technical Specifications Summary Table
Parameters Standard VD4 series
Rated voltage 24 kV
Rated current 630A ~ 3150A
Breaking current 25 kA / 31.5 kA
Phase spacing P210 / P275
Installation method Fixed/Handcart
Mechanical life 30,000 times
Operating mechanism Spring energy storage (EL type)
Applicable Scenarios Primary/Secondary Power Distribution
Key reminders for product selection
1. Confirm the phase spacing (P-value).The 24kV VD4 is mainly available in two specifications: P210 and P275. When selecting a model, be sure to check it against the switchgear drawings.
2. Specify the installation method: Fixed type is suitable for fixed cabinets, and truck type (/P) is suitable for removable switch cabinets (such as KYN28, ZS1, etc.).
3. Select the operating mechanism voltageCommon options include 110V DC (110NST) and 220V DC (220NST), which need to be matched with the control system.
4. Confirm attachment configurationThis includes auxiliary switches, anti-pumping devices, interlocking electromagnets, etc., which must be specified when ordering.
Model number coding rules (40.5kV)
Taking VD4/P 40.12.25 P280 185BIL as an example:
Code section meaning This example illustrates...
VD4 Product Series VD4 Vacuum Circuit Breaker
/P Derivative code /P = Equipped with HE type operating mechanism; None = Standard type
40 Rated voltage 40.5 kV
12 Rated current code 12=1250A,16=1600A,20=2000A,25=2500A,31=3150A
25 Short-circuit breaking current (kA) 25=25kA,31=31.5kA
P280 Phase spacing (mm) P280=280mm (handcart type)P360=360mm (fixed type)
185BIL Insulation level Lightning impulse withstand voltage 185kV
110NST/220NST Operating mechanism voltage 110V DC / 220V DC
⚠Phase spacing (P-value) is a key factor in selection:The 40.5kV VD4 truck-mounted type is usually P280, and the fixed type is P360. The center distance of the contact box of the switch cabinet must be perfectly matched.
Standard VD4 40.5kV Complete Model List
The 40.5kV VD4 standard series covers the following specifications:
1. 1250A specification (current code 12)
Breaking current Phase spacing Handcart model Fixed model
25 kA P280 / P360 VD4 40.12.25 P280 VD4 40.12.25 P360
31.5 kA P280 / P360 VD4 40.12.31 P280 VD4 40.12.31 P360
2. 1600A specification (current code 16)
Breaking current Phase spacing Handcart model Fixed model
25 kA P280 / P360 VD4 40.16.25 P280 VD4 40.16.25 P360
31.5 kA P280 / P360 VD4 40.16.31 P280 VD4 40.16.31 P360
Example of specific models:
VD4 40.16.25 P6 110NST (Fixed type, order number: 51000645)
VD4 40.16.25 P280 (handcart type)
3. 2000A specification (current code 20)
Breaking current Phase spacing Handcart model Fixed model
25 kA P280 / P360 VD4 40.20.25 P280 VD4 40.20.25 P360
31.5 kA P280 / P360 VD4 40.20.31 P280 VD4 40.20.31 P360
4. 2500A specification (current code 25)
Breaking current Phase spacing Handcart model Fixed model
25 kA P280 / P360 VD4 40.25.25 P280 VD4 40.25.25 P360
31.5 kA P280 / P360 VD4 40.25.31 P280 VD4 40.25.31 P360
3150A specification (current code 31)
Breaking current Phase spacing Handcart model Fixed model
25 kA P280 / P360 VD4 40.31.25 P280 VD4 40.31.25 P360
31.5 kA P280 / P360 VD4 40.31.31 P280 VD4 40.31.31 P360
Technical Specifications Summary Table
Parameters Standard VD4 series
Rated voltage 40.5 kV
Rated current 1250A ~ 3150A
Breaking current 25 kA / 31.5 kA
Phase spacing (handcart type) P280
Phase spacing (fixed) P360
Installation method Fixed/Handcart
Operating mechanism Spring energy storage
Mechanical life 20,000 times
Electrical life —
Power frequency withstand voltage 95 kV / 1 min
Lightning impulse withstand voltage 185 kV
Applicable Standards GB/T 1984 / IEC 62271-100
Key reminders for product selection
1. Confirm the phase spacing (P-value).40.5kV VD4 handcart type is usuallyP280Fixed typeP360When selecting a model, be sure to check it against the switch cabinet drawings.
2. Specify the installation method: Fixed type: Suitable for fixed cabinets, phase spacing P360. Truck type (/P or M suffix): Suitable for removable switchgear (such as UniGear ZS1), phase spacing P280.
3. Select the operating mechanism voltageCommon options include 110V DC (110NST) and 220V DC (220NST), which need to be matched with the control system.

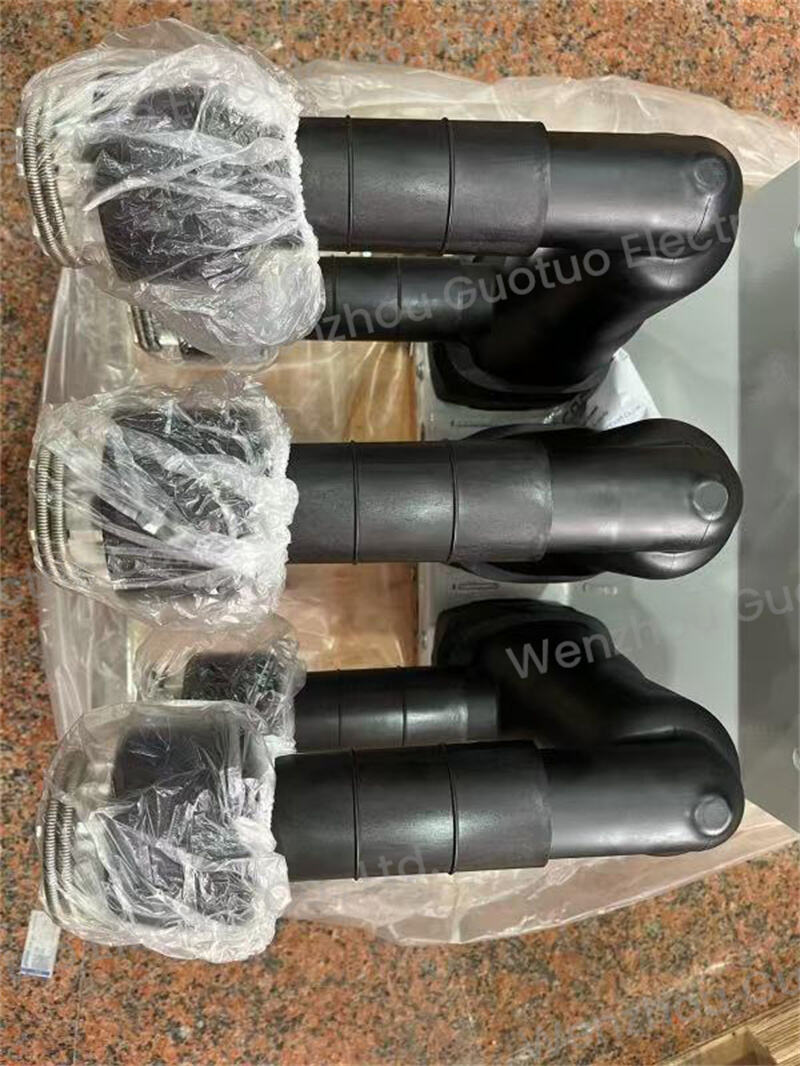

  • 1-手车式.jpg

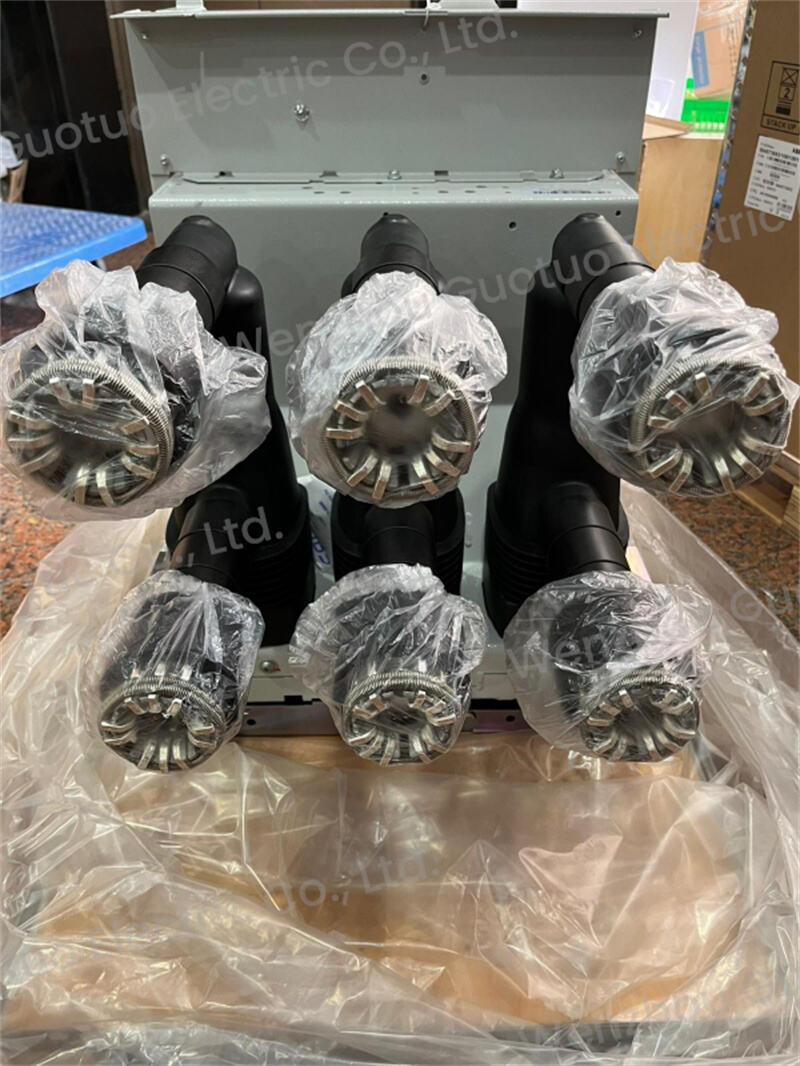

  • 2-手车式.jpg

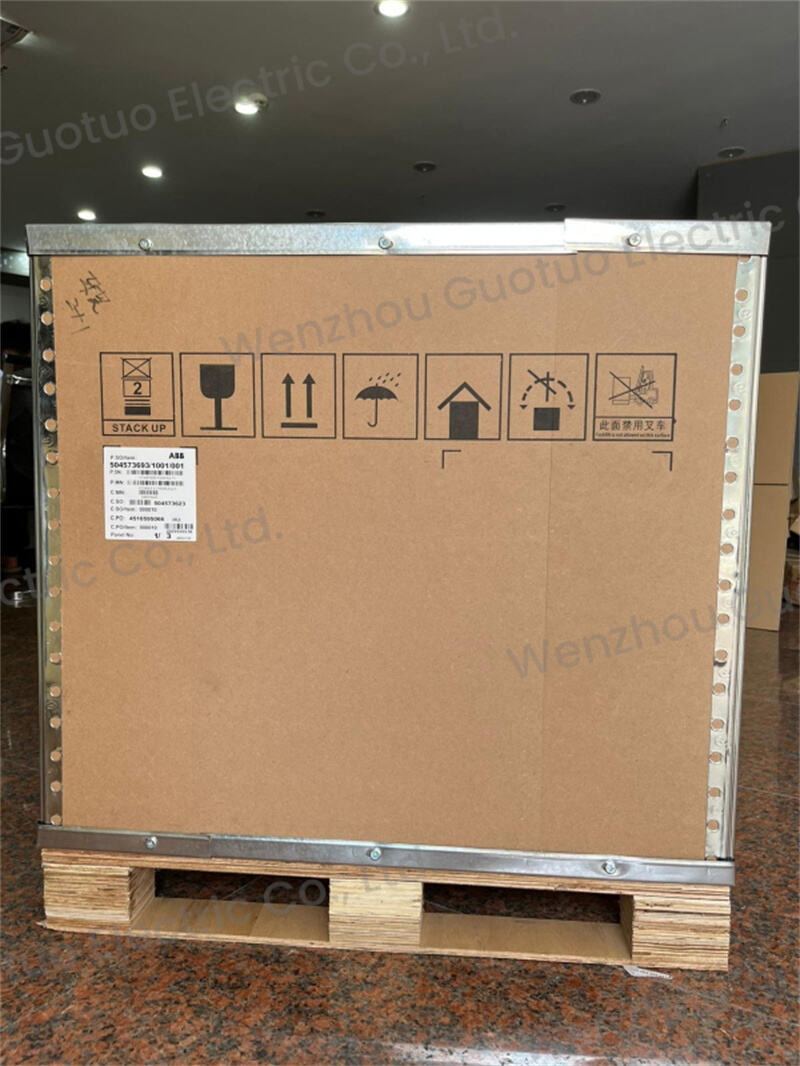

  • 3-手车式.jpg

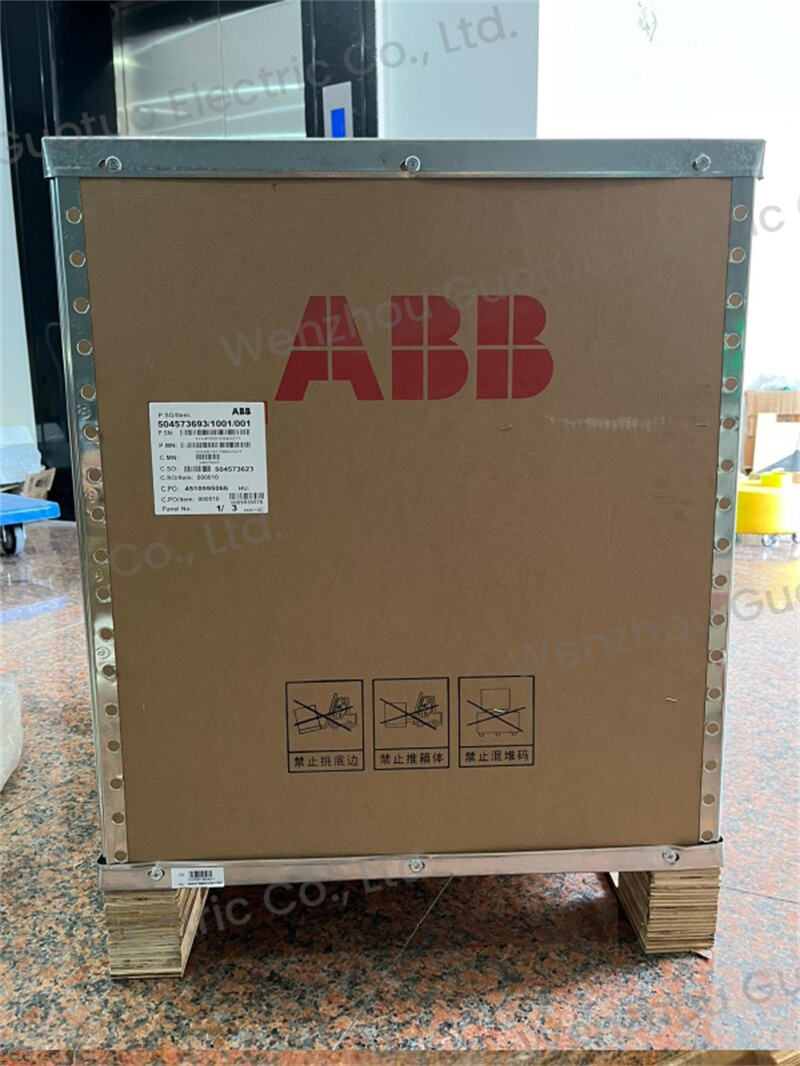

  • 4-手车式.jpg

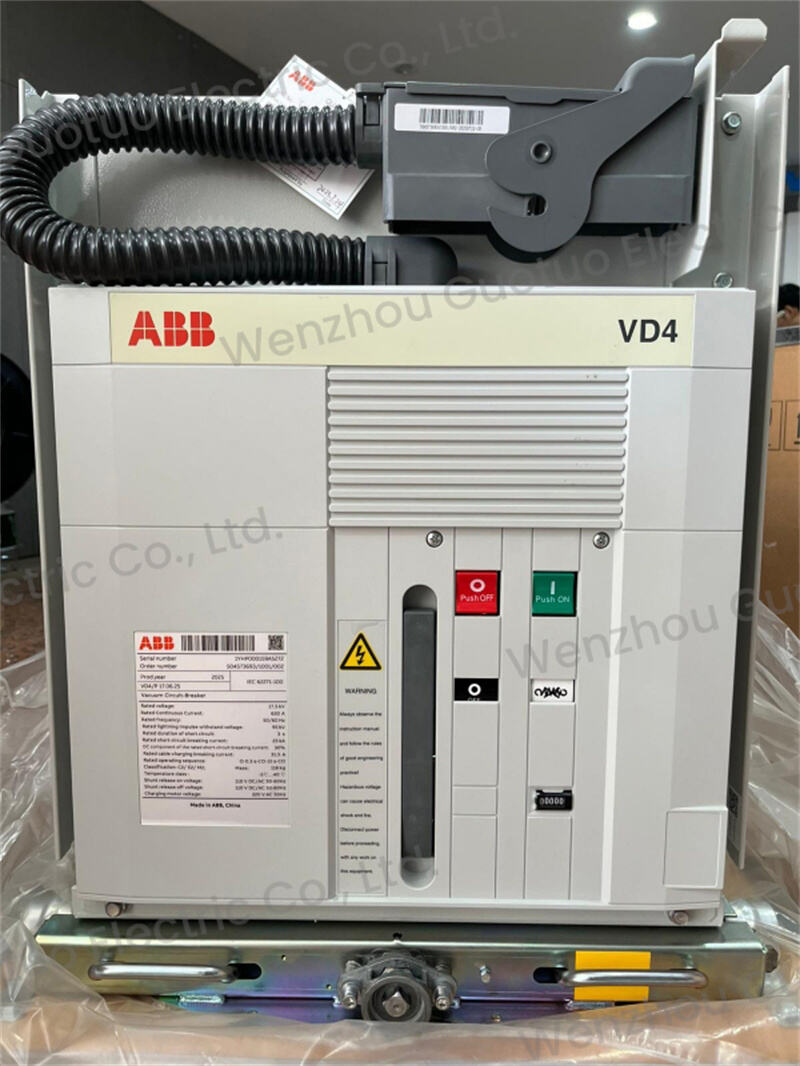

  • 5-手车式.jpg

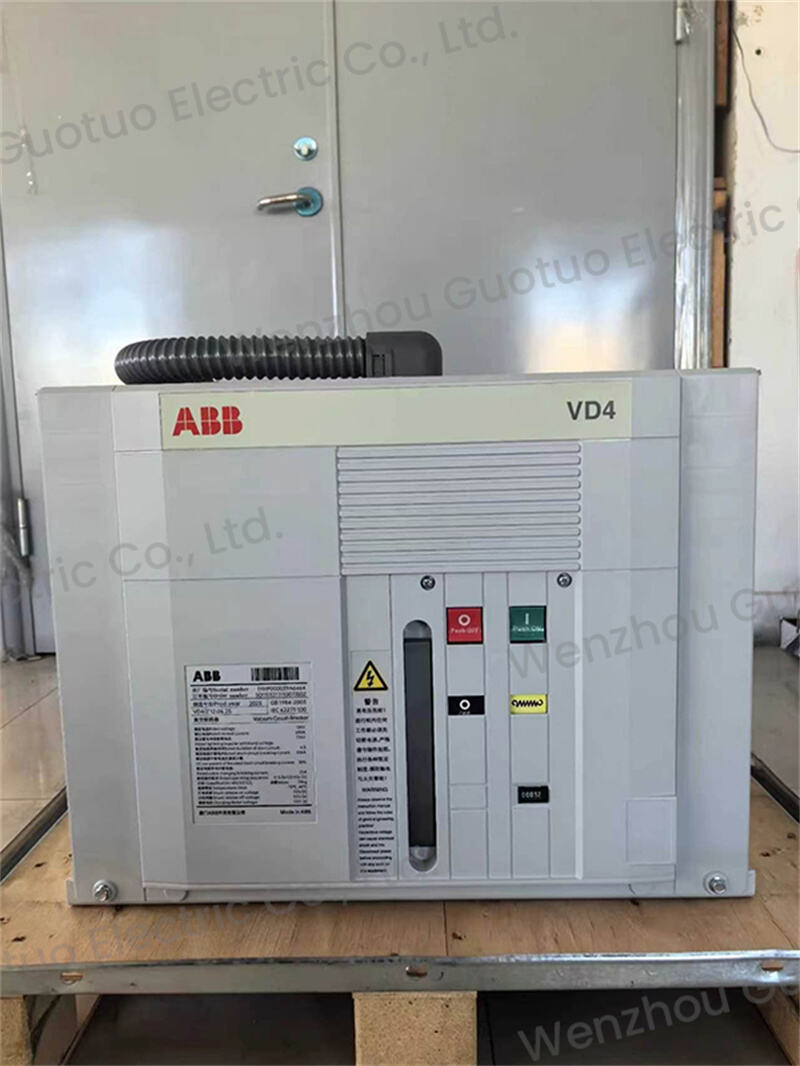

  • 6-固定式.jpg

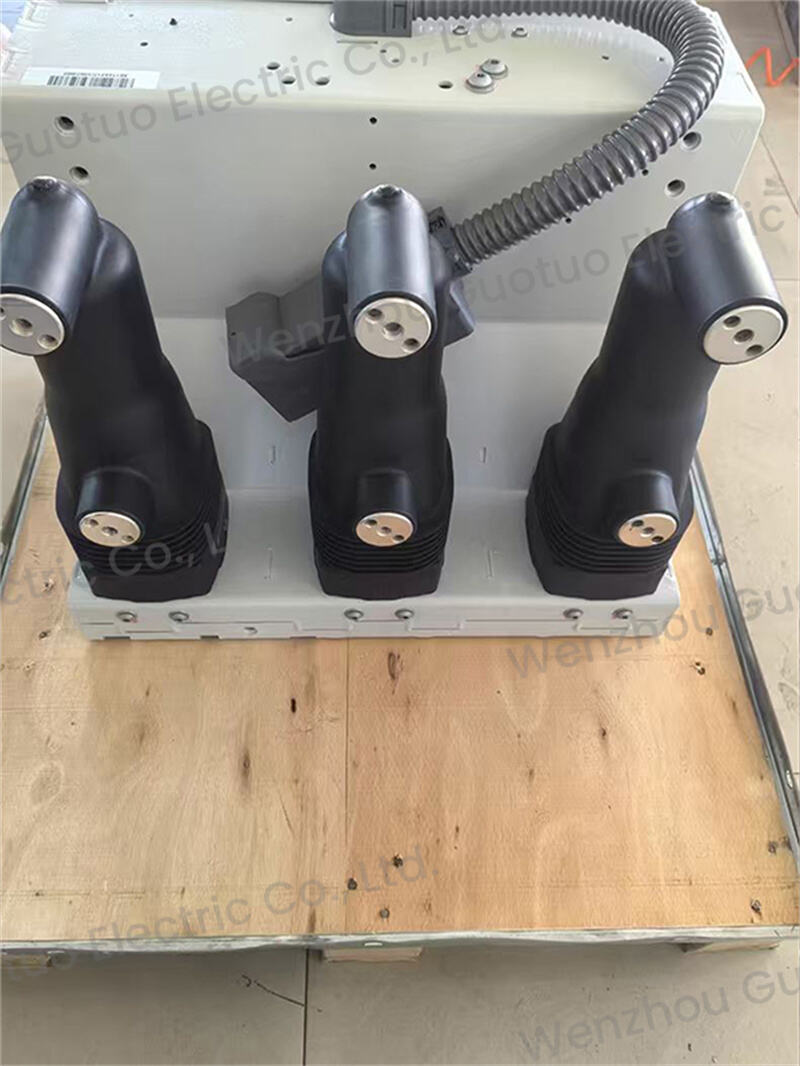

  • 7-固定式.jpg

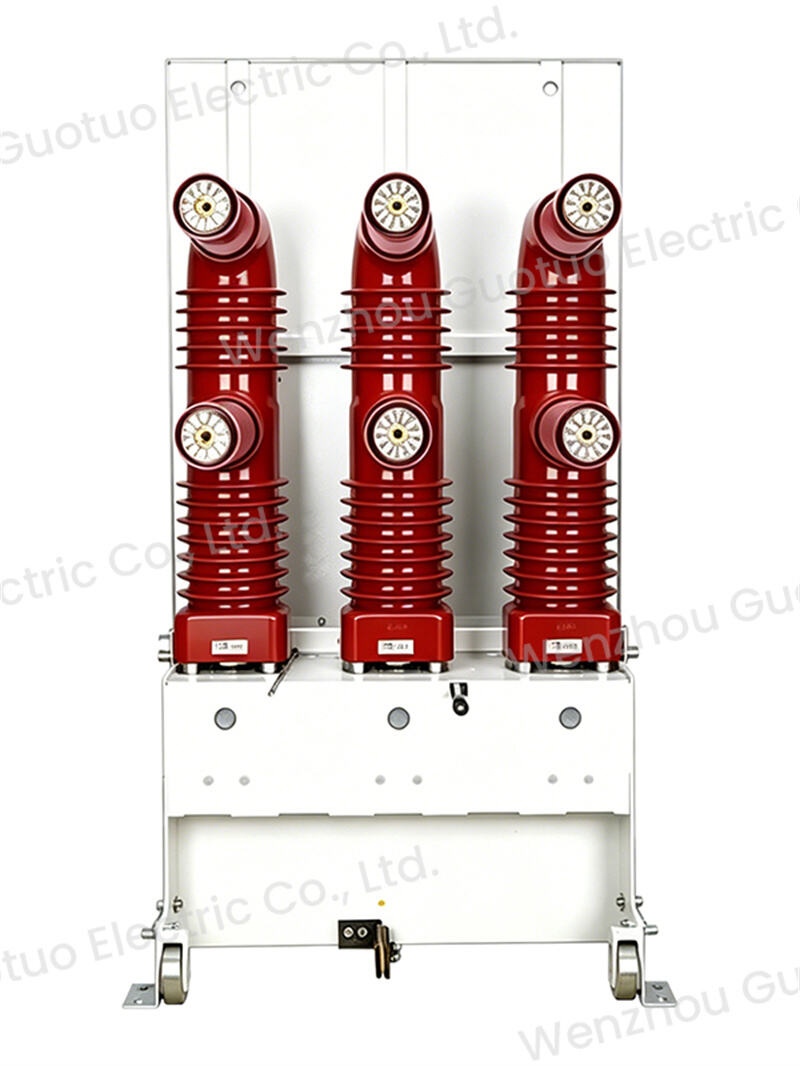

  • 8-40.5KV.jpg

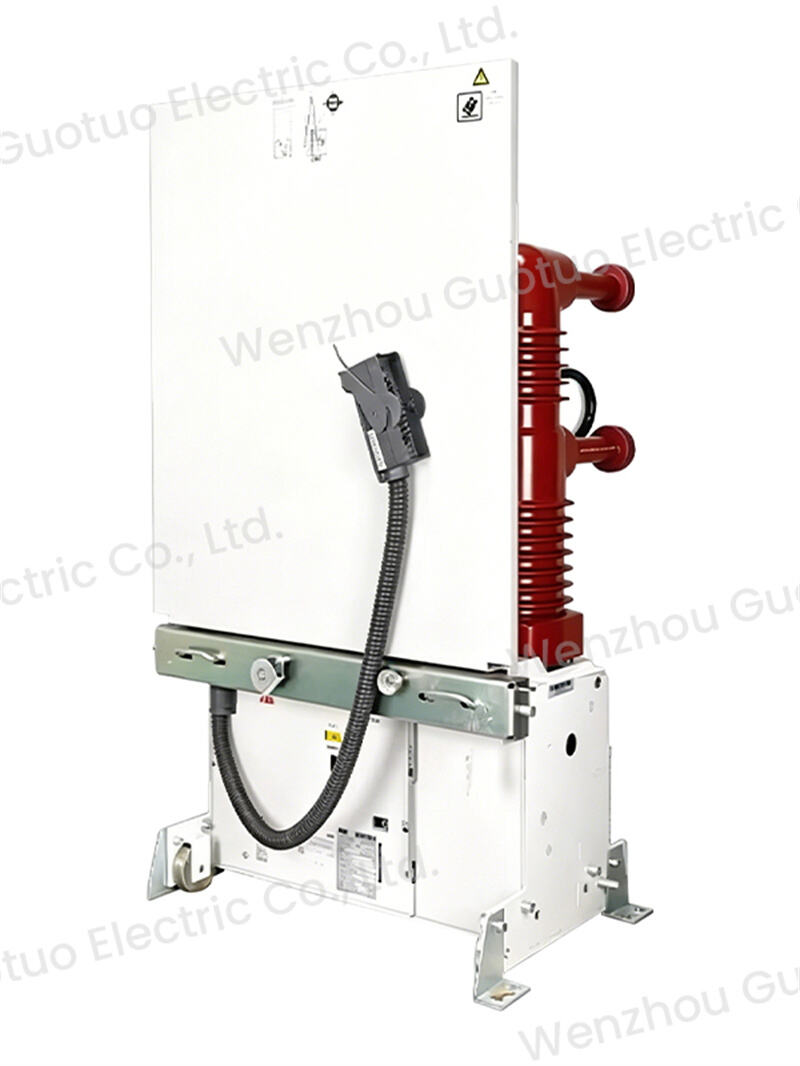

  • 9-40.5KV.jpg

Application Scenarios and Core Value

Comparison Dimensions VD4 Standard Series VD4/P series
Core positioning The universal standard series Enhanced series specifically optimized for switchgear panels
Target users All medium-voltage power distribution scenarios, including panel manufacturers, EPC contractors, industrial users, and power companies. Panel manufacturers (OEMs), especially those producing fixed switchgear.
Typical applications Power plants, substations, industrial power distribution, infrastructure, ships, capacitor bank switching, and almost all other primary power distribution fields. Fixed switchgear (such as the XGN series), power plant auxiliary power supply, industrial and mining enterprise substations, etc.
Core Values Wide applicability and powerful performance:With over 2 million units installed worldwide, its exceptional versatility and reliability are evident. It offers outstanding performance up to 46kV, 4000A, and 63kA, meeting a wide range of needs from standard power distribution to harsh environments such as marine applications. Safe and reliable "in-cabinet collaboration":By integrating more deeply with switchgear, it enhances the safety and ease of operation of the entire power distribution system. Its core value lies not in higher electrical parameters, but in its "seamless collaboration" with fixed switchgear.

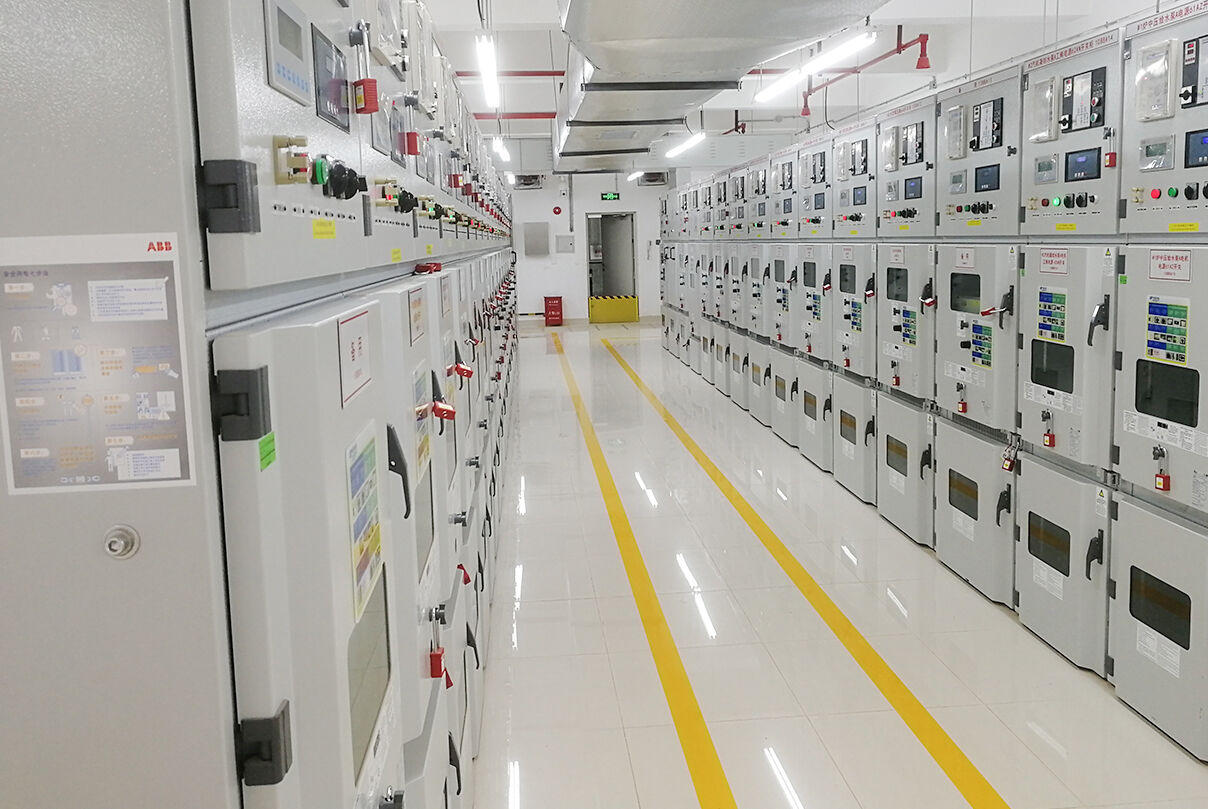

  • VD4应用场景-工业配电.jpg

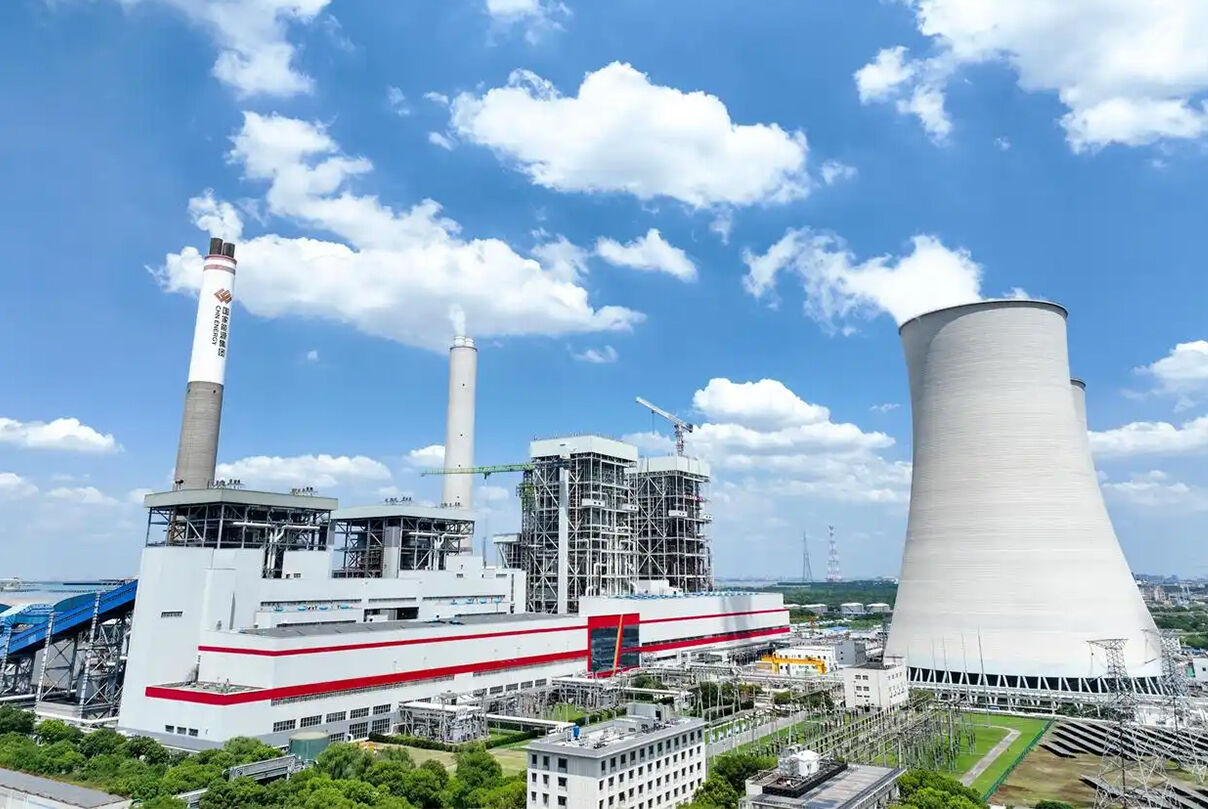

  • VD4-P-应用场景-发电厂.jpg

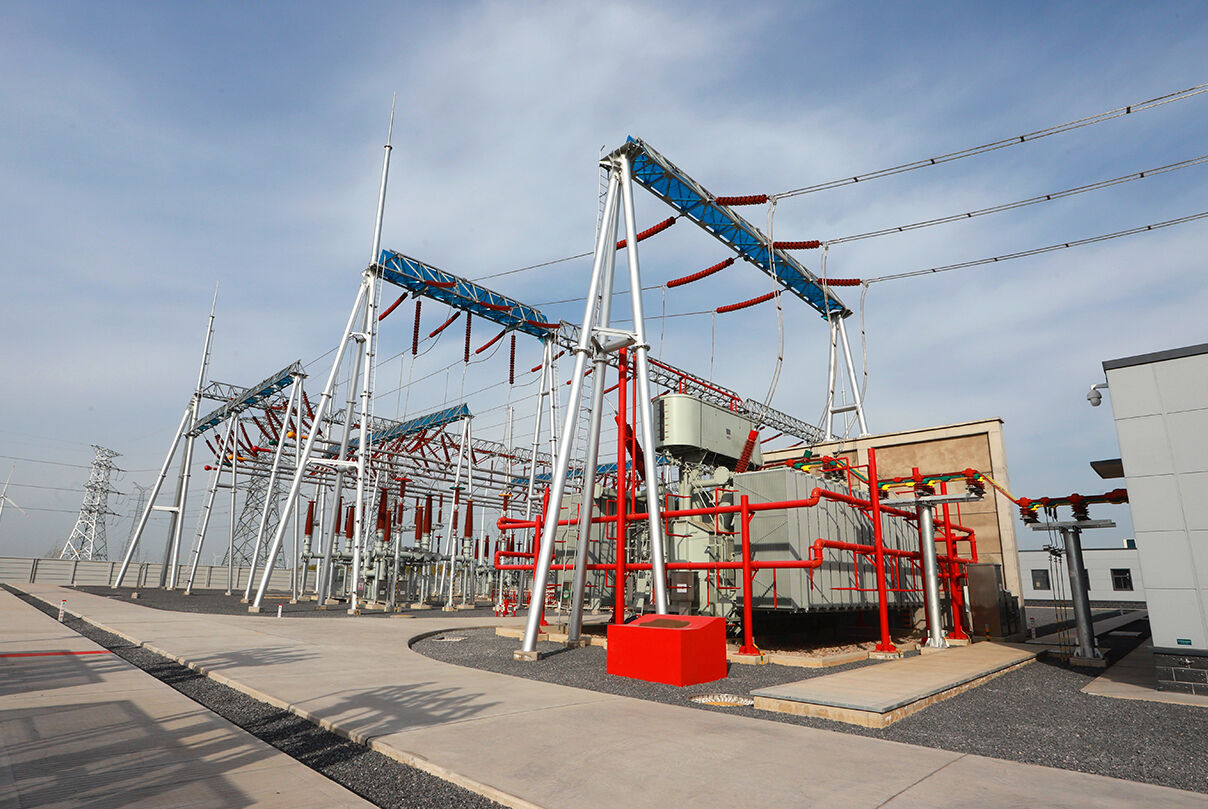

  • VD4应用场景-变电站.jpg

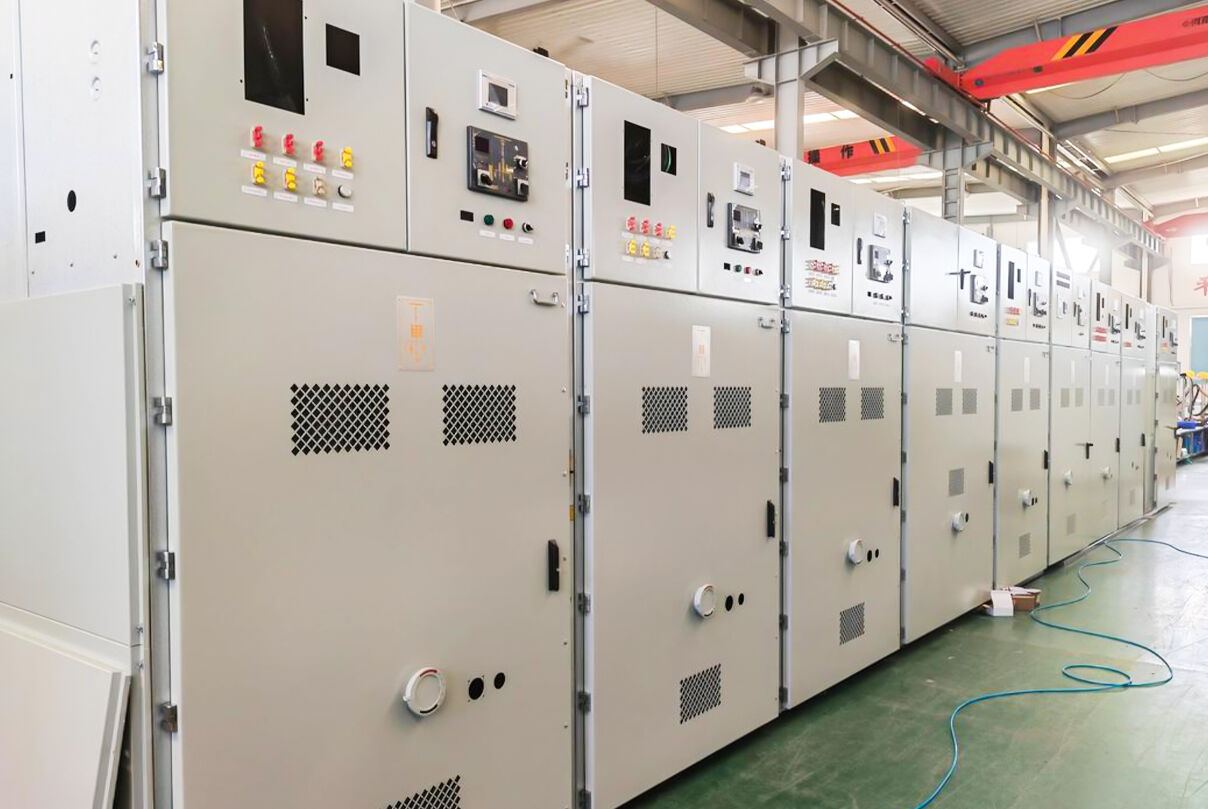

  • VD4-P-应用场景-固定式开关柜.jpg
  • VD4应用场景-船舶.jpg

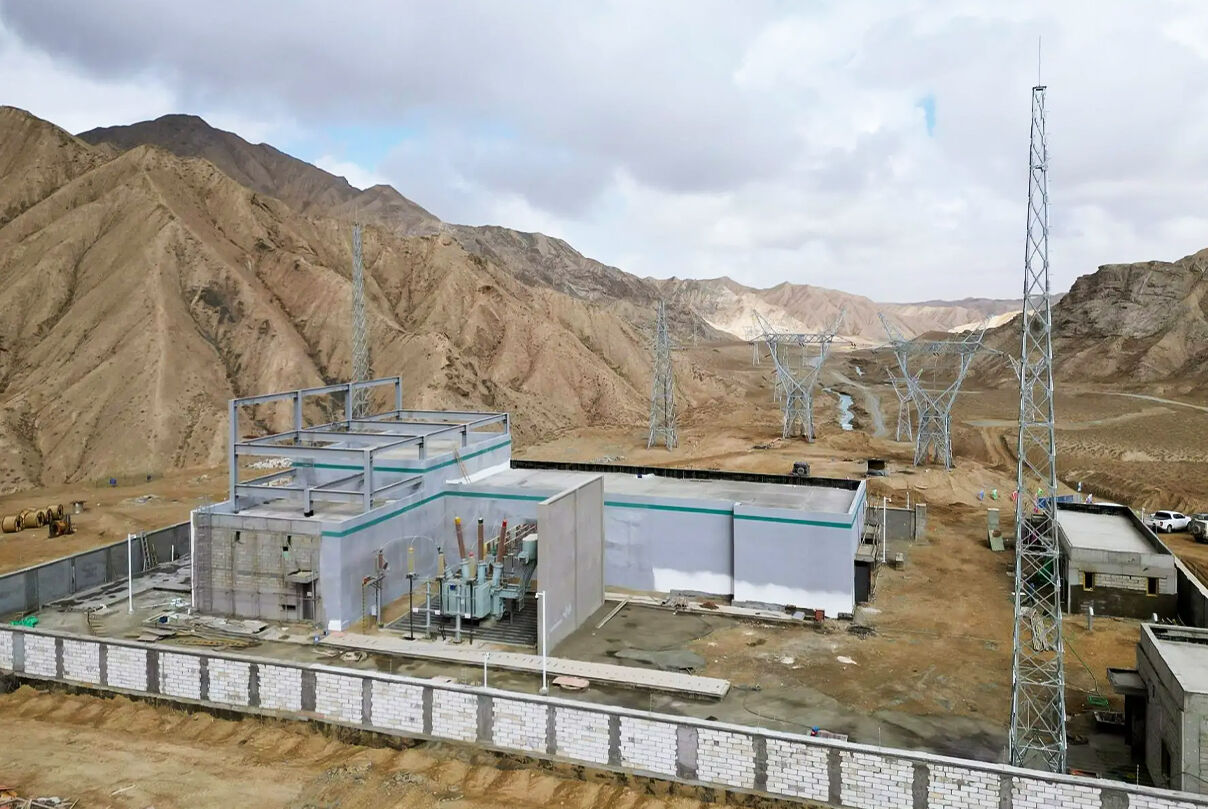

  • VD4-P-应用场景-工矿变电站.jpg

Service advantages

Return and exchange conditions
situation Is it possible to return or exchange it? Does it contain
Product quality issues Returnable ✅
Wrong model/specification sent Returnable ✅
Customer placed an order incorrectly Negotiation ✅
Customized/non-standard products Non-refundable ✅


Special services

For clients with stable partnerships and large purchasing volumes, the following service packages are available:
Services Does it contain
Dedicated safety stock ✅
Annual framework procurement ✅
Tiered bulk discounts ✅
Flexible payment terms support ✅
One-stop packaged procurement ✅
Rapid after-sales response ✅
Contact information:

FAQ

1. Who are we?

We are Wenzhou Guotuo Electric Co., Ltd., a leading partner of leading companies such as Schneider Electric, ABB, and Siemens, specializing in the sales of power distribution and industrial control products. We not only guarantee the authenticity of our products but also offer highly competitive prices.

2. Are you a distributor?

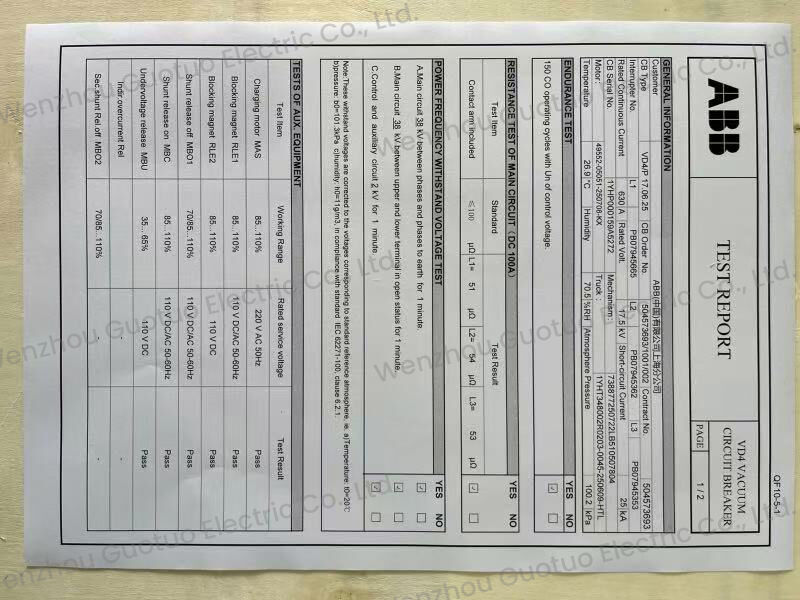

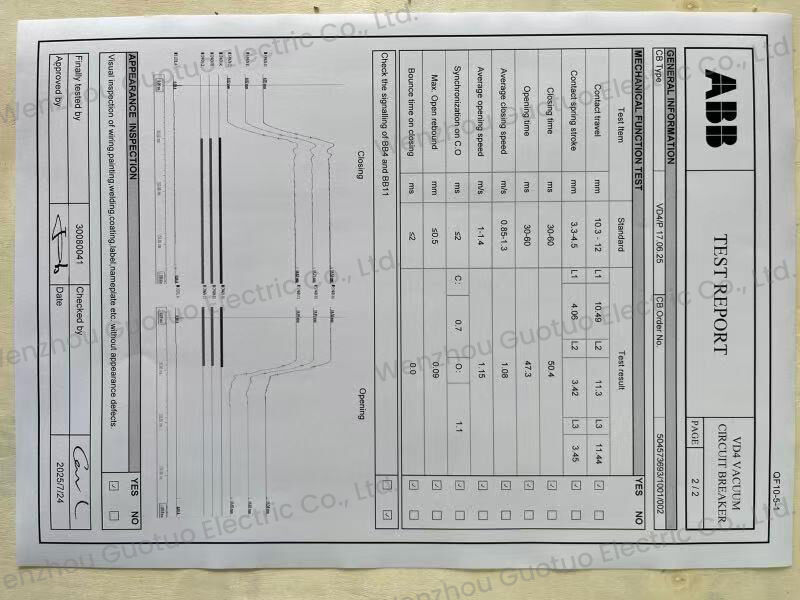

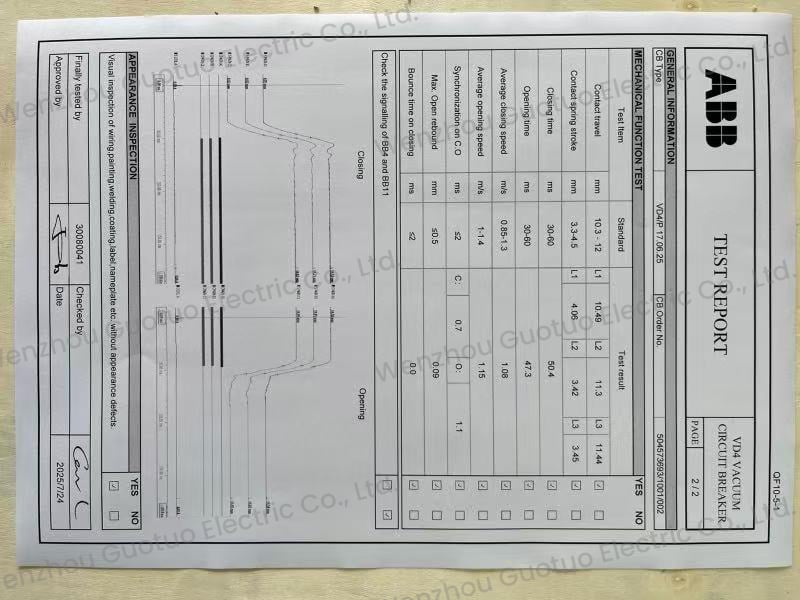

Yes, we are a distributor for Schneider Electric and ABB, and can provide proof of authenticity and certificate of origin.

3. Why should you buy from us instead of other suppliers?

Because we offer genuine products, competitive prices, and ample stock.

4. How do we ensure quality?

We provide genuine original products and offer a two-year warranty.

5. When will I receive a quote and detailed information after submitting an inquiry?

We will reply to you within 12 hours.

6. What services can we provide?

We can provide you with the following services: product consultation, product quotation, shipping quotation, answering your questions, order tracking, and after-sales service support.

Recommended Product

Get a Free Quote

Our representative will contact you soon.
Email
Name
Mobile
Company Name
Message
0/1000

Authorized distributor of Schneider & ABB. We supply genuine circuit breakers, contactors, and soft starters with expert support and competitive pricing.

Products

Contact Us

Liu Bai New Town, Liushi Town, Yueqing City, Wenjiang District, Zhejiang Province. China Electrical Appliance City, Room C6-315

+86-159 5773 6900

[email protected]

Email Subscription

Sign up to get the latest electrical solutions and company news.

Copyright © Wenzhou Guotuo Electric Co., Ltd. All Rights Reserved - Privacy Policy
