ATV320: 3C3 environmental protection + 5 safety features; ATV600: Stop&Go for 30% energy savings + embedded web server; ATV900: 180% torque increase + dual Ethernet master-slave control. Inquire now for a quote!

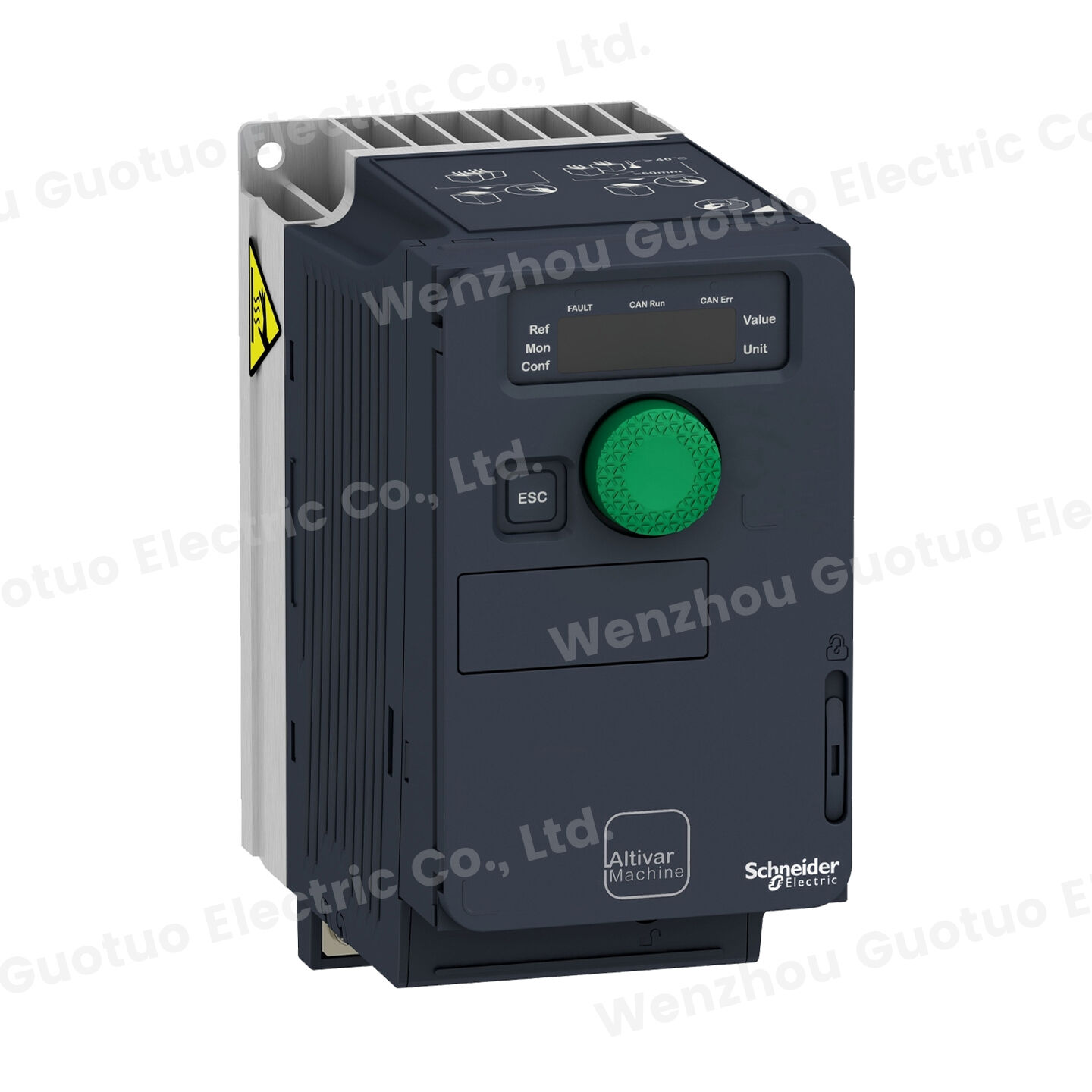

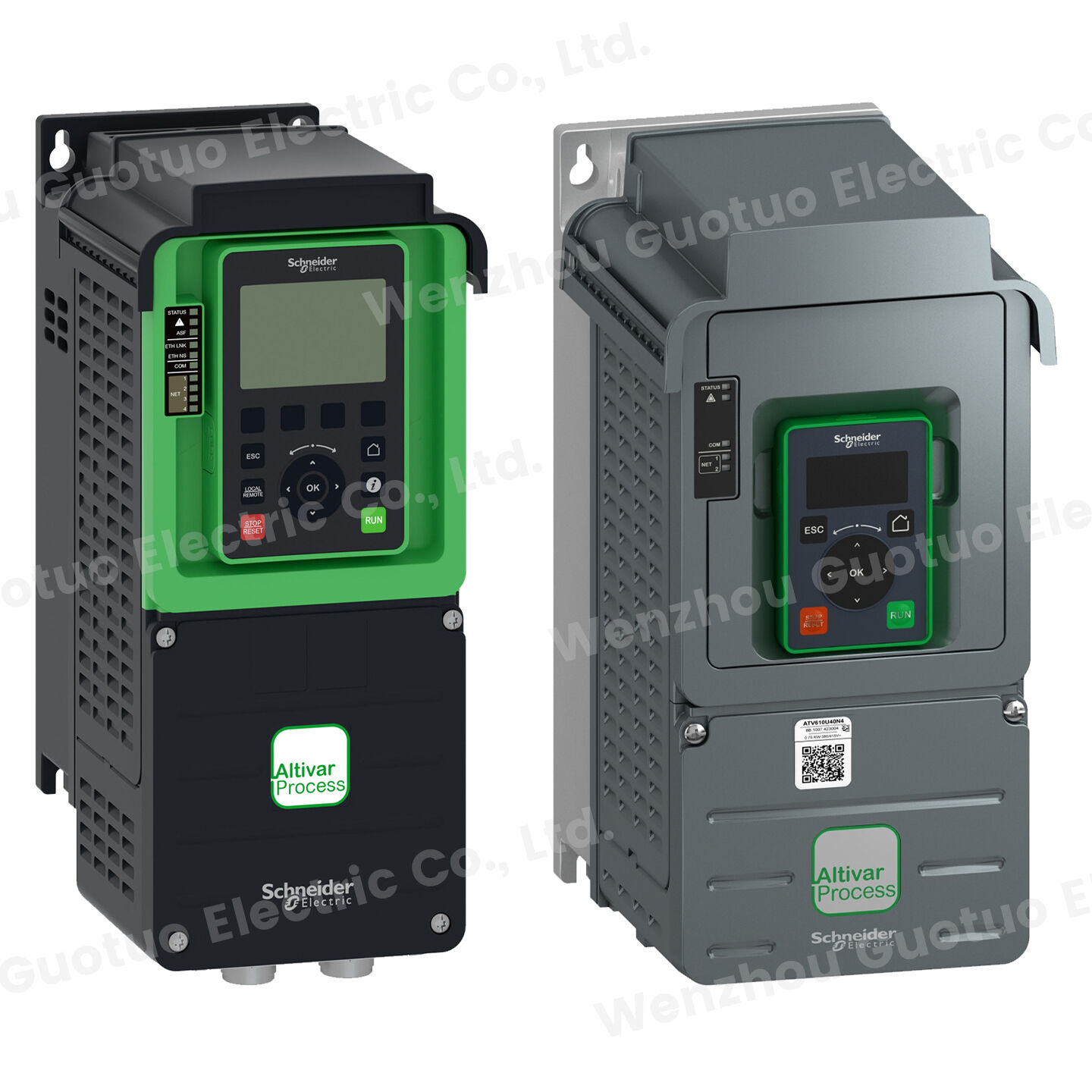

| I. Product Overview and Positioning | ||||||
| Schneider Electric's Altivar The series of frequency converters are core drive products in the fields of industrial automation and process control. Among them,ATV320, ATV600 andATV900 Specifically forMachine automationandIndustrial processesTwo major application areas have formed a clear differentiated layout. | ||||||
| 1. Altivar Machine ATV320 series:A high-performance frequency converter suitable for both simple and complex machine applications. It features a compact design and powerful functionality, specifically designed for...Original Equipment ManufacturerCustomized machine automation solutions | ||||||
| 2. Altivar Process ATV600 series:Process-oriented and utility-orientedservice-orientedInverters, focusing onFluid Management(Water pumps, fans, etc.), aiming to reduce operating costs through embedded digital services. | ||||||
| 3. Altivar Process ATV900 series:Procedural and overloaded applicationshigh performanceFrequency converters offer superior overload capacity and strong flexibility, making them suitable for the most demanding industrial environments. | ||||||
| II. Key Highlights of the Altivar Machine ATV320 Series | ||||||
| 1. Highly compact design and multiple installation options:ATV320 providescompactandBook typeTwo designs significantly save control cabinet space. The book-shaped design supports side-by-side installation, effectively optimizing machine layout. | ||||||
| 2. Strong environmental adaptability: As an industry leader, the circuit boards of ATV320 standard products all meet the requirements.IEC 60721-3-3 3C3 and3S3 Standard, coated with a reinforced protective coating, effectively resisting dust, chemical contamination, and high humidity environments, maintaining high reliability even at 60°C without derating. | ||||||
| 3. Excellent motor control performance:supportSix typesThe motor control mode can perfectly control both asynchronous motors and permanent magnet synchronous motors. It boasts high... 200%Its high torque capacity ensures strong starting torque when starting high-inertia loads or encountering impact loads. | ||||||
| 4. Integrated advanced security features:built-in5 typesSafety features, such as safety torque shutdown, safety speed limiting, and safety stop, help the machine achieve higher safety standards, simplify system design, and reduce the use of external safety components. | ||||||
| Technical Specifications | ||||||
| characteristic | Parameter Description | |||||
| Power range | 0.18 kW to 15 kW (380V-500V) | |||||
| Motor type | Three-phase asynchronous, synchronous and permanent magnet motors | |||||
| Overload capacity | Heavy-duty applications: 150%; Transient overload: up to 200%. | |||||
| Control Mode | Six types (including U/F, sensorless flux vector, closed-loop vector, etc.) | |||||
| Environmental standards | 3C3/3S3 Chemical and Dust Protection Standards | |||||
| Integrated security | STO, SLS, SS1, SMS, GDL security features | |||||
| Communication Protocol | Supports more than 9 mainstream buses (EtherNet/IP, PROFINET, CANopen, Profibus, etc.) | |||||
| Typical applications: The ATV320 is designed for demanding industrial machinery and is especially suitable for...Packaging, material handling, textiles, lifting, and material processingandmechanical actuatorfields | ||||||
| Model description: ATV320[③][④][⑤][⑥]. | ||||||
| For example, let's disassemble the ATV320U22N4C model: | ||||||
| ①ATV stands for Schneider Electric's Altivar frequency converter product line. ②320: Represents the ATV320 product series. ③ U: Indicates the power range. U represents power less than 10kW, and D represents power greater than or equal to 10kW. ④22: Indicates motor power. This number corresponds to a power of 2.2kW.⑤N4: Indicates the supply voltage. N4 represents three-phase 380...500V AC.⑥C: Indicates product specifications, i.e. physical form. C represents compact type, and B represents book type. | ||||||
| ATV320 Main Model Quick Reference Table | ||||||
| Power (kW) | Single-phase 200-240V (M2) | Three-phase 200-240V (M3) | Three-phase 380-500V (N4) | Three-phase 525-600V (S6) | ||
| 0.18 | ATV320U02M2C | ATV320U02M3C | — | — | ||
| 0.37 | ATV320U04M2C | ATV320U04M3C | — | — | ||
| 0.55 | ATV320U06M2C | ATV320U06M3C | — | — | ||
| 0.75 | ATV320U07M2C | ATV320U07M3C | ATV320U07N4B/C | ATV320U07S6C | ||
| 1.1 | ATV320U11M2C | ATV320U11M3C | ATV320U11N4C | — | ||
| 1.5 | ATV320U15M2C | ATV320U15M3C | ATV320U15N4C | — | ||
| 2.2 | ATV320U22M2C | ATV320U22M3C | ATV320U22N4C | — | ||
| 3 | — | ATV320U30M3C | — | — | ||
| 4 | — | ATV320U40M3C | ATV320U40N4B/C | — | ||
| 5.5 | — | ATV320U55M3C | ATV320U55N4B/C | — | ||
| 7.5 | — | ATV320U75M3C | ATV320U75N4B/C | — | ||
| 11 | — | ATV320D11M3C | ATV320D11N4B | ATV320D11S6C | ||
| 15 | — | ATV320D15M3C | ATV320D15N4B | — | ||
| III. Key Highlights of the Altivar Process ATV600 Series | ||||||
| 1. Service-oriented driver:AsThe world's firstThe ATV600 is a service-oriented frequency converter with powerful embedded digital services. It helps users achieve...Up to 20% Downtime is reduced, and total cost of ownership is significantly lowered. | ||||||
| 2. Embedded energy management and monitoring:No additional instruments are needed; the ATV600 is sufficient.Precise measurement of electrical energyAnd through the built-inEnergy DashboardIt displays real-time energy consumption trends. Its web server functionality allows users to access this data anytime, anywhere via PC, tablet, or smartphone. | ||||||
| 3. Optimized fluid management functions:built-in5-point adjustable pump curveIt also features anti-clogging capabilities, preventing pump damage under low flow or dry running conditions and effectively preventing unplanned shutdowns. | ||||||
| 4. Excellent harmonic suppression and energy saving:The standard version can achieve a total harmonic distortion as low as [value missing] at 80% load.48%With the low harmonic option, THDi can be reduced to5% The "start/stop" function optimizes power consumption in standby mode, significantly saving energy. | ||||||
| Technical Specifications | ||||||
| characteristic | Parameter Description | |||||
| Power range | 0.75 kW to 315 kW (customized cabinet units are also available) | |||||
| Overload capacity | Light-duty applications: 120% embedded energy measurement, embedded web server, pump curve adaptation | |||||
| Main functions | Embedded energy measurement, embedded web server, pump curve adaptive | |||||
| Harmonic suppression | Standard THDi <48%; Optional THDi <5% | |||||
| Environmental tolerance | Standard configuration includes 3C3 and 3S3 harsh environment certifications; operating temperature range: -15℃ to 50℃ without capacity degradation. | |||||
| Communication Protocol | Integrated dual-port industrial Ethernet, supporting Modbus TCP, EtherNet/IP, etc. | |||||
| Typical Applications: The ATV600 is an expert in the field of fluid handling, particularly suitable for...Water treatment plants, seawater desalination plants, pumping stations, booster stations, building HVAC systemsas well asOil and gasPump control applications in the industry | ||||||
| Model description: ATV610[③][④][⑤][⑥]. | ||||||
| For example, let's disassemble the ATV320U22N4C model: | ||||||
| ①ATV stands for Schneider Electric's Altivar frequency converter product line.②610: The representative product series is Altivar 610. ③Power rating designation: U represents less than 11kW; D represents greater than or equal to 11kW; C represents high power (110kW and above).④Power rating: Two digits represent the motor power (e.g., 22 represents 2.2kW, 15 represents 15kW). ⑤ Voltage rating: N4 represents three-phase 380V, which is also the most common type in this series. ⑥Optional suffix: Z means "without control panel", and the last letter of some models has other specific meanings. | ||||||
| Model description: ATV630[③][④][⑤]. | ||||||
| Taking model ATV630U22N4 as an example | ||||||
| ①ATV stands for Schneider Electric's Altivar frequency converter product line.② 630: Represents the ATV630 series, which belongs to the Altivar Process series. ③U: Represents the power rating. U represents less than or equal to 7.5kW, D represents 11kW to 90kW, and C represents 110kW and above.④22: Represents motor power (unit: kW). Here, "22" represents 2.2kW. ⑤N4: Represents the supply voltage. N4 represents three-phase 380...480V. | ||||||
| ATV610 Main Model Quick Reference Table | ATV630 Main Model Quick Reference Table | |||||
| Power (kW) | Model (380-460V, Three-phase) | Power (kW) | Model (380-480V, three-phase) | |||
| 0.75 | ATV610U07N4 | 0.75 | ATV630U07N4 | |||
| 1.5 | ATV610U15N4 | 1.5 | ATV630U15N4 | |||
| 2.2 | ATV610U22N4 | 2.2 | ATV630U22N4 | |||
| 3 | ATV610U30N4 | 3 | ATV630U30N4 | |||
| 4 | ATV610U40N4 | 4 | ATV630U40N4 | |||
| 5.5 | ATV610U55N4 | 5.5 | ATV630U55N4 | |||
| 7.5 | ATV610U75N4 | 7.5 | ATV630U75N4 | |||
| 11 | ATV610D11N4 | 11 | ATV630D11N4 | |||
| 15 | ATV610D15N4 | 15 | ATV630D15N4 | |||
| 18.5 | ATV610D18N4 | 18.5 | ATV630D18N4 | |||
| 22 | ATV610D22N4 | 22 | ATV630D22N4 | |||
| 30 | ATV610D30N4 | 30 | ATV630D30N4 | |||
| 37 | ATV610D37N4 | 37 | ATV630D37N4 | |||
| 45 | ATV610D45N4 | 45 | ATV630D45N4 | |||
| 55 | ATV610D55N4 | 55 | ATV630D55N4 | |||
| 75 | ATV610D75N4 | 75 | ATV630D75N4 | |||
| 90 | ATV610D90N4 | 90 | ATV630D90N4 | |||
| 110 | ATV610C11N4 | 110 | ATV630C11N4 | |||
| 132 | ATV610C13N4 | 132 | ATV630C13N4 | |||
| 160 | ATV610C16N4 | 160 | ATV630C16N4 | |||
| 220 | ATV630C22N4 | |||||
| 250 | ATV630C25N4 | |||||
| 315 | ATV630C31N4 | |||||

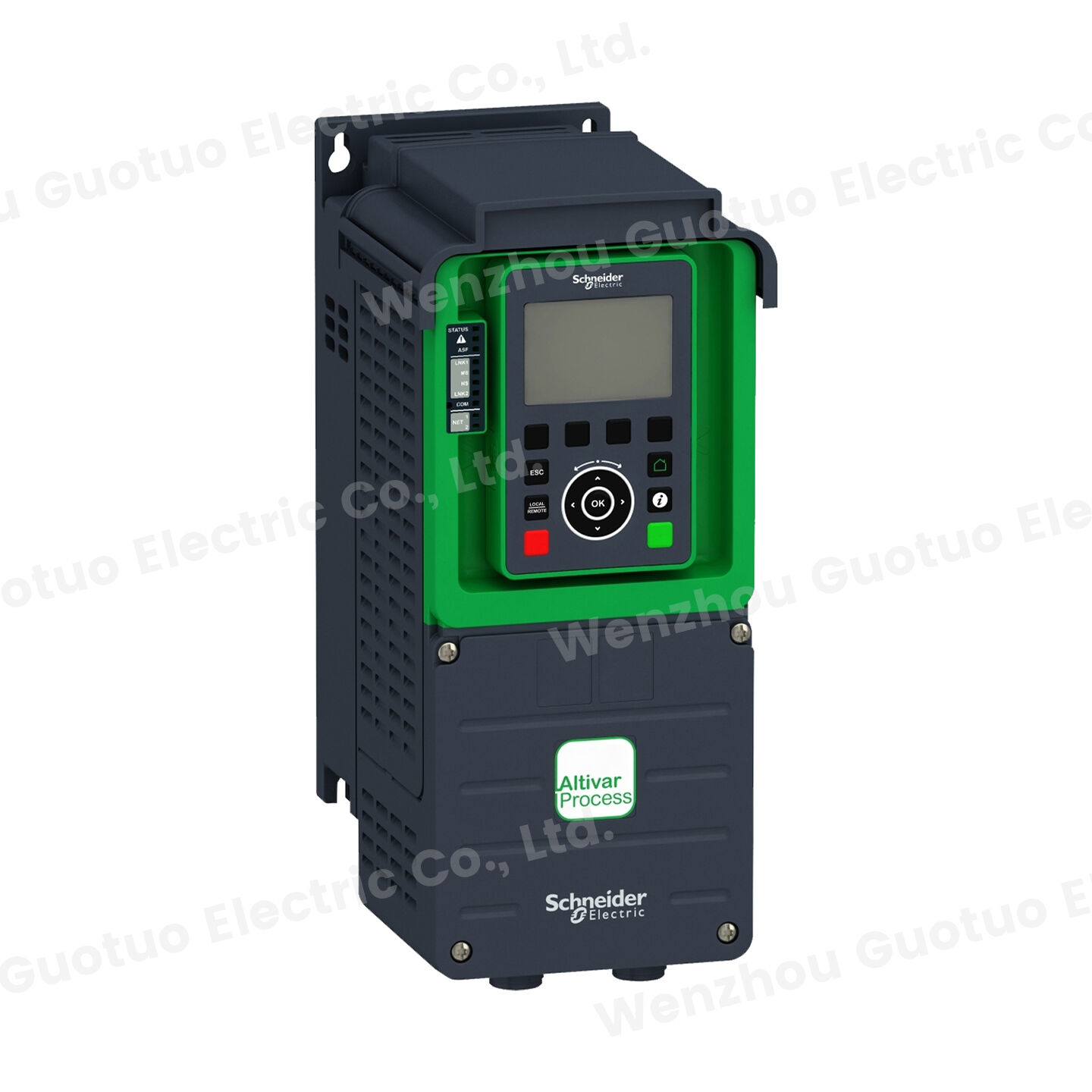

| IV. Key Highlights of the Altivar Process ATV900 Series | ||||||
| 1. Strong overload capacity and flexibility:The ATV900 offers excellent overload capacity, making it ideal for light-load applications.120%Heavy-duty applications up to150%Its transient over-torque capability even reaches180%It can easily cope with the starting and running impacts of high inertia loads such as crushers and extruders. | ||||||
| 2. Integrated high-end configuration and user-friendly interaction: standard configurationDC reactors andChinese Advanced Graphics Display TerminalThis terminal has an IP65 protection rating and supports parameter copying and Mini-USB data transfer. By scanning the dynamic QR code generated on the screen, users can instantly obtain troubleshooting solutions, greatly simplifying maintenance. | ||||||
| 3. Powerful integrated control and communication capabilities:built-inDual-port EthernetSupports multiple network topologies, with response times as low as [missing information].1msIts integrated web server not only allows for real-time monitoring but also remote operation. Built-in...PLCIts functionality enables it to handle complex logic control. | ||||||
| 4. Master of adapting to harsh environments:Like the ATV600, the ATV900 comes standard with3C3, 3S3Harsh environment certification, can-15℃ to 50℃It can operate at full load under various temperatures and at altitudes up to 4800 meters, making it suitable for a wide range of extreme geographical and climatic conditions. | ||||||
| Technical Specifications | ||||||
| characteristic | Parameter Description | |||||
| Power range | 0.75 kW to 1500 kW (covering standard stand-alone units and engineering cabinet units) | |||||
| Overload capacity | Heavy load: 150%; Transient over-torque: 180% | |||||
| Environmental tolerance | Standard configuration includes 3C3 and 3S3, with no capacity degradation at operating temperatures from -15℃ to 50℃. | |||||
| Human-computer interface | Standard configuration includes an IP65-rated advanced Chinese graphical panel, supporting QR code-based fault diagnosis. | |||||
| Advanced features | Integrated Web server, built-in PLC function, master-slave control (1 master and 10 slaves) | |||||
| Communication Protocol | Integrated dual-port industrial Ethernet with a response time of 1ms | |||||
| Typical Applications: The ATV600 is an expert in the field of fluid handling, particularly suitable for...Water treatment plants, seawater desalination plants, pumping stations, booster stations, building HVAC systemsas well asOil and gasPump control applications in the industry | ||||||
| Model description: ATV930[③][④][⑤][⑥]. | ||||||
| Taking model ATV930D15N4 as an example | ||||||
| ①ATV: Schneider Altivar frequency converter product series.②930: ATV930 series, belonging to the Altivar Process 900 series. ③D: Power rating. U represents 7.5kW or less, D represents 11kW to 90kW, and C represents 110kW and above.④15: Motor power, in kW. Here, "15" represents 15kW. ⑤ N4: Supply voltage. N4 represents three-phase 380...480V, Y6 represents three-phase 500...690V, and M3 represents three-phase 200...240V. ⑥C/F: Product specifications (optional). C indicates without braking unit, F indicates cabinet mounting (vertical). | ||||||
| ATV930 Main Model Quick Reference Table | ||||||
| Power (kW) | Standard load model (usually includes a braking unit) | Model without brake unit (suffix)C) | Cabinet installation model (suffix)F) | |||
| 0.75 | ATV930U07N4 | - | - | |||
| 1.5 | ATV930U15N4 | - | - | |||
| 2.2 | ATV930U22N4 | - | - | |||
| 3 | ATV930U30N4 | - | - | |||
| 4 | ATV930U40N4 | - | - | |||
| 5.5 | ATV930U55N4 | - | - | |||
| 7.5 | ATV930U75N4 | - | - | |||
| 11 | ATV930D11N4 | ATV930C11N4C | ATV930C11N4F | |||
| 15 | ATV930D15N4 | - | - | |||
| 18.5 | ATV930D18N4 | - | - | |||
| 22 | ATV930D22N4 | - | - | |||
| 30 | ATV930D30N4 | - | - | |||
| 37 | ATV930D37N4 | - | - | |||
| 45 | ATV930D45N4 | - | - | |||
| 55 | ATV930D55N4 | ATV930D55N4C | - | |||
| 75 | ATV930D75N4 | ATV930D75N4C | - | |||
| 90 | ATV930D90N4 | ATV930D90N4C | - | |||
| 110 | - | ATV930C11N4C | ATV930C11N4F | |||
| 132 | - | ATV930C13N4C | ATV930C13N4F | |||
| 160 | - | ATV930C16N4C | ATV930C16N4F | |||
| 200 | - | ATV930C20N4F | - | |||
| 220 | - | ATV930C22N4F | - | |||
| 250 | - | ATV930C25N4F | - | |||
| 315 | - | ATV930C31N4F | - | |||
| Selection Summary | ||||||
| Your needs | Recommended Series | Core reason | ||||
| Machine automation requires flexible installation and robust communication solutions due to limited control cabinet space. | Altivar Machine ATV320 | Book-shaped/compact design, 6 control modes, and excellent environmental tolerance. | ||||
| Fluid management for pumps, fans, and other equipment requires monitoring energy consumption and optimizing operating costs. | Altivar Process ATV600 | Embedded energy dashboard and pump curve expert algorithm can reduce downtime by 20%. | ||||
| Heavy-duty processes in metallurgy, mining, and other industries require high overload capacity and integrated high-end configurations. | Altivar Process ATV900 | 180% over-torque capacity, standard graphic terminal and DC reactor, adaptable to harsh environments. | ||||

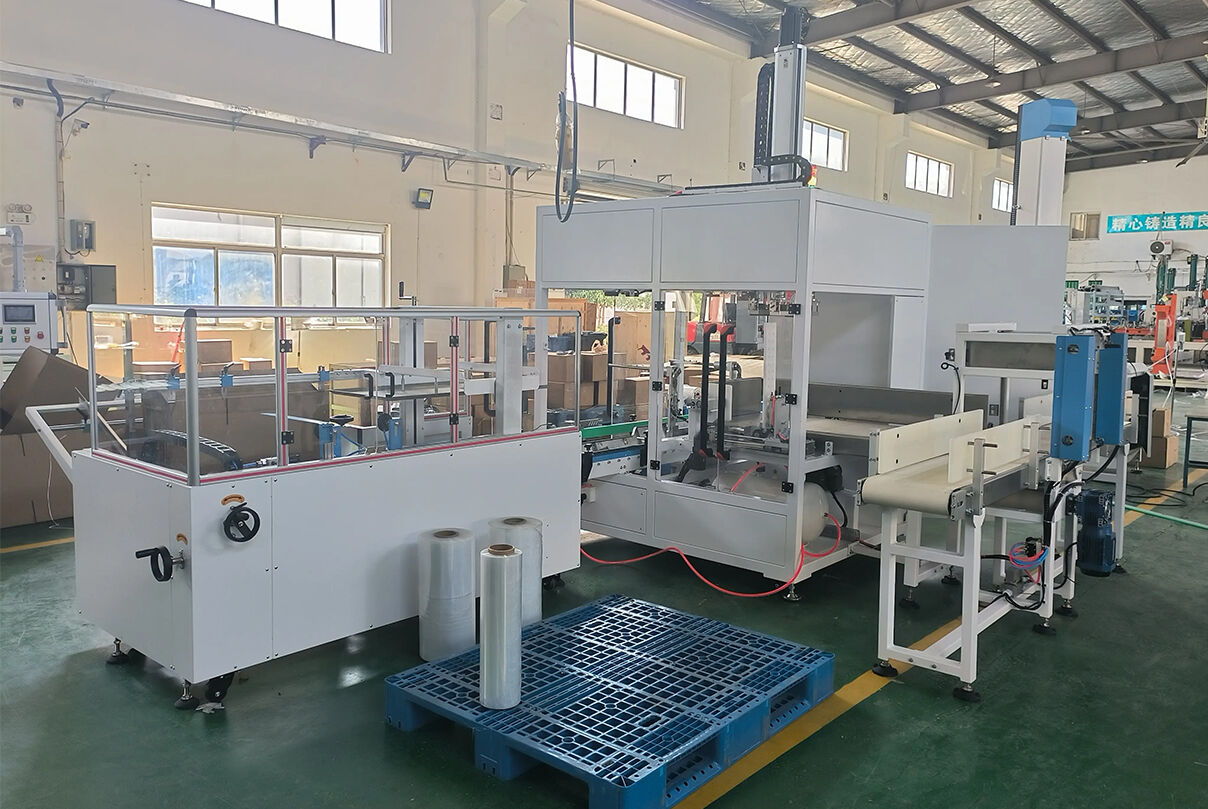

Scene 1: Packaging Machinery
High-speed, high-precision positioning:Sensorless flux vector control provides torque and speed accuracy at extremely low speeds, ensuring positioning accuracy in processes such as labeling and filling.
Compact installation saves space:The book-shaped design allows for seamless side-by-side installation, greatly saving control cabinet space and making it suitable for layouts with limited internal space in packaging machinery.
Rapid debugging shortens time to market:Reduce engineering and design time through unified configuration via the SoMachine software platform.
Extended frequency range:Supports high-speed motor operation to meet the needs of high-speed packaging equipment.

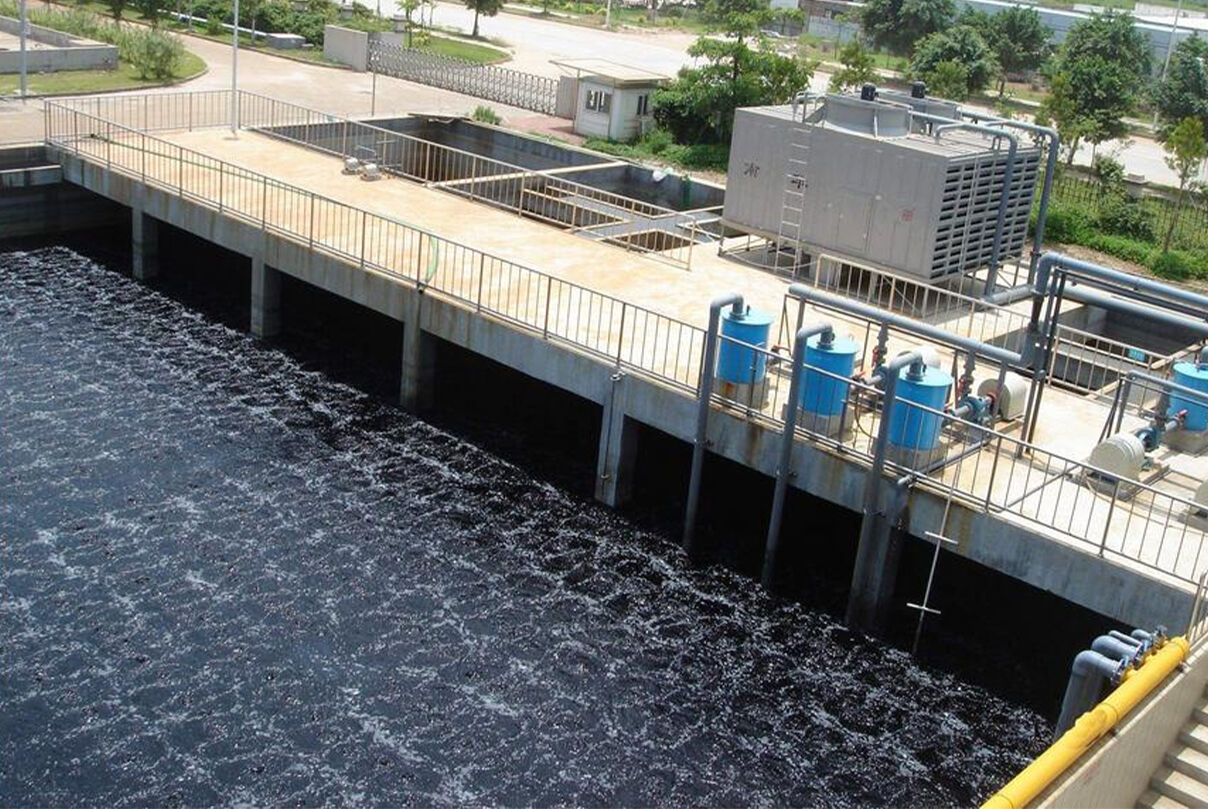

Scenario 2: Water and Wastewater Treatment
Predictive maintenance reduces downtime:Altivar Predict technology uses embedded algorithms to monitor pump cavitation, dry running, blockage, and other faults, reducing unplanned downtime by up to 20%.
Anti-clogging function:Built-in Anti-Jam function prevents pump damage from low flow or dry running, avoiding downtime due to blockage.
Energy consumption optimization:With precise power measurement and an energy consumption dashboard, energy consumption can be optimized and reduced by up to 30%.
Embedded pump curve:Five pump curves can be set, making it easy to configure operating parameters under different working conditions.
Remote monitoring capability:Embedded web servers allow access to energy consumption data and customized dashboards anytime, anywhere via PCs, tablets, or smartphones.

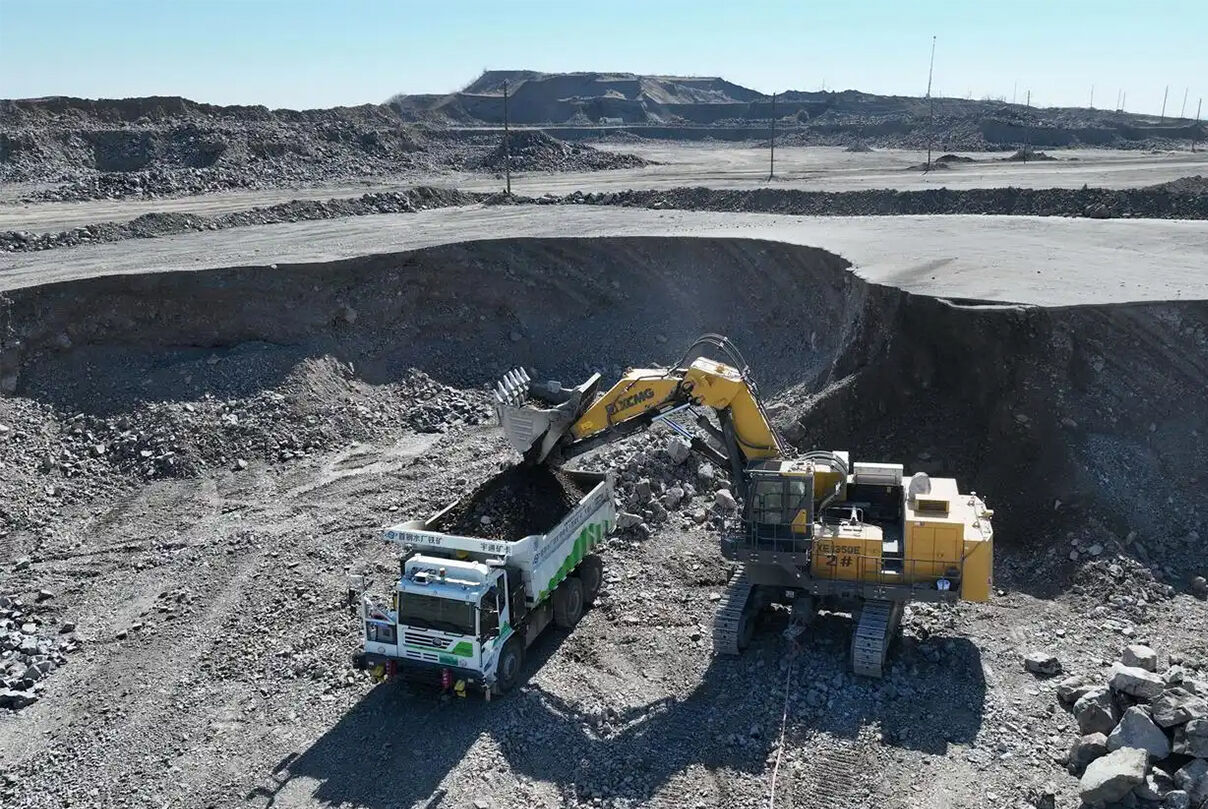

Scene 3: Mining and Metallurgy
Survival ability in extreme environments:Standard configuration includes 3C3/3S3 harsh environment certification, capable of full-load operation from -15°C to 50°C, and reliable operation at a depth of 1400 meters underground.
Master-slave load sharing: 1 master unit drives 10 slave units with a response time of only 4ms, suitable for long conveyor belts driven by multiple motors.
180% over-torque capacity: capable of handling the starting and running shocks of high-inertia loads such as crushers and extruders.
Predictive maintenance: By monitoring equipment operating status and recording motor start-stop cycles, it extends equipment life and reduces operating costs.
Four-quadrant operation capability: Braking energy feedback rate >97%, suitable for scenarios requiring frequent braking, such as mine hoists.
| Return and exchange conditions | ||||||
| situation | Is it possible to return or exchange it? | Does it contain | ||||
| Product quality issues | Returnable | ✅ | ||||
| Wrong model/specification sent | Returnable | ✅ | ||||
| Customer placed an order incorrectly | Negotiation | ✅ | ||||
| Customized/non-standard products | Non-refundable | ✅ | ||||
| For clients with stable partnerships and large purchasing volumes, the following service packages are available: | ||||||
| Services | Does it contain | |||||
| Dedicated safety stock | ✅ | |||||
| Annual framework procurement | ✅ | |||||
| Tiered bulk discounts | ✅ | |||||
| Flexible payment terms support | ✅ | |||||
| One-stop packaged procurement | ✅ | |||||
| Rapid after-sales response | ✅ | |||||
