Built-in bypass + Modbus integration reduces electrical failure rate by 60%. Contact us now for a quote!
| ABB inverters are a well-known brand of inverters developed, manufactured, and sold by the ABB Group. They are mainly used to control and regulate the speed of three-phase AC asynchronous motors. With their stable performance, rich combination functions, high-performance vector control technology, low-speed high-torque output, excellent dynamic characteristics, and superior overload capacity, ABB inverters occupy an important position in the global inverter market. | ||||||||
| Series Overview Comparison | ||||||||
| series | Core positioning | Power range | Core technologies/features | Typical applications | ||||

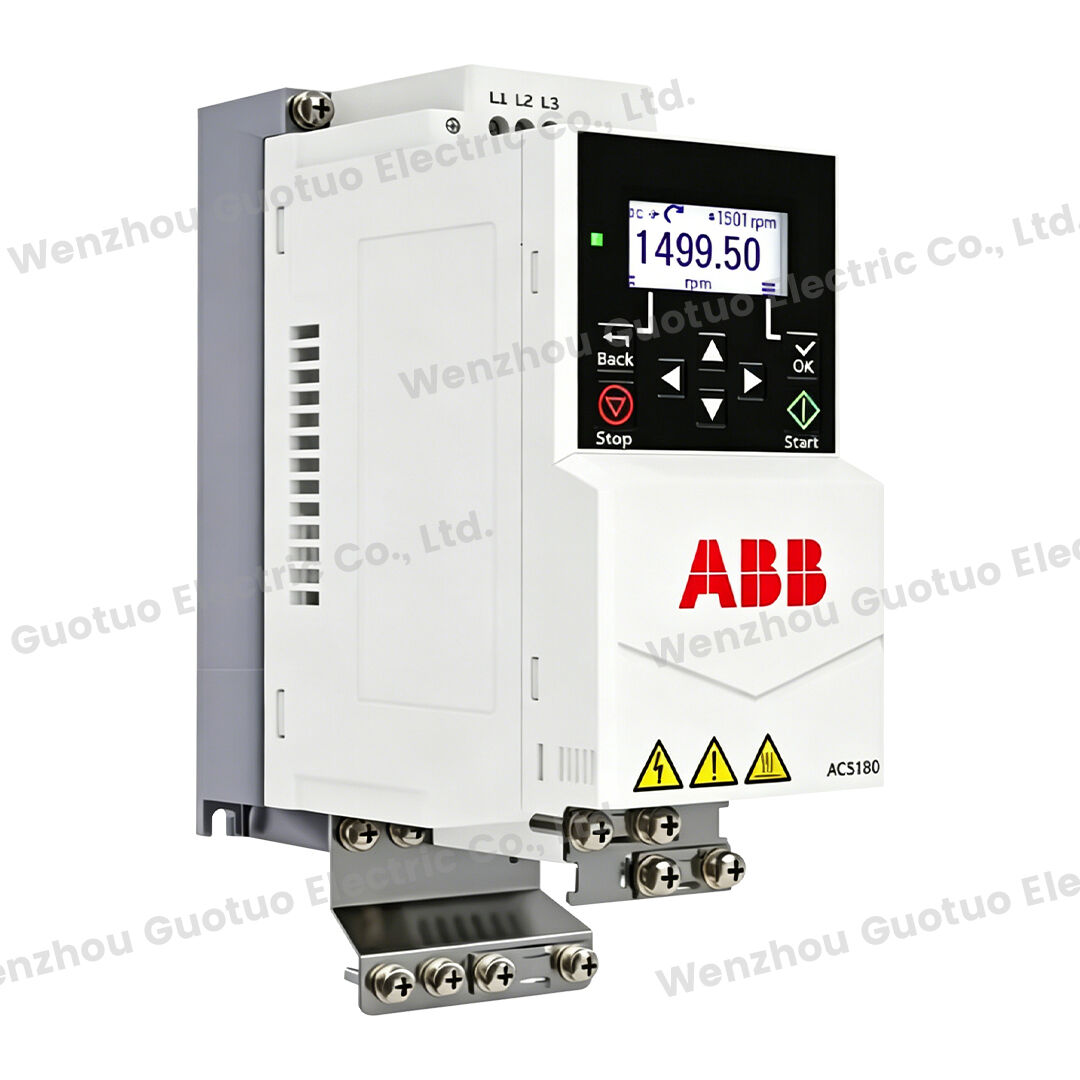

| ACS180 | compact economyHigh cost performance and compact size | 0.75~30kW | IGBT7 technology, high power density, side-by-side installation, no derating at 50°C | Dispensing machine, cutting machine, laser marking machine, small conveyor | ||||

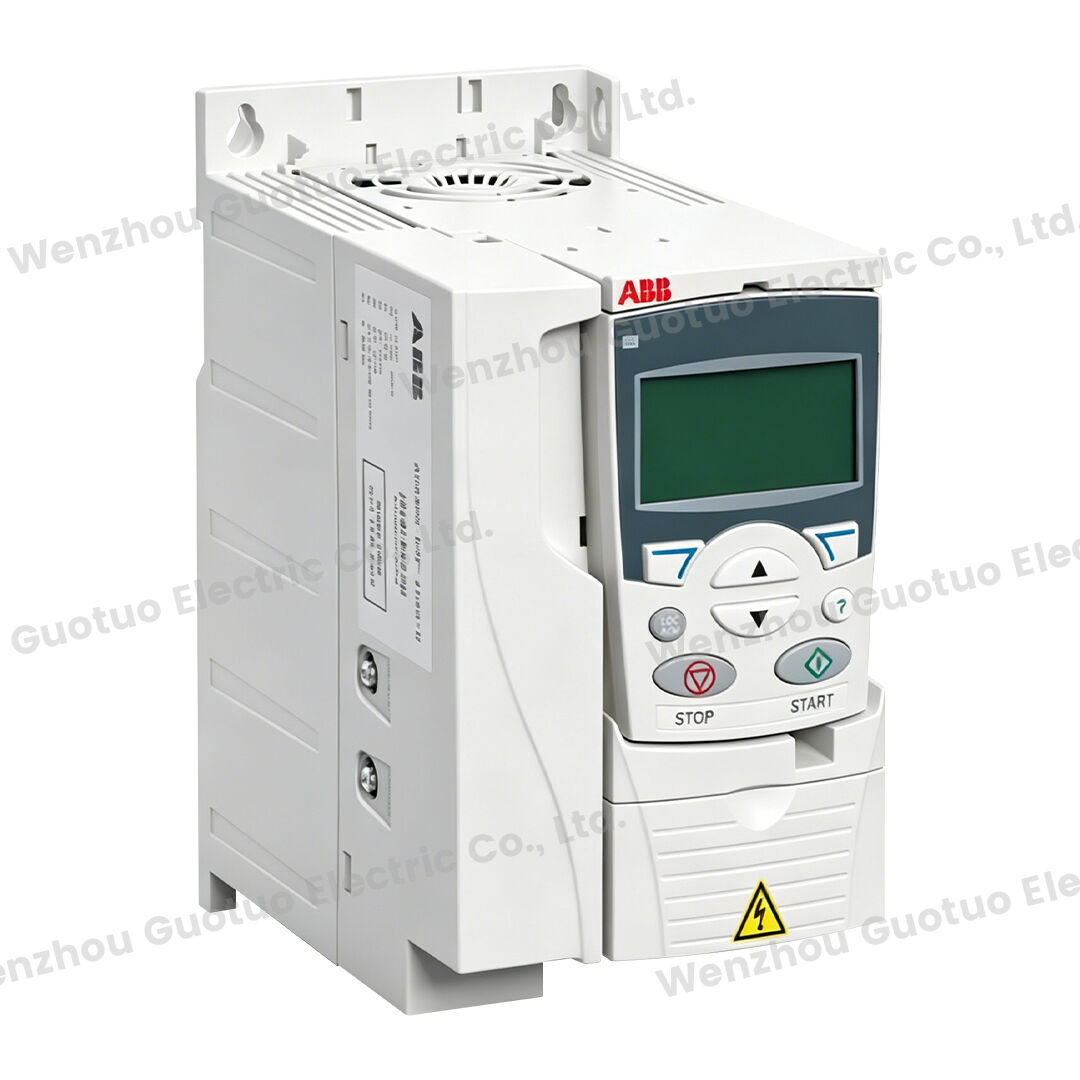

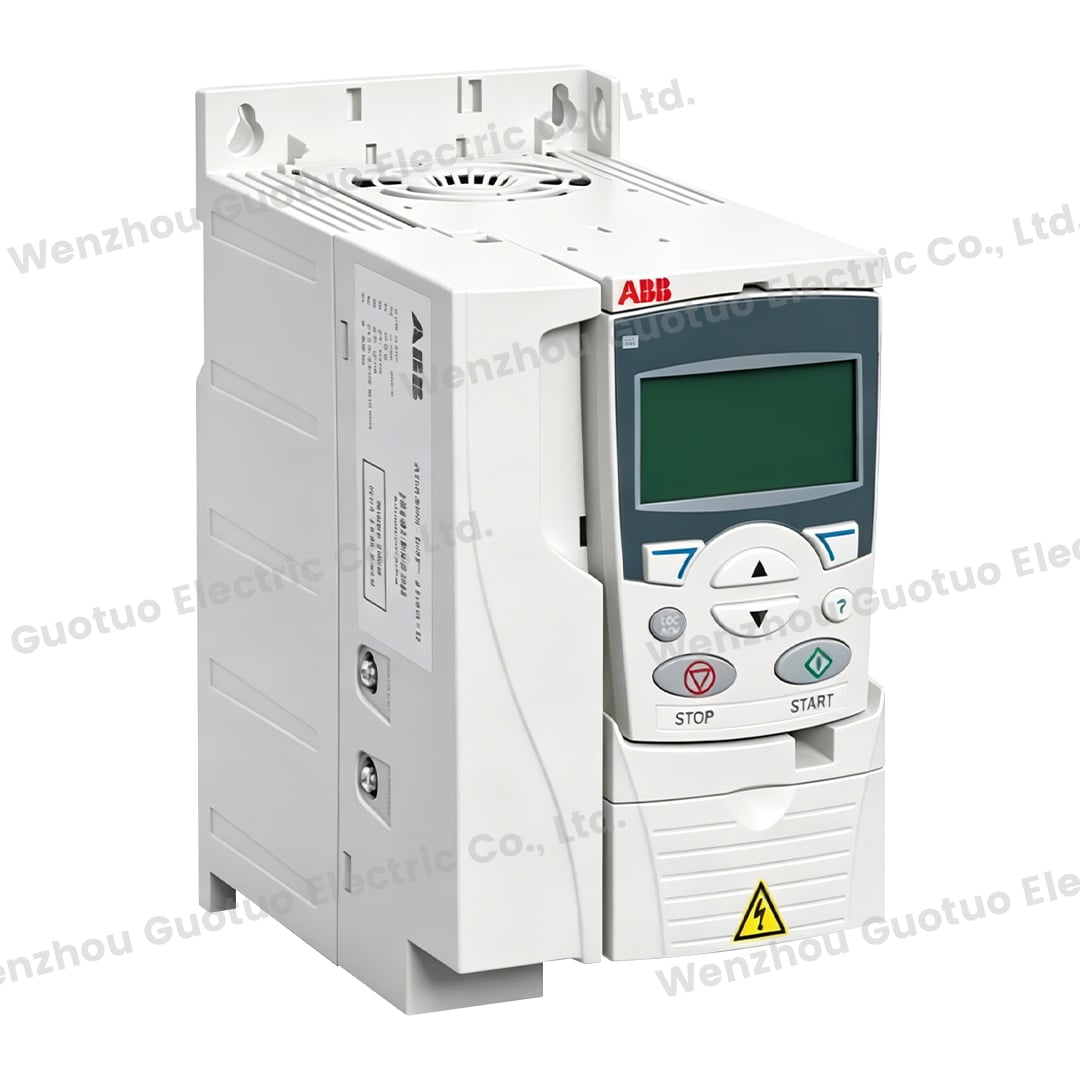

| ACS355 | High-grade micro transmission | 0.37~22kW | Vector control, sequential programming, IP66/67 high protection optional. | Material handling, food and beverage, wood processing | ||||

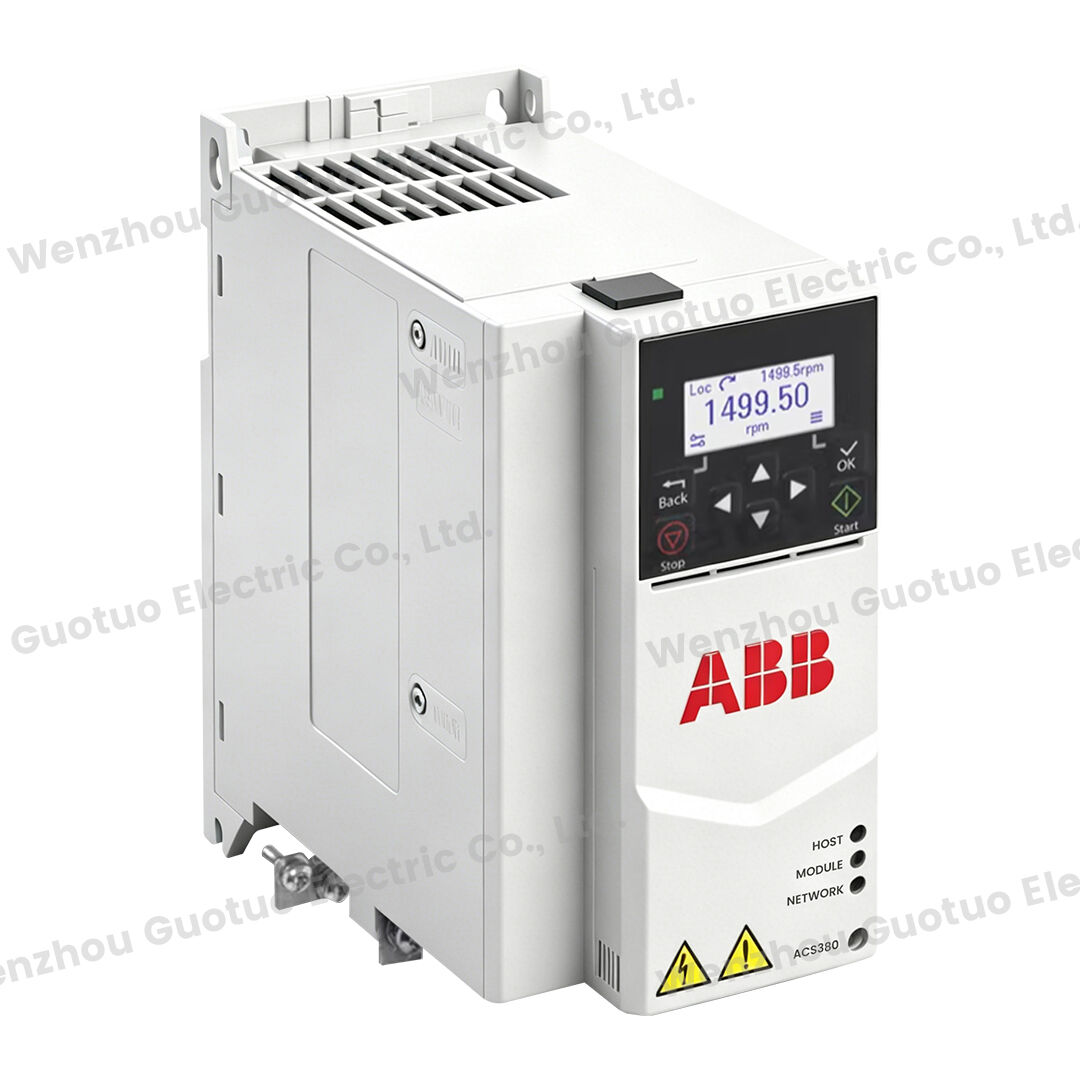

| ACS380 | Machine type transmissionTargeting OEM equipment manufacturers | 0.55~22kW | High-speed communication (EtherCAT), side-by-side installation, high dynamic response, supports servo motors | Packaging, printing, logistics and warehousing, food and beverage | ||||

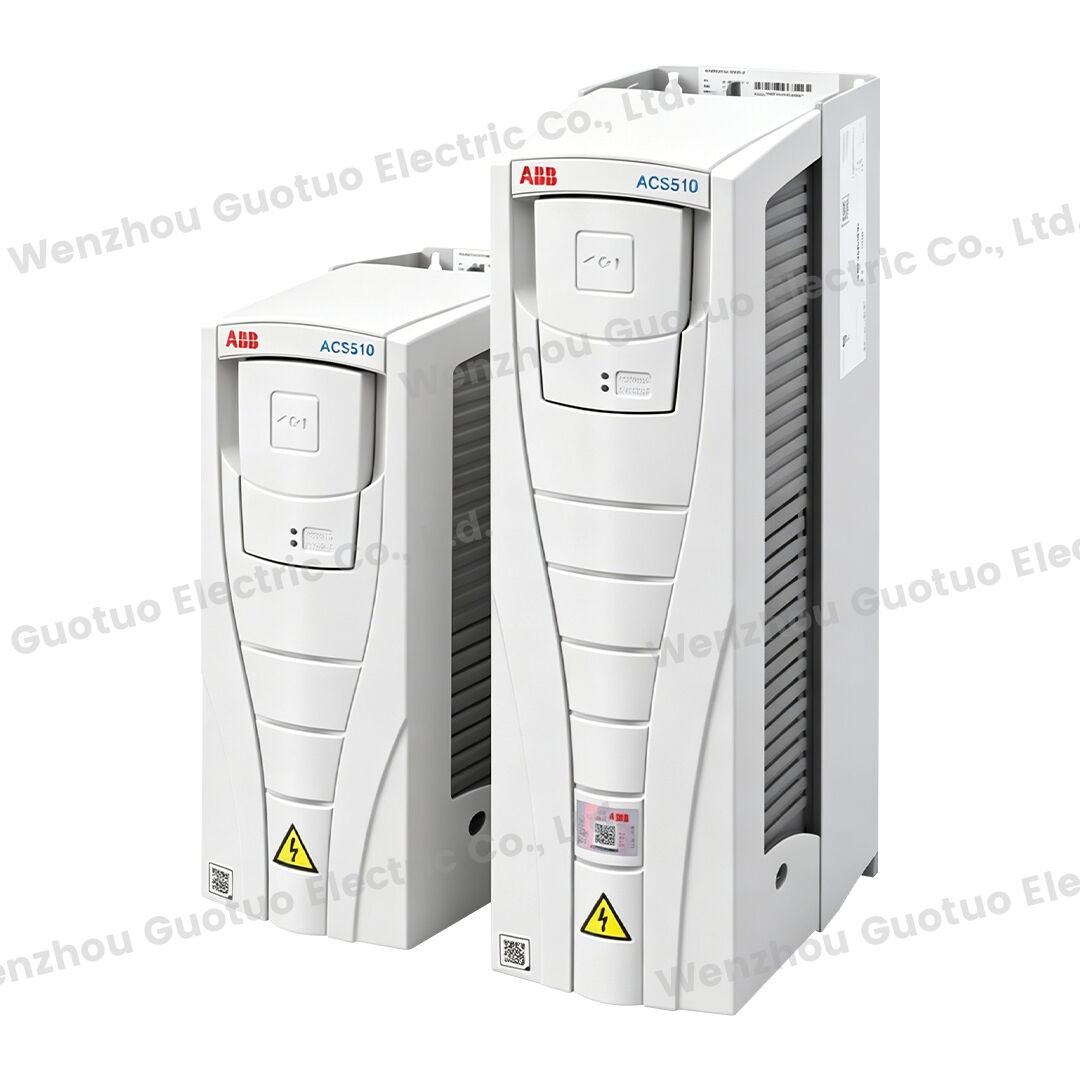

| ACS510 | Specialized for fans and water pumps | 1.1~160kW | Enhanced PFC (up to 7 pumps controlled), built-in PID, variable inductance reactor | Constant pressure water supply, cooling fans, tunnel ventilation | ||||

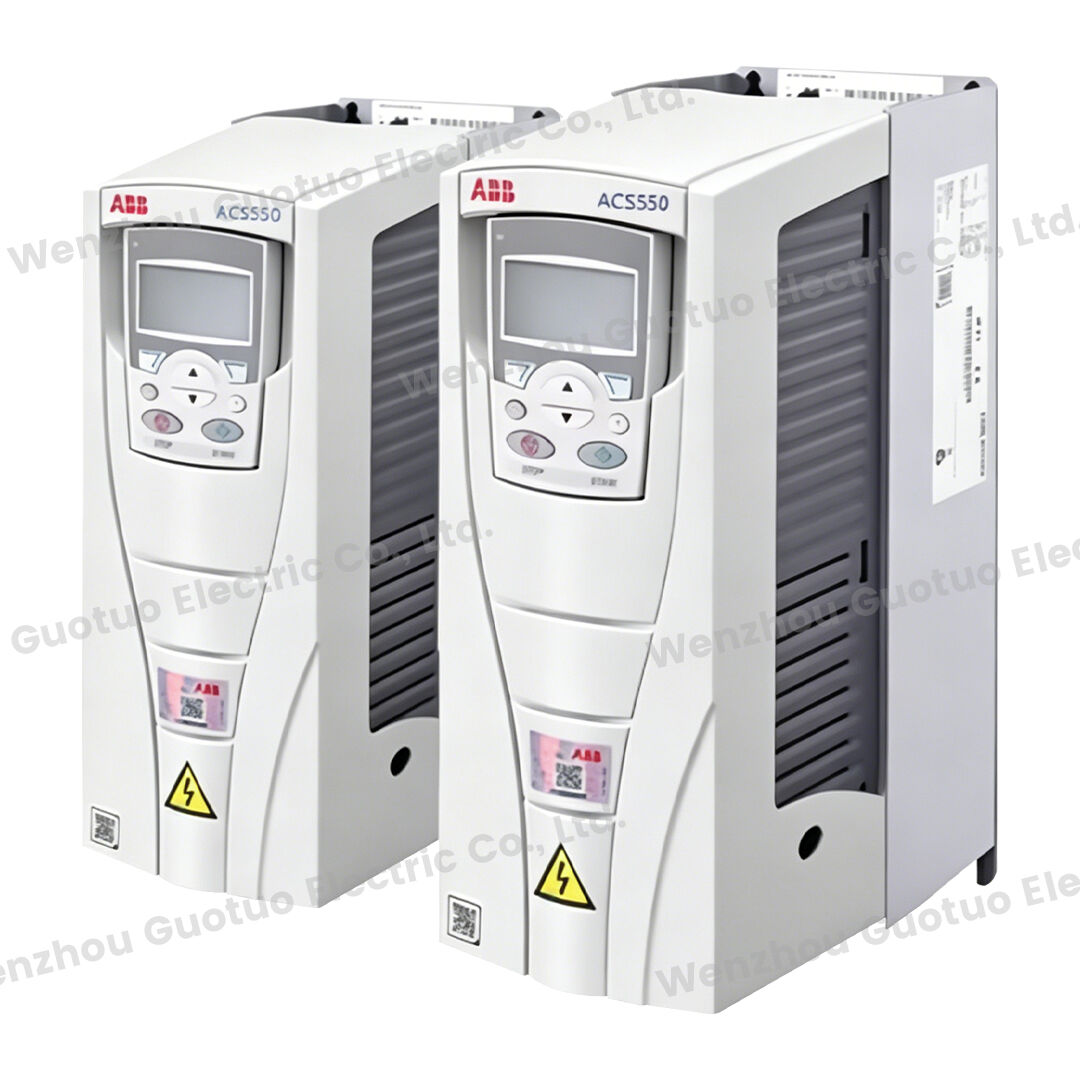

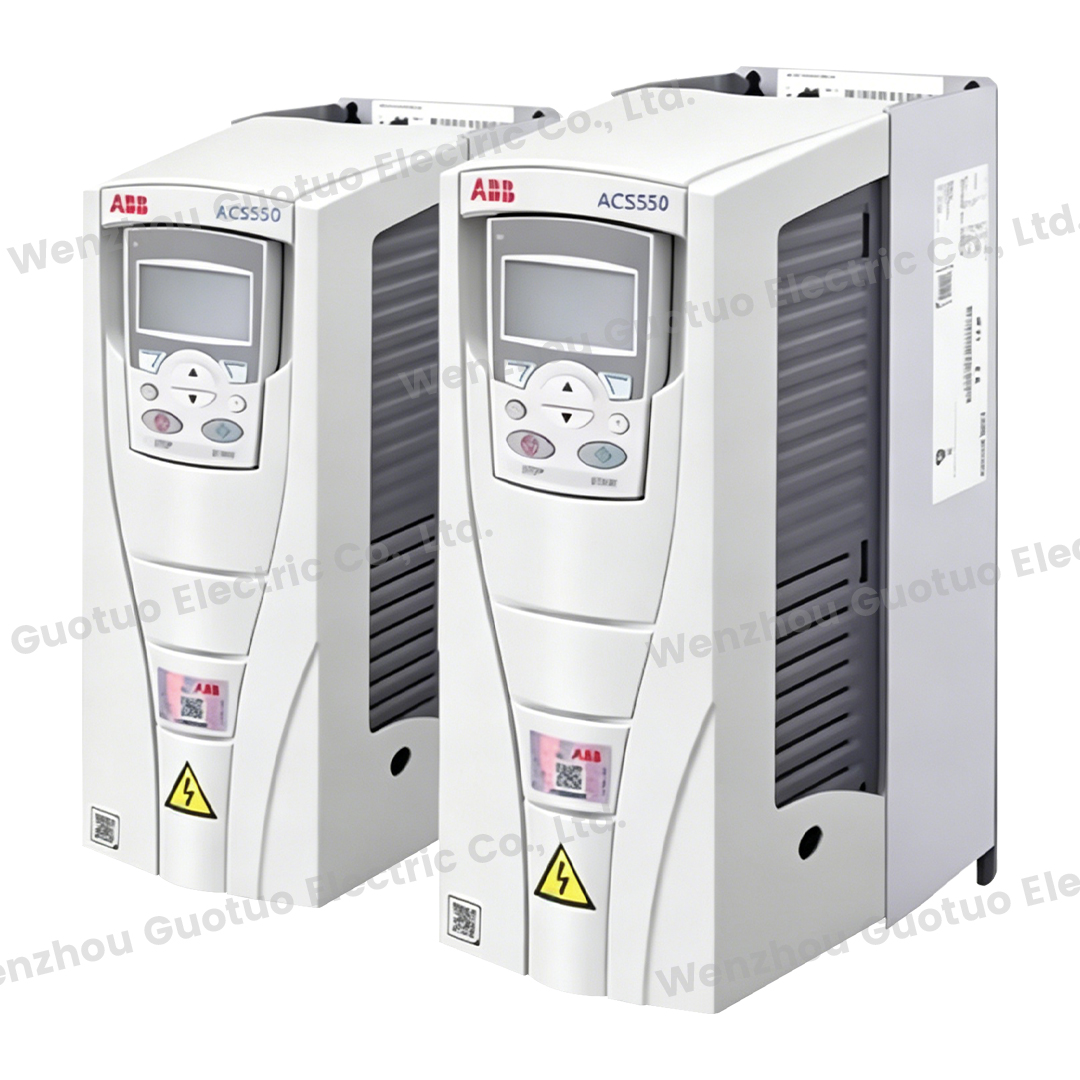

| ACS550 | Standard transmissionThe predecessor of ACS580 | 0.75~160kW | FlashDrop technology, sequential programming, and general-purpose design. | Industrial process control, OEM, system integration | ||||

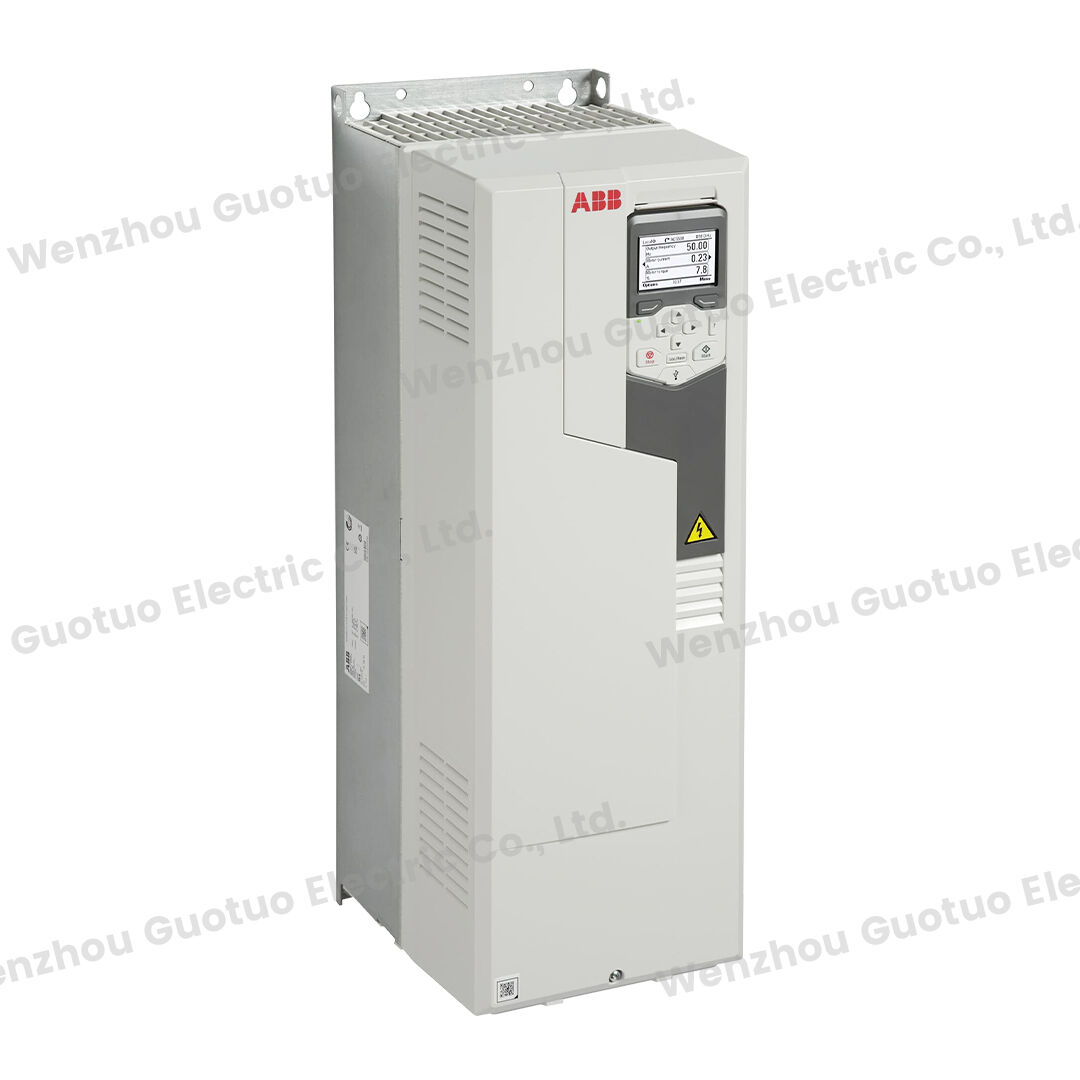

| ACS580 | All-rounder"Fully built-in" plug and play | 0.75~250kW | Built-in reactor/EMC/STO, energy-saving calculator, supports permanent magnet motors | General loads such as fans, water pumps, compressors, and conveyor belts | ||||

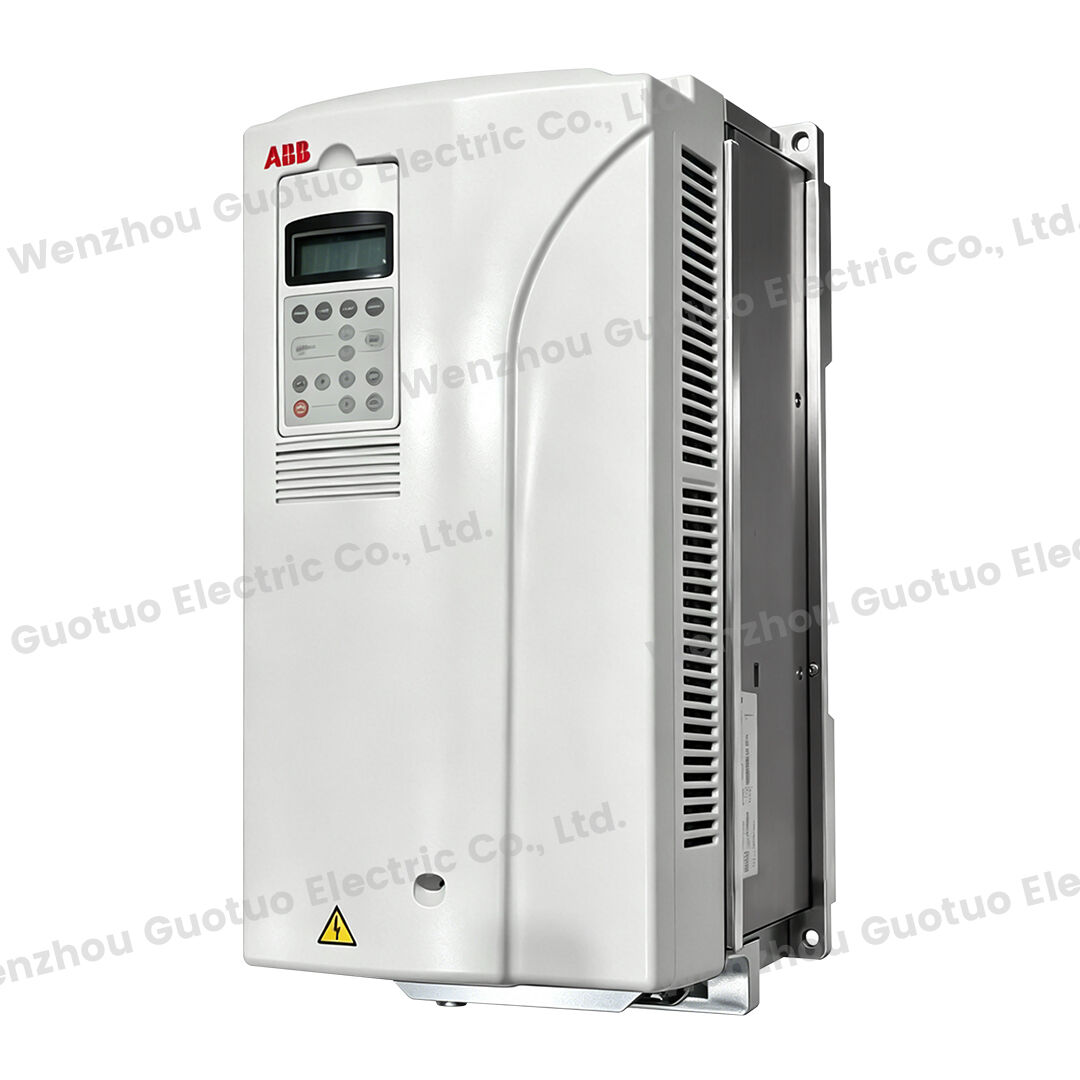

| ACS800 | Industrial Transmission Flagship Predecessor | 1.1~355kW | First-generation DTC (Direct Torque Control), modular design, four-quadrant selectable. | Paper, metals, mining, shipbuilding, power | ||||

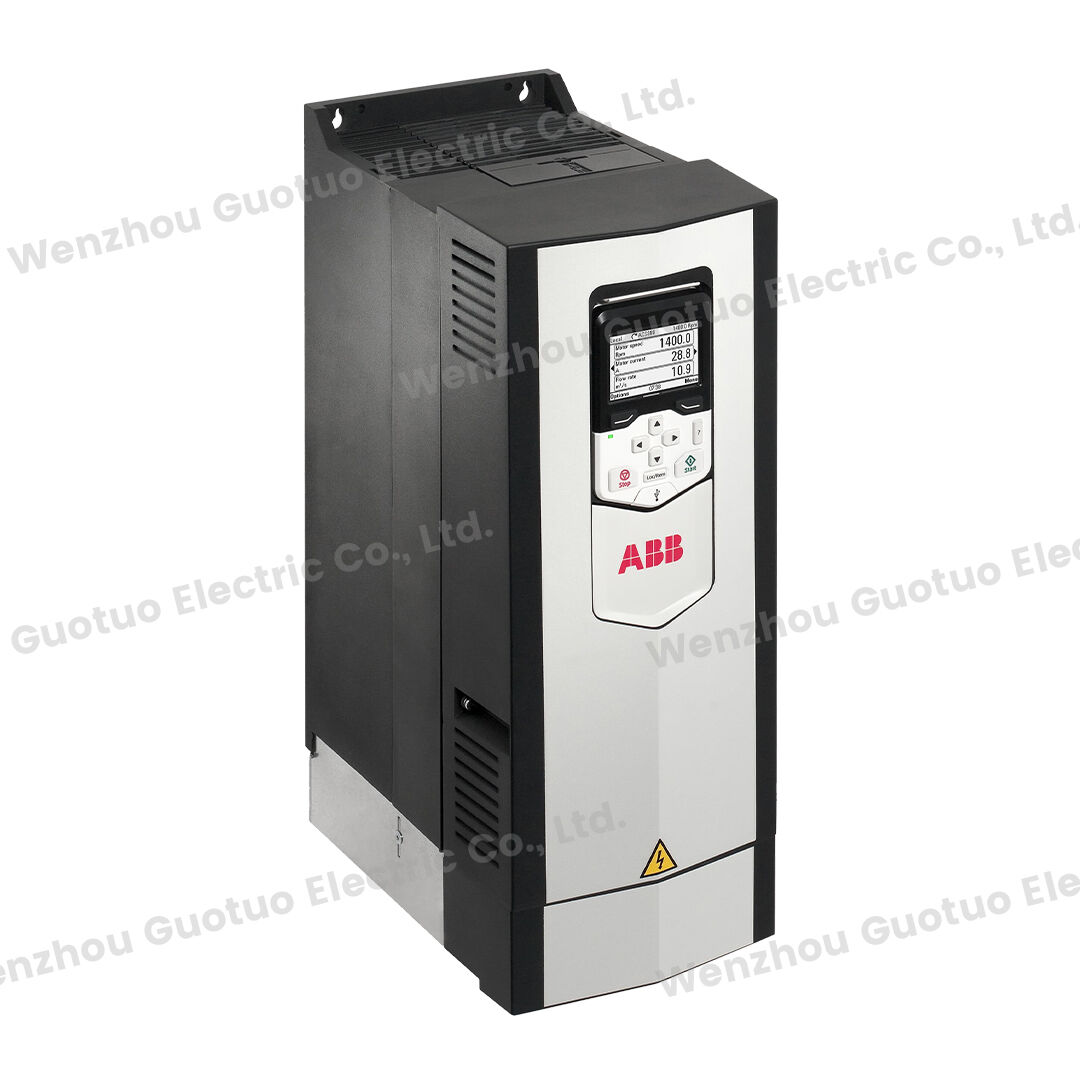

| ACS880 | Industrial Transmission FlagshipHigh performance and high flexibility | 0.75~1800kW | The new generation DTC features modular multi-drive design, built-in positioning control, and full motor support. | Cranes, mining, shipbuilding, steel rolling, high-precision positioning | ||||
| Inverter (VFD) Model Naming Rules | ||||||||
| Although the rules vary slightly between different series, taking ACS580-01-09A8-4 as an example, its structure is usually as follows: | ||||||||
| ACS:The product series prefix represents ABB frequency converters. | 580:Product serial numbers, such as 580 (general type), 880 (high-end type), 580. | |||||||
| 01:Hardware version or structure code. 01 typically indicates a wall-mounted unit with an IP21 protection rating. 04 may indicate an IP55 protection rating, and 11 may indicate a modular unit. | 09A8:Rated current. This indicates that the device's rated output current is 9.8 amps. This is a key parameter for selection. | |||||||
| 4:Voltage levels: 2 = 208-240V, 4 = 380-480V, 6 = 525-690V. | Example of a complete model: ACS880-01-414A-3+E200+P904 indicates an ABB ACS880 series frequency converter with a rated current of 414A and a voltage of 400V, and includes options such as an expansion card. | |||||||
| The complete model list for ABB VFDs is as follows: | ||||||||
| ACS180 | ACS355 | |||||||
| model | Rated current (A) | Light load power (kW) | model | Rated current (A) | Motor power (kW) | |||
| ACS180-04S-01A8-4 | 1.8 | 0.75 | ACS355-03E-01A2-4 | 1.2 | 0.37 | |||
| ACS180-04S-02A6-4 | 2.1 | 1 | ACS355-03E-01A9-4 | 1.9 | 0.55 | |||
| ACS180-04S-03A3-4 | 3.1 | 1.5 | ACS355-03E-02A4-4 | 2.4 | 0.75 | |||
| ACS180-04S-04A0-4 | 3.8 | 2 | ACS355-03E-03A3-4 | 3.3 | 1.1 | |||
| ACS180-04S-05A6-4 | 5.3 | 2 | ACS355-03E-04A1-4 | 4.1 | 1.5 | |||
| ACS180-04S-07A2-4 | 6.8 | 3 | ACS355-03E-05A6-4 | 5.6 | 2.2 | |||
| ACS180-04S-09A4-4 | 8.9 | 5 | ACS355-03E-07A3-4 | 7.3 | 3 | |||
| ACS180-04S-12A6-4 | 12 | 7.5 | ACS355-03E-08A8-4 | 8.8 | 4 | |||
| ACS180-04S-17A0-4 | 16.2 | 10 | ACS355-03E-12A5-4 | 12.5 | 5.5 | |||
| ACS180-04S-25A0-4 | 21 | 15 | ACS355-03E-15A6-4 | 15.6 | 7.5 | |||
| ACS180-04S-033A-4 | 27 | 20 | ACS355-03E-23A1-4 | 23.1 | 11 | |||
| ACS180-04S-038A-4 | 34 | 25 | ACS355-03E-31A0-4 | 31 | 15 | |||
| ACS180-04S-045A-4 | 40 | 30 | ACS355-03E-38A0-4 | 38 | 18.5 | |||
| ACS180-04S-050A-4 | 42 | 30 | ACS355-03E-44A0-4 | 44 | 22 | |||
| ACS380 | ACS510 | |||||||
| model | Rated current (A) | Motor power (kW) | model | Rated current (A) | Motor power (kW) | |||
| ACS380-040S-01A8-4 | 1.8 | 0.55 | ACS510-01-03A3-4 | 3.3 | 1.1 | |||
| ACS380-040S-02A6-4 | 2.6 | 0.75 | ACS510-01-04A1-4 | 4.1 | 1.5 | |||
| ACS380-040S-03A3-4 | 3.3 | 1.1 | ACS510-01-05A6-4 | 5.6 | 2.2 | |||
| ACS380-040S-04A0-4 | 4 | 1.5 | ACS510-01-07A2-4 | 7.2 | 3 | |||
| ACS380-040S-05A6-4 | 5.6 | 2.2 | ACS510-01-09A4-4 | 9.4 | 4 | |||
| ACS380-040S-07A2-4 | 7.2 | 3 | ACS510-01-012A-4 | 11.9 | 5.5 | |||
| ACS380-040S-09A4-4 | 9.4 | 4 | ACS510-01-017A-4 | 17 | 7.5 | |||
| ACS380-040S-12A6-4 | 12.6 | 5.5 | ACS510-01-025A-4 | 25 | 11 | |||
| ACS380-040S-17A0-4 | 17 | 7.5 | ACS510-01-031A-4 | 31 | 15 | |||
| ACS380-040S-25A0-4 | 25 | 11 | ACS510-01-038A-4 | 38 | 18.5 | |||
| ACS380-040S-033A-4 | 33 | 15 | ACS510-01-046A-4 | 46 | 22 | |||
| ACS380-040S-038A-4 | 38 | 18.5 | ACS510-01-060A-4 | 60 | 30 | |||
| ACS380-040S-044A-4 | 44 | 22 | ACS510-01-072A-4 | 72 | 37 | |||
| ACS510-01-088A-4 | 88 | 45 | ||||||
| ACS510-01-125A-4 | 125 | 55 | ||||||
| ACS510-01-157A-4 | 157 | 75 | ||||||
| ACS510-01-180A-4 | 180 | 90 | ||||||
| ACS510-01-195A-4 | 195 | 110 | ||||||
| ACS510-01-246A-4 | 246 | 132 | ||||||
| ACS510-01-290A-4 | 290 | 160 | ||||||
| ACS550 | ACS580 | |||||||
| model | Rated current (A) | Motor power (kW) | model | Rated current (A) | Light load power (kW) | Order number (example) | ||
| ACS550-01-03A3-4 | 3.3 | 0.75 | ACS580-01-02A7-4 | 2.7 | 0.75 | 3ABD50000038937 | ||
| ACS550-01-04A1-4 | 4.1 | 1.1 | ACS580-01-03A3-4 | 3.3 | 1.1 | 3ABD50000038938 | ||
| ACS550-01-05A4-4 | 5.4 | 1.5 | ACS580-01-04A1-4 | 4.1 | 1.5 | 3ABD50000038939 | ||
| ACS550-01-06A9-4 | 6.9 | 2.2 | ACS580-01-05A6-4 | 5.6 | 2.2 | 3ABD50000038940 | ||
| ACS550-01-08A8-4 | 8.8 | 3 | ACS580-01-07A3-4 | 7.3 | 3 | 3ABD50000038951 | ||
| ACS550-01-012A-4 | 11.9 | 5.5 | ACS580-01-09A5-4 | 9.5 | 4 | 3ABD50000038952 | ||
| ACS550-01-015A-4 | 15.4 | 7.5 | ACS580-01-12A7-4 | 12.7 | 5.5 | 3ABD50000038953 | ||
| ACS550-01-023A-4 | 23 | 11 | ACS580-01-018A-4 | 18 | 7.5 | 3ABD50000038959 | ||
| ACS550-01-031A-4 | 31 | 15 | ACS580-01-026A-4 | 26 | 11 | 3ABD50000038960 | ||
| ACS550-01-038A-4 | 38 | 18.5 | ACS580-01-033A-4 | 33 | 15 | 3ABD50000038961 | ||
| ACS550-01-045A-4 | 44 | 22 | ACS580-01-039A-4 | 39 | 18.5 | 3ABD50000038962 | ||
| ACS550-01-059A-4 | 59 | 30 | ACS580-01-046A-4 | 46 | 22 | 3ABD50000038963 | ||
| ACS550-01-072A-4 | 72 | 37 | ACS580-01-062A-4 | 62 | 30 | 3ABD00045433-D | ||
| ACS550-01-087A-4 | 87 | 45 | ACS580-01-073A-4 | 73 | 37 | 3ABD00045434-D | ||
| ACS550-01-125A-4 | 125 | 55 | ACS580-01-088A-4 | 88 | 45 | — | ||
| ACS550-01-157A-4 | 157 | 75 | ACS580-01-106A-4 | 106 | 55 | — | ||
| ACS550-01-180A-4 | 180 | 90 | ACS580-01-145A-4 | 145 | 75 | 3ABD00045437-D | ||
| ACS550-01-195A-4 | 195 | 110 | ACS580-01-169A-4 | 169 | 90 | 3ABD00045438-D | ||
| ACS550-01-246A-4 | 246 | 132 | ACS580-01-206A-4 | 206 | 110 | 3ABD00045439-D | ||
| ACS550-01-290A-4 | 290 | 160 | ACS580-01-246A-4 | 246 | 132 | 3ABD00045440-D | ||
| ACS580-01-293A-4 | 293 | 160 | 3ABD00045441-D | |||||
| ACS580-01-363A-4 | 363 | 200 | 3ABD00037932-D | |||||
| ACS580-01-430A-4 | 430 | 250 | 3ABD00037933-D | |||||
| ACS800 | ACS880 | |||||||
| model | Motor power (kW) | model | Motor power (kW) | model | Matching motor power (for heavy-duty applications) | model | Rated current (A) | Power range (kW) |
| ACS800-01-0003-3+P901 | 1.1 kW | ACS800-04-0003-3+P901 | 1.1 kW | ACS880-01-02A4-3 | 0.75 kW | ACS880-07-0105A-3 | 105 | 55 |
| ACS800-01-0004-3+P901 | 1.5 kW | ACS800-04-0004-3+P901 | 1.5 kW | ACS880-01-03A3-3 | 1.1 kW | ACS880-07-0145A-3 | 145 | 75 |
| ACS800-01-0005-3+P901 | 2.2 kW | ACS800-04-0005-3+P901 | 2.2 kW | ACS880-01-04A0-3 | 1.5 kW | ACS880-07-0169A-3 | 169 | 90 |
| ACS800-01-0006-3+P901 | 3 kW | ACS800-04-0006-3+P901 | 3 kW | ACS880-01-05A6-3 | 2.2 kW | ACS880-07-0206A-3 | 206 | 110 |
| ACS800-01-0009-3+P901 | 4 kW | ACS800-04-0009-3+P901 | 4 kW | ACS880-01-07A2-3 | 3 kW | ACS880-07-0246A-3 | 246 | 132 |
| ACS800-01-0011-3+P901 | 5.5 kW | ACS800-04-0011-3+P901 | 5.5 kW | ACS880-01-09A4-3 | 4 kW | ACS880-07-0293A-3 | 293 | 160 |
| ACS800-01-0016-3+P901 | 7.5 kW | ACS800-04-0016-3+P901 | 7.5 kW | ACS880-01-12A6-3 | 5.5 kW | ACS880-07-0363A-3 | 363 | 200 |
| ACS800-01-0020-3+P901 | 11 kW | ACS800-04-0020-3+P901 | 11 kW | ACS880-01-017A-3 | 7.5 kW | ACS880-07-0430A-3 | 430 | 250 |
| ACS800-01-0025-3+P901 | 15 kW | ACS800-04-0025-3+P901 | 15 kW | ACS880-01-025A-3 | 11 kW | ACS880-07-0503A-3 | 503 | 315 |
| ACS800-01-0030-3+P901 | 18.5 kW | ACS800-04-0030-3+P901 | 18.5 kW | ACS880-01-032A-3 | 15 kW | ACS880-07-0583A-3 | 583 | 355 |
| ACS800-01-0040-3+P901 | 22 kW | ACS800-04-0040-3+P901 | 22 kW | ACS880-01-038A-3 | 18.5 kW | ACS880-07-0635A-3 | 635 | 400 |
| ACS800-01-0050-3+P901 | 30 kW | ACS800-04-0050-3+P901 | 30 kW | ACS880-01-045A-3 | 22 kW | ACS880-07-0715A-3 | 715 | 450 |
| ACS800-01-0060-3+P901 | 37 kW | ACS800-04-0060-3+P901 | 37 kW | ACS880-01-061A-3 | 30 kW | ACS880-07-0820A-3 | 820 | 500 |
| ACS800-01-0075-3+P901 | 45 kW | ACS800-04-0075-3+P901 | 45 kW | ACS880-01-072A-3 | 37 kW | ACS880-07-0880A-3 | 880 | 560 |
| ACS800-01-0100-3+P901 | 55 kW | ACS800-04-0100-3+P901 | 55 kW | ACS880-01-087A-3 | 45 kW | ACS880-07-0990A-3 | 990 | 630 |
| ACS800-01-0120-3+P901 | 75 kW | ACS800-04-0120-3+P901 | 75 kW | ACS880-01-105A-3 | 55 kW | ACS880-07-1070A-3 | 1070 | 710 |
| ACS800-01-0135-3+P901 | 90 kW | ACS800-04-0135-3+P901 | 90 kW | ACS880-01-145A-3 | 75 kW | ACS880-07-1320A-3 | 1320 | 800 |
| ACS800-01-0165-3+P901 | 110 kW | ACS800-04-0165-3+P901 | 110 kW | ACS880-01-169A-3 | 90 kW | ACS880-07-1450A-3 | 1450 | 900 |
| ACS800-01-0205-3+P901 | 132 kW | ACS800-04-0205-3+P901 | 132 kW | ACS880-01-206A-3 | 110 kW | ACS880-07-1580A-3 | 1580 | 1000 |
| ACS800-04-0260-3+P901 | 160 kW | ACS880-01-246A-3 | 132 kW | ACS880-07-1800A-3 | 1800 | 1120 | ||
| ACS800-04-0320-3+P901 | 200 kW | ACS880-01-293A-3 | 160 kW | ACS880-07-1980A-3 | 1980 | 1250 | ||
| ACS800-04-0400-3+P901 | 250 kW | ACS880-01-363A-3 | 200 kW | ACS880-07-2300A-3 | 2300 | 1400 | ||
| ACS800-04-0440-3+P901 | 315 kW | ACS880-01-430A-3 | 250 kW | ACS880-07-2600A-3 | 2600 | 1600 | ||
| ACS800-04-0490-3+P901 | 355 kW | ACS880-07-2860A-3 | 2860 | 1800 | ||||
| ABB SS (Soft Starter) Product Overview: | ||||||||
| soft starter (SS) is a motor control device that integrates soft starting, soft stopping, light-load energy saving, and multiple protection functions. Unlike a frequency converter, a soft starter only controls the starting and stopping process of the motor; during normal operation, the motor operates at the power frequency. | ||||||||
| Series Overview Comparison | ||||||||
| series | Market positioning | Current range (external) | Core features | Display and Interface | Typical applications | |||

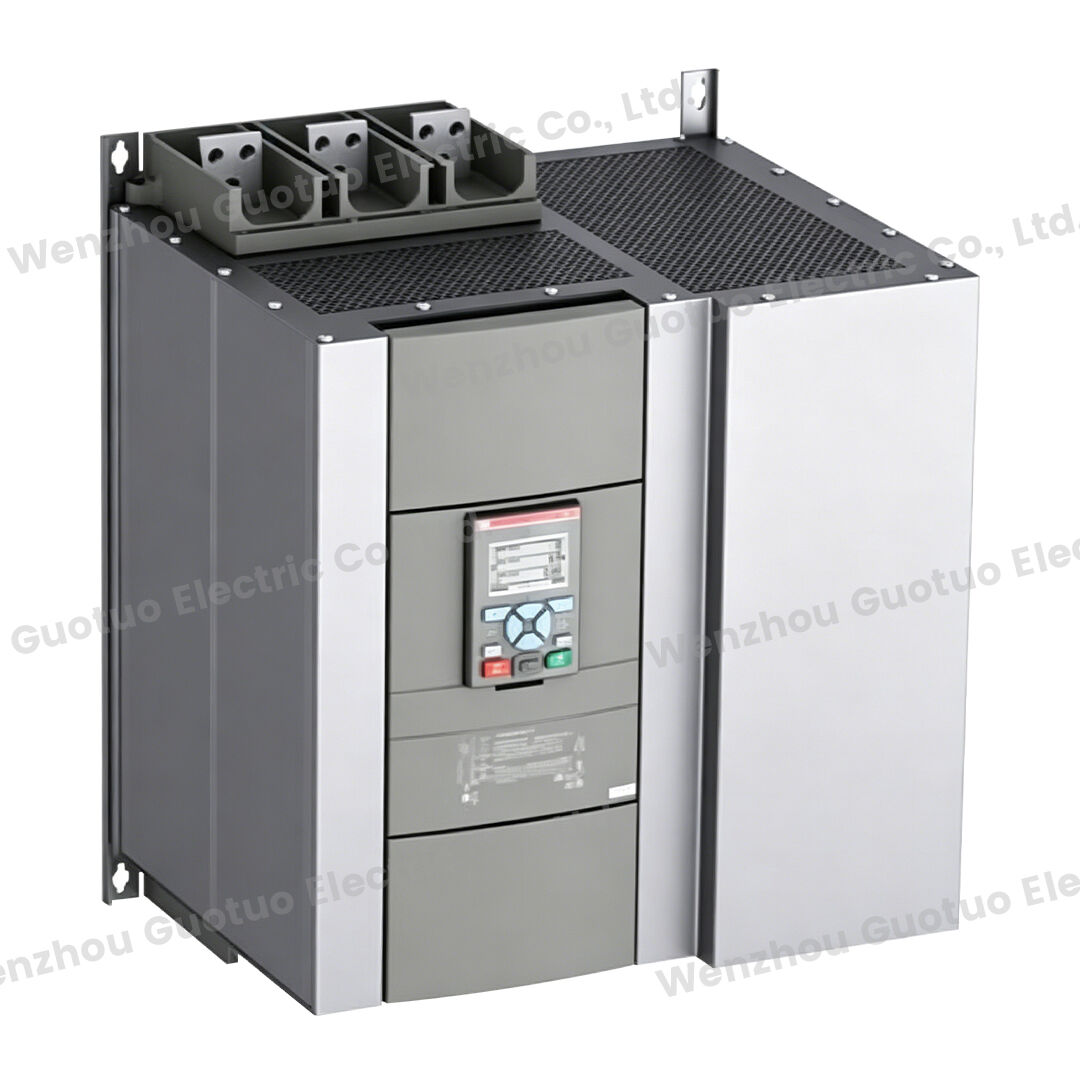

| PSTX | Advanced intelligent (flagship) | 30A - 1250A+ | Intelligent controlBuilt-in bypassTorque controlWater pump cleaning, power braking, supports 17 languages. | Graphical LCD screenDetachable keyboard, supports Chinese | High-power fans, crushers, mixers, high-requirement pumps, long conveyor belts | |||

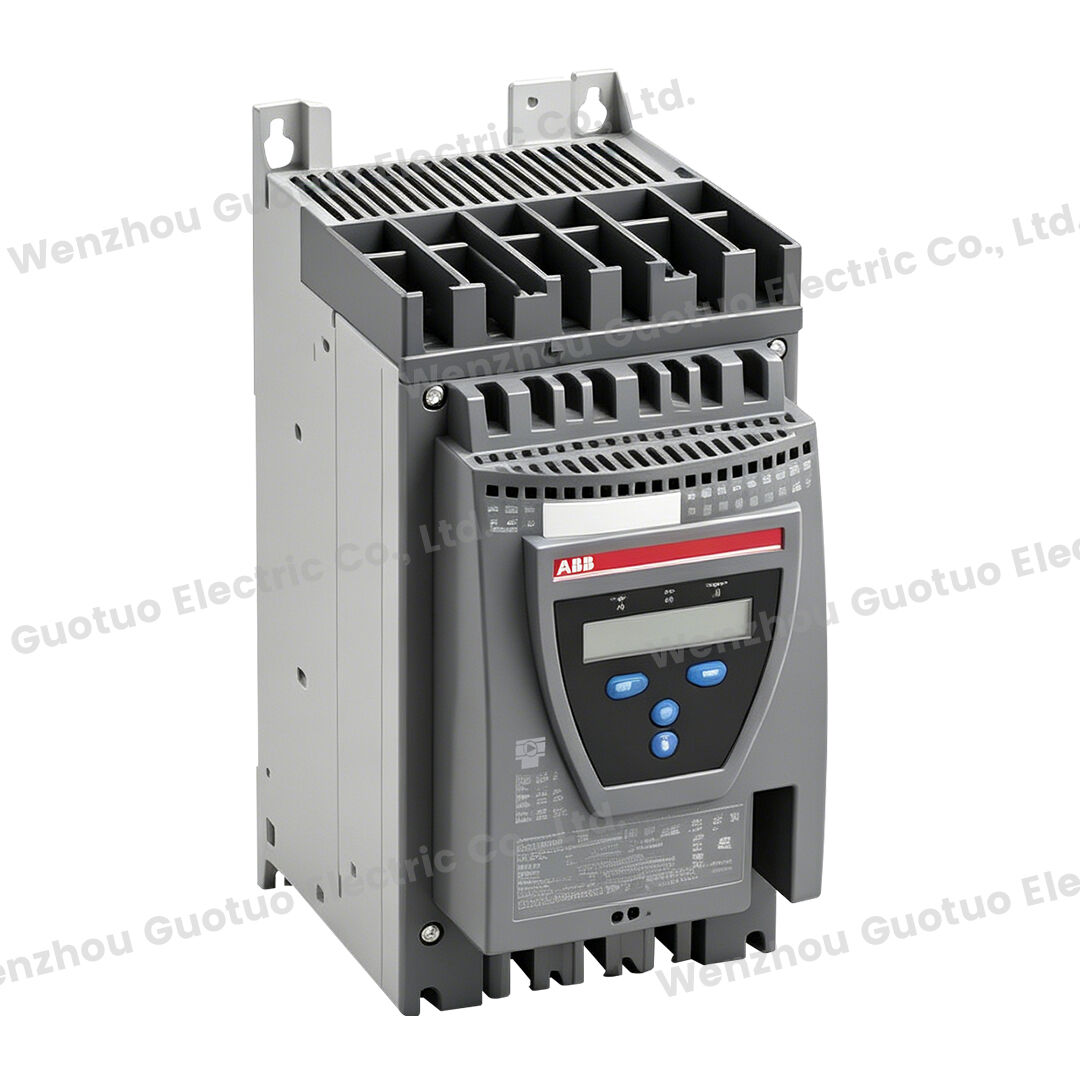

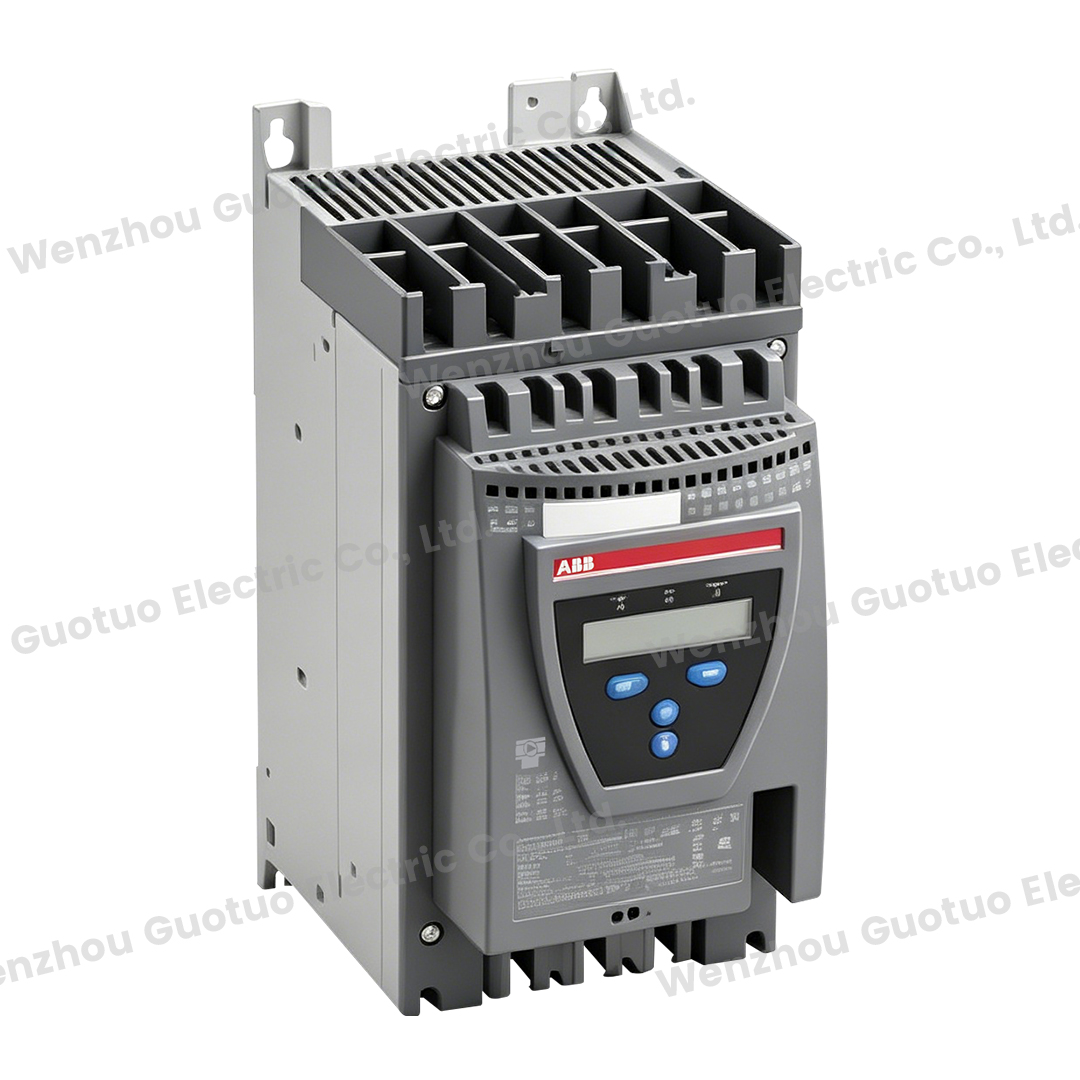

| PST/PSTB | Advanced intelligent type (classic) | 30A - 1050A | Classic IntelligentPSTB has a built-in bypass, integrates multiple motor protection functions, and supports 10 languages. | Character LCD, 4-key keyboard | Similar to the PSTX, it belongs to the previous generation and is gradually being replaced by the PSTX. | |||

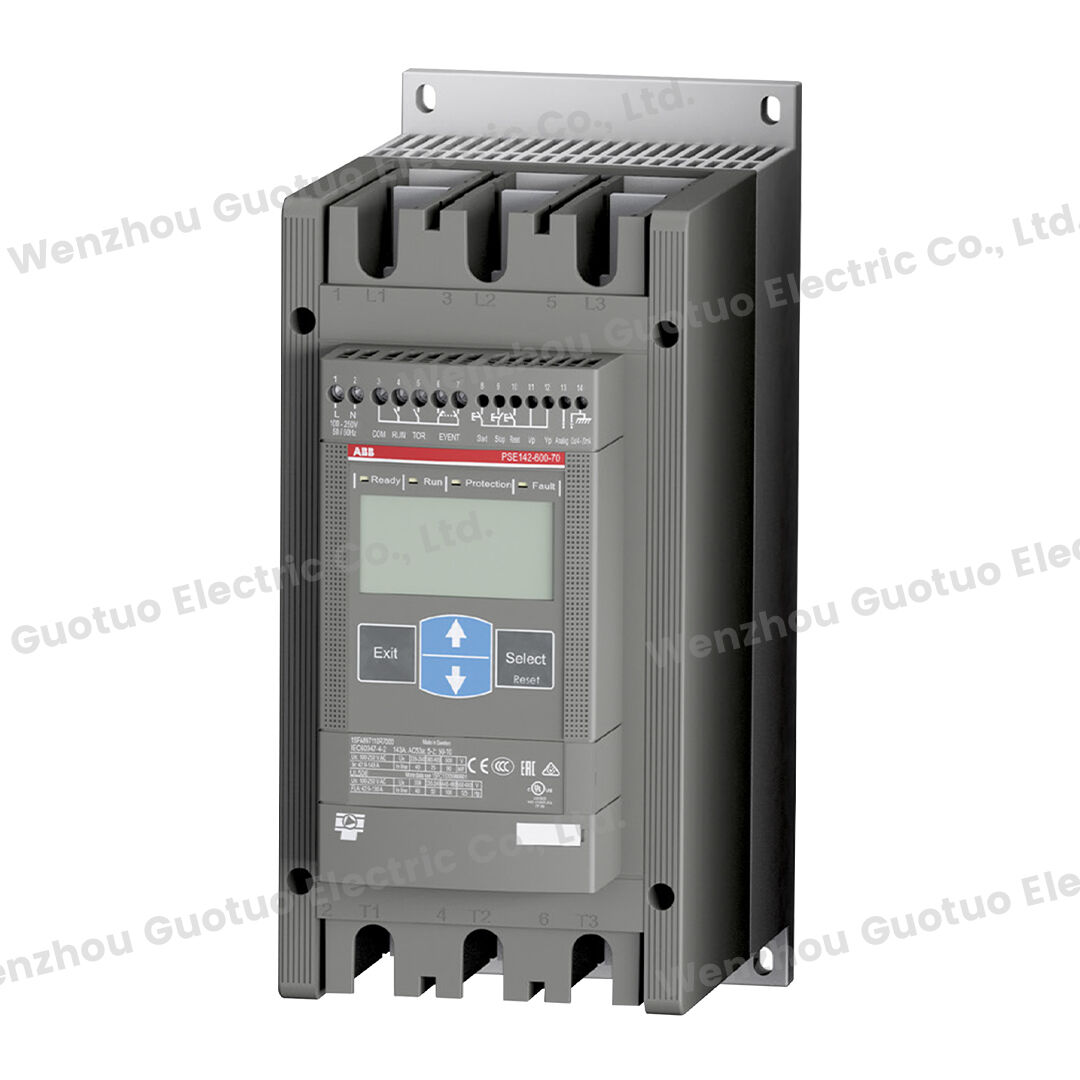

| PSE | High efficiency and compact | 18A - 370A | World's first compact soft starter with torque controlBuilt-in bypass, corrosion-resistant coated circuit board, water pump anti-surge | Symbolic backlit displayThe language is neutral and intuitive. | Pumps (shock-resistant), conveyor belts, compressors, fans | |||

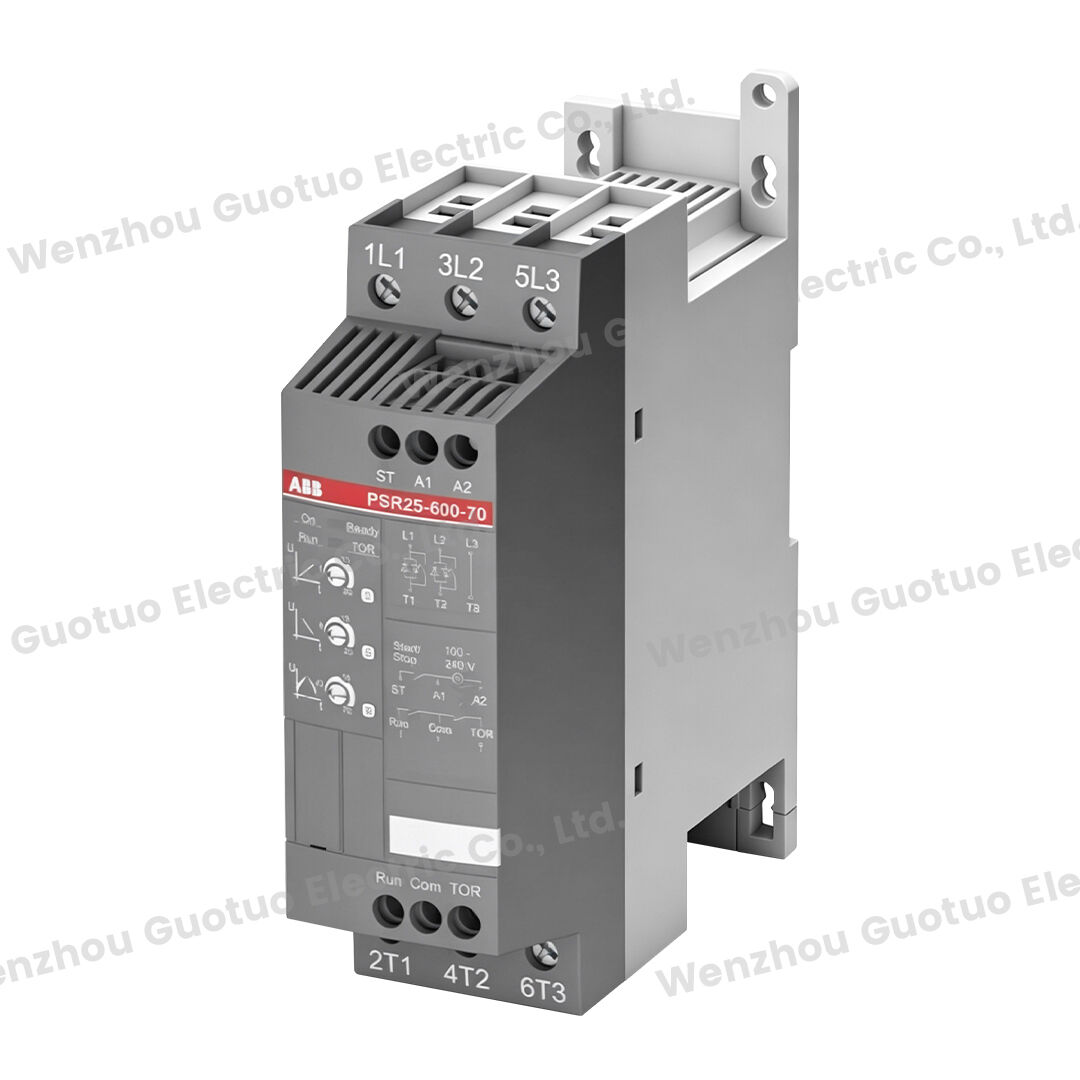

| PSR | compact economy | 3A - 105A | Compact size, built-in bypassThree knobs for adjustment, supports DIN rail mounting, and can start up to 100 times per hour. | No display screenAdjustable via 3 potentiometers (knobs) | Small pumps, fans, and compressors in space-constrained environments. | |||
| Soft starter (SS) model naming rules | ||||||||
| ABB soft starters have a standardized model format, such as PSR37-600-70 or PSTX105-600-70, which can be interpreted as follows: | ||||||||
| PSR / PSE / PSTX: Product seriesThis represents the functional level of the soft starter. | ||||||||
| PSR:Compact and economical. | PSE:Highly efficient and compact, with torque control. | |||||||
| PSS:General and flexible. | PST(B):Advanced intelligent type. | |||||||
| 37 / 105: Rated current:It is the maximum continuous operating current of the soft starter, measured in amperes (A), and is the core basis for selection. | 600: Main circuit voltage:This indicates that the device's rated operating voltage is 600V AC. Common options are 600 (maximum 600V) and 690 (maximum 690V). | |||||||
| 70 / 11: Control voltage code. | ||||||||
| 70:This indicates that the control voltage is 100-240V AC. | 11:This indicates that the control voltage is 24V AC/DC. | |||||||
| Complete model example:PSTX370-600-70 indicates an ABB PSTX series advanced intelligent soft starter with a rated current of 370A, a main circuit voltage of 600V, and a control voltage of 100-240V AC. | ||||||||
| The complete list of ABB soft starter (SS) models is as follows: | ||||||||
| PSTX series | PSR series | PSE series | PST/PSTB series | |||||
| PSTX1250-600-70 | PSR105-600-70 | PSE370-600-70-1 | PSTB 1050-690-70 | |||||
| PSTX1050-600-70 | PSR85-600-70 | PSE300-600-70-1 | PSTB 1050-600-70 | |||||
| PSTX840-600-70 | PSR72-600-70 | PSE250-600-70-1 | PSTB 840-690-70 | |||||
| PSTX720-600-70 | PSR60-600-70 | PSE210-600-70-1 | PSTB 840-600-70 | |||||
| PSTX570-600-70 | PSR45-600-70 | PSE170-600-70 | PSTB 720-690-70 | |||||
| PSTX470-600-70 | PSR37-600-70 | PSE142-600-70 | PSTB 720-600-70 | |||||
| PSTX370-600-70 | PSR30-600-70 | PSE105-600-70 | PSTB 570-690-70 | |||||
| PSTX300-600-70 | PSR25-600-70 | PSE85-600-70 | PSTB 570-600-70 | |||||
| PSTX250-600-70 | PSR16-600-70 | PSE72-600-70 | PSTB 470-690-70 | |||||
| PSTX210-600-70 | PSR12-600-70 | PSE60-600-70 | PSTB 470-600-70 | |||||
| PSTX170-600-70 | PSR9-600-70 | PSE45-600-70 | PSTB 370-690-70 | |||||
| PSTX142-600-70 | PSR6-600-70 | PSE37-600-70 | PSTB 370-600-70 | |||||
| PSTX105-600-70 | PSR3-600-70 | PSE30-600-70 | PST 300-600-70 | |||||
| PSTX85-600-70 | PSE25-600-70 | PST 250-600-70 | ||||||
| PSTX72-600-70 | PSE18-600-70 | PST 210-600-70 | ||||||
| PSTX60-600-70 | PST 175-600-70 | |||||||
| PSTX45-600-70 | PST 142-600-70 | |||||||
| PSTX37-600-70 | PST 105-600-70 | |||||||
| PSTX30-600-70 | PST 85-600-70 | |||||||
| PST 72-600-70 | ||||||||
| PST 60-600-70 | ||||||||

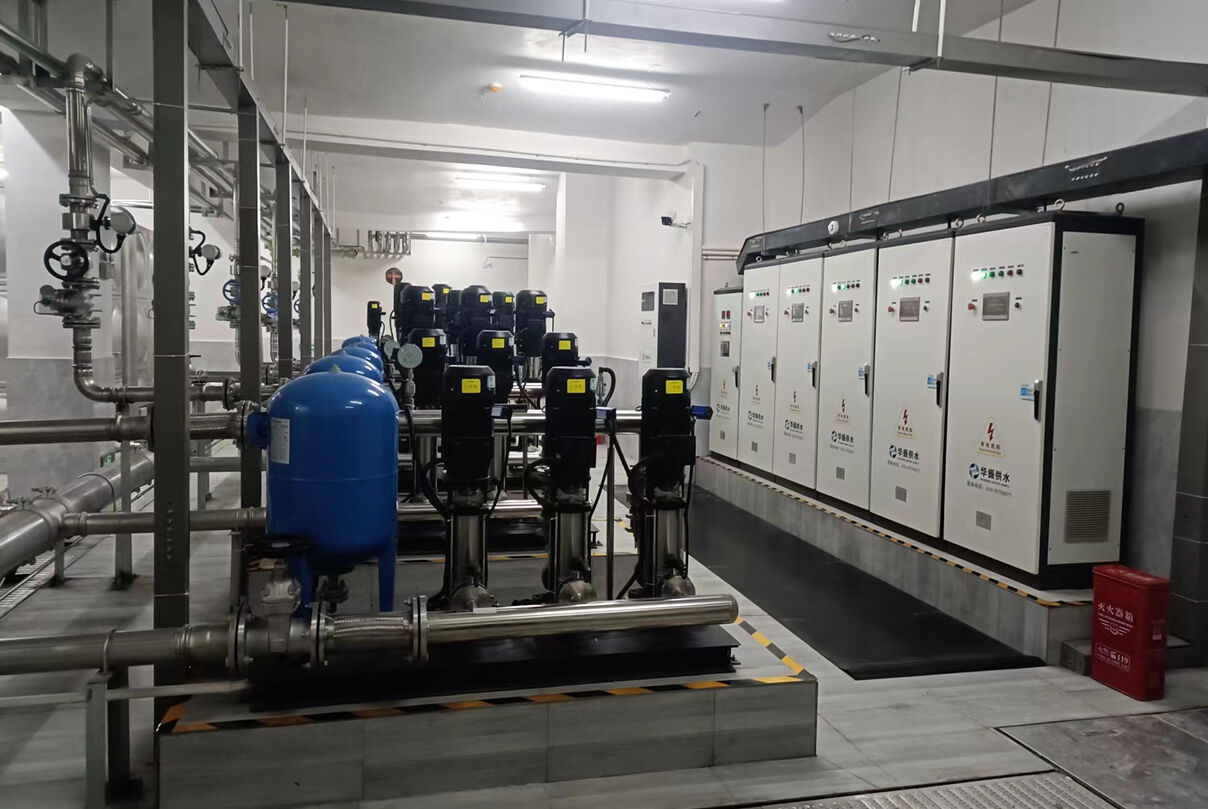

1. Constant pressure water supply system
Combination method:VFD main speed control + SS bypass backup
value:In daily use, variable frequency speed control saves energy; in case of inverter failure, the soft starter ensures uninterrupted water supply.

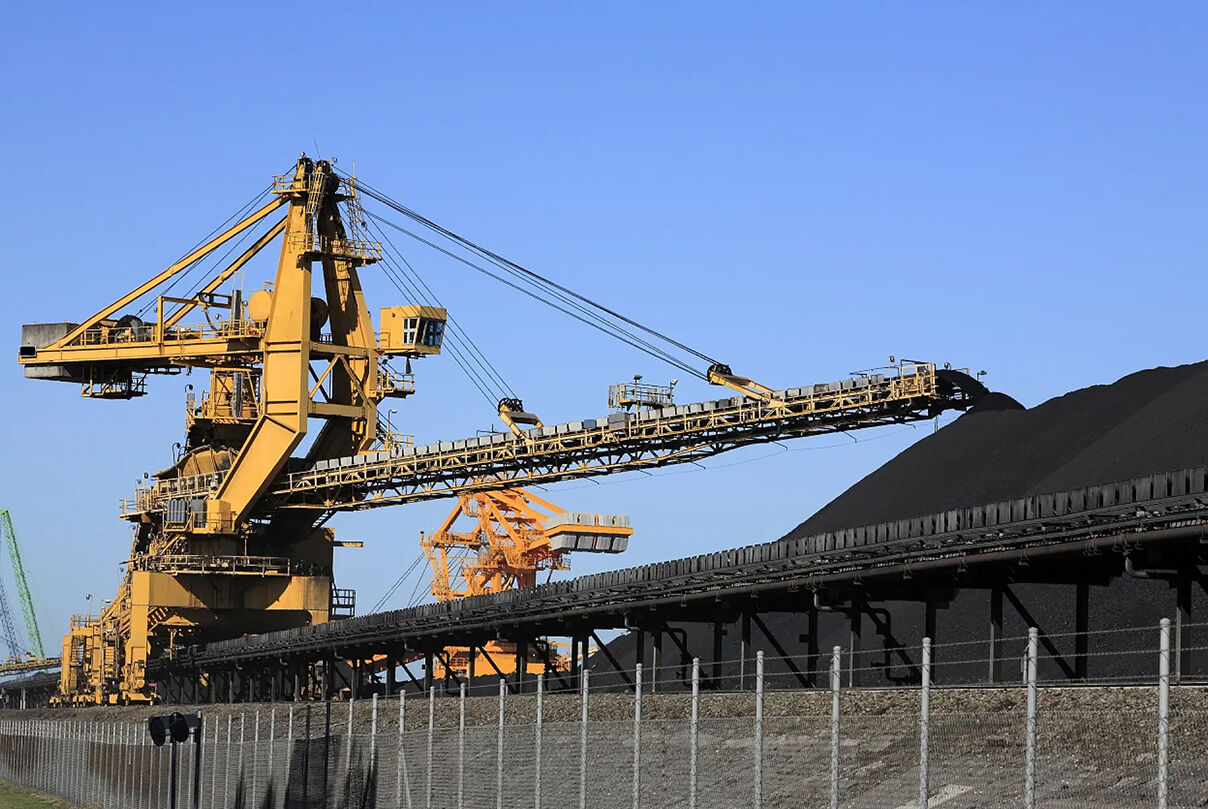

2. Mine conveyor belt
Combination method:SS heavy-load soft start + VFD speed control operation
value:During startup, SS eliminates shock; during operation, VFD adjusts the conveyor speed to match the material flow rate.

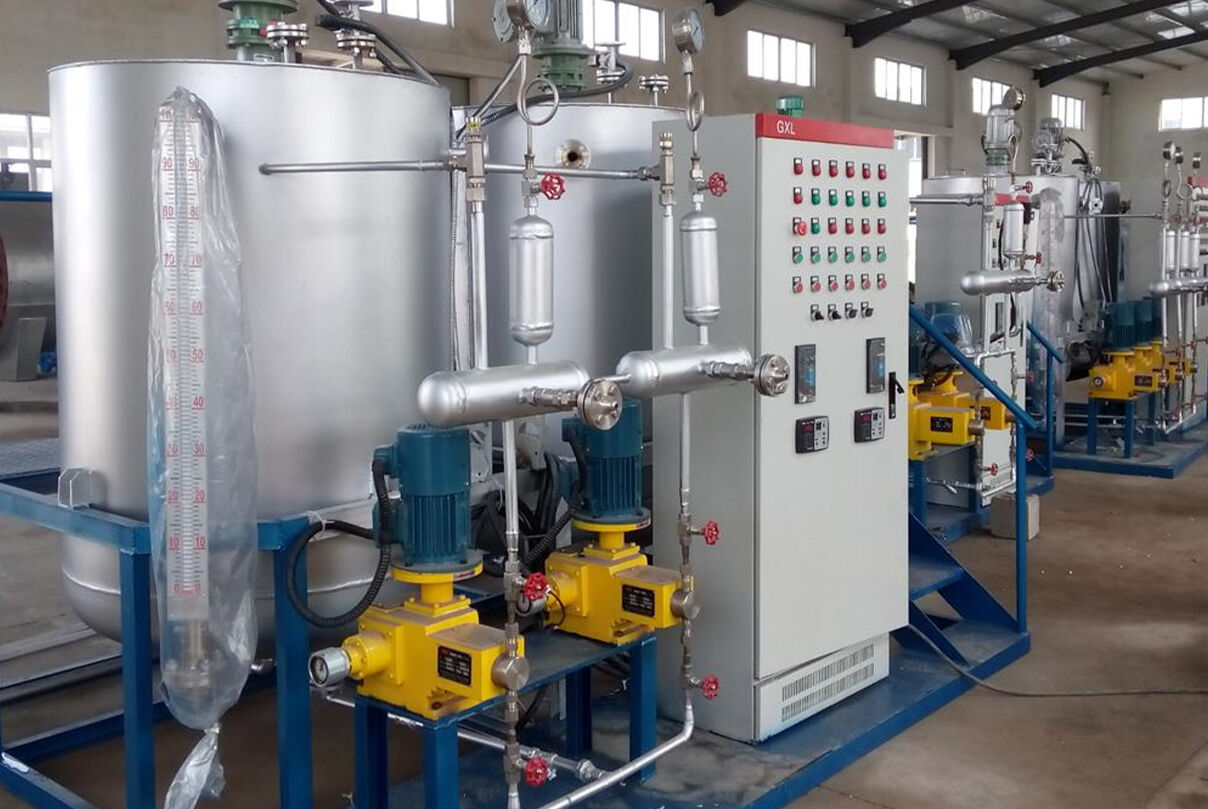

3. Power plant auxiliary equipment
Combination method:VFD frequency converter control + SS bypass protection
value:In the event of a frequency converter failure, the system automatically switches to direct start via a soft starter to ensure continuous operation of the power plant's auxiliary equipment.
| situation | Is it possible to return or exchange it? | Does it contain | ||||||
| Product quality issues | Returnable | ✅ | ||||||
| Wrong model/specification sent | Returnable | ✅ | ||||||
| Customer placed an order incorrectly | Negotiation | ✅ | ||||||
| Customized/non-standard products | Non-refundable | ✅ | ||||||
| For clients with stable partnerships and large purchasing volumes, the following service packages are available: | ||||||||
| Services | Does it contain | |||||||
| Dedicated safety stock | ✅ | |||||||
| Annual framework procurement | ✅ | |||||||
| Tiered bulk discounts | ✅ | |||||||
| Flexible payment terms support | ✅ | |||||||
| One-stop packaged procurement | ✅ | |||||||
| Rapid after-sales response | ✅ | |||||||
| Contact information: | ||||||||
1. Who are we? We are Wenzhou Guotuo Electric Co., Ltd., a leading partner of leading companies such as Schneider Electric, ABB, and Siemens, specializing in the sales of power distribution and industrial control products. We not only guarantee the authenticity of our products but also offer highly competitive prices.
2. Are you a distributor? Yes, we are a distributor for Schneider Electric and ABB, and can provide proof of authenticity and certificate of origin.
3. Why should you buy from us instead of other suppliers? Because we offer genuine products, competitive prices, and ample stock.
4. How do we ensure quality? We provide genuine original products and offer a two-year warranty.
5. When will I receive a quote and detailed information after submitting an inquiry? We will reply to you within 12 hours.
6. What services can we provide? We can provide you with the following services: product consultation, product quotation, shipping quotation, answering your questions, order tracking, and after-sales service support.
Products Number: Schneider Electric NT & NW: A Smart and Classic Choice, Safeguarding Power Distribution Safety in All Scenarios
Products Number: ABB VFD + Soft Starter Drive Starter Combination: Precise speed control and smooth start in one, suitable for full-process motor control of water pumps, fans, and conveyor lines.
Products Number: ABB Emax and Emax 2 offer a dual choice of reliable protection and intelligent management, empowering industrial plants, commercial buildings, and data centers.
Products Number: Schneider ComPacT NSX Digital Wireless Monitoring + NS Classic Reliable Protection, Fully Covering 16-630A Power Distribution Scenarios
Products Number: Schneider EvoPacT VCB Series Vacuum Arc Suppressors Protect Medium Voltage Power Distribution
Products Number: ABB Tmax XT/T series molded case circuit breakers integrate Ekip intelligent tripping and remote communication to empower industrial power distribution and critical power protection.
EN
