The AF series contactors are ABB's flagship contactor products, employing revolutionary electronic control coil technology that overturns the traditional way of using contactors. Leveraging ABB's century-long experience in electrical manufacturing and its strong R&D capabilities, this series aims to solve practical operational problems in power switching and control processes, meeting application needs worldwide and under various power grid conditions with safer, more energy-efficient, and interconnected performance.
I. AF Series – Electronic Coil Control Technology
The AF series is ABB's high-end flagship product, with its core technology being an electronic control coil, bringing revolutionary changes compared to traditional contactors. If you require high reliability and global compatibility, this series is the first choice.
1. Core advantages: Wide voltage range and low power consumption
Ultra-wide voltage range:This is the most distinctive feature of the AF series.A single contactor coil can cover AC/DC voltages ranging from 24V to 500V. The product range is extremely wide, offering both 3-pole and 4-pole options. This means that regardless of whether the power supply is AC or DC, in China, the US, or Europe, a single model can be used, greatly simplifying selection and inventory management. For example, model number... AF116-30-00B-34The control voltage range is as high as 250-500V 50/60Hz and DC.
Extremely low power consumption:Compared with traditional contactors, the AF series coilsEnergy consumption reduced by approximately 80%.This not only saves energy but also significantly reduces heat generation inside the cabinet, extending the equipment's lifespan.
Voltage sag resistance:The electronic coil design can effectively cope with instantaneous fluctuations or drops in grid voltage, ensuring that the contactor does not trip unexpectedly and guaranteeing production continuity.
AC/DC compatible:A single coil is compatible with both AC and DC power supplies, making it highly flexible in use.
Detailed model list of AF series (sorted by current)
The following table summarizes the common models in the AF series, from 9A to 2050A:
Rated current (AC-3, 400V)	3-pole model (example)	4-pole model (example)	Coil voltage range (typical)
9A	AF09-30-10, AF09-30-01	AF09-40-00	100-250V AC/DC
12A	AF12-30-10, AF12-30-01	-	100-250V AC/DC
16A	AF16-30-10, AF16-30-01	AF16-40-00	100-250V AC/DC
26A	AF26-30-00	AF26-40-00	100-250V AC/DC

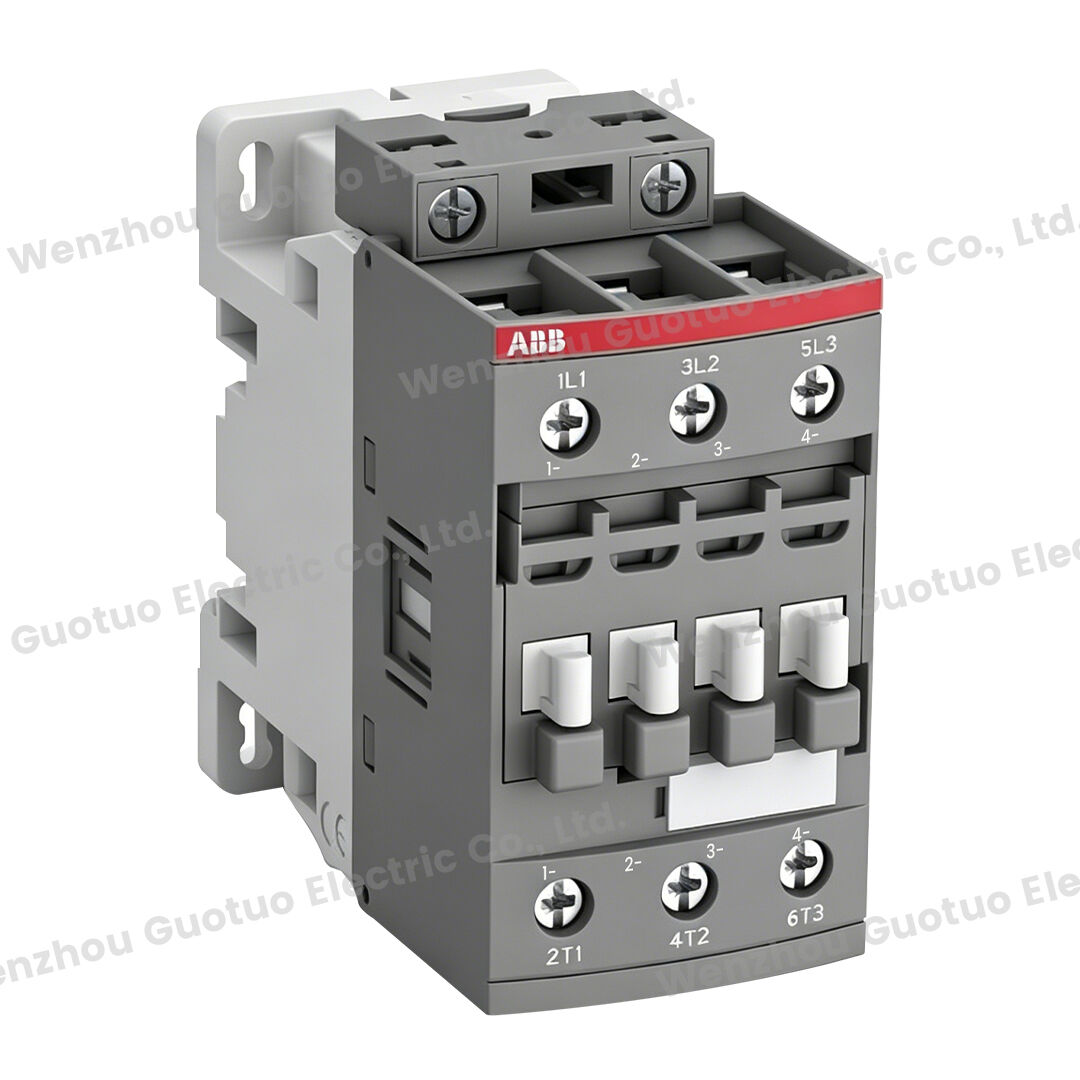

30A	AF30-30-00	-	100-250V AC/DC
38A	AF38-30-00	AF38-40-00	100-250V AC/DC

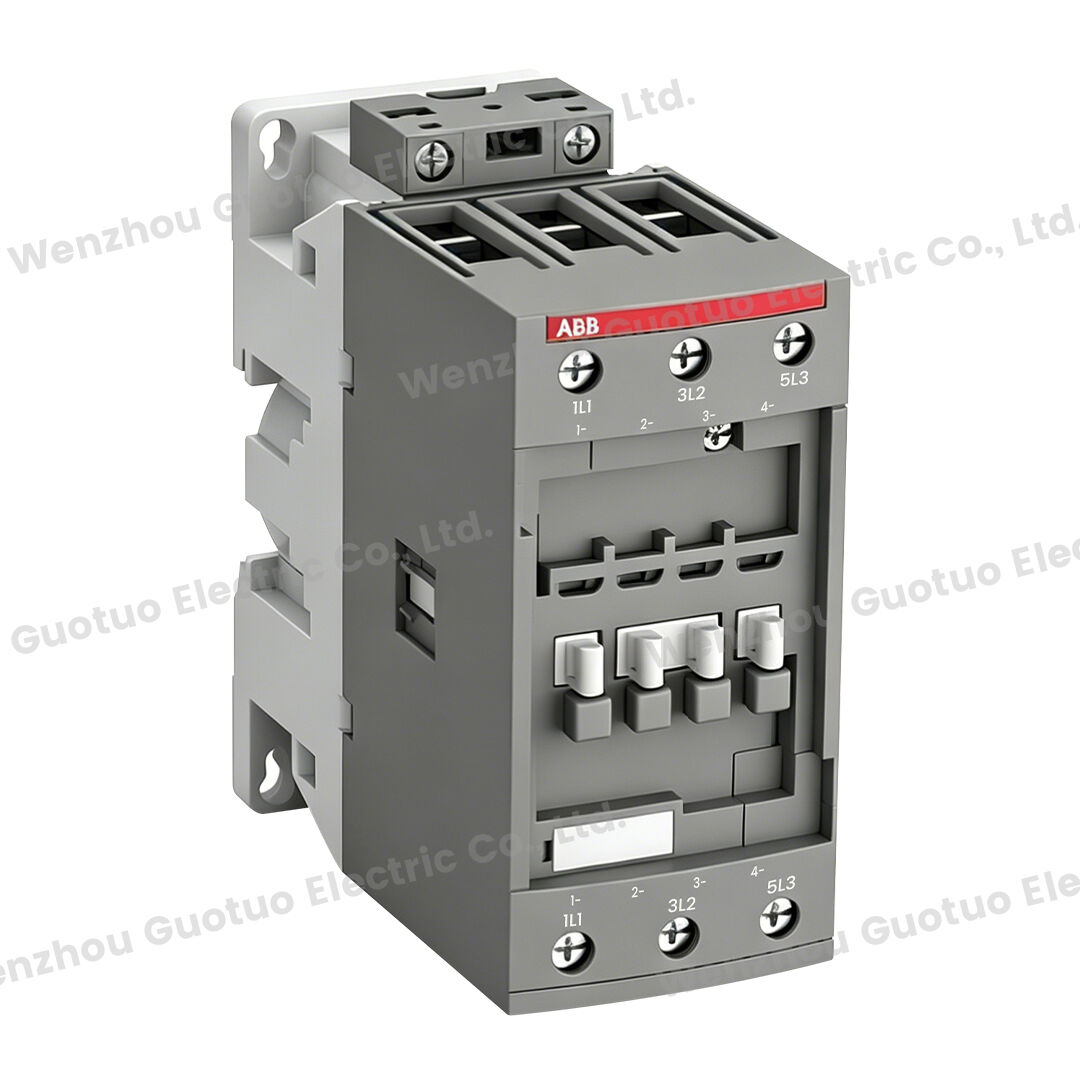

40A	AF40-30-00-11	AF40-40-00	24-60V AC/DC, 100-250V AC/DC, etc.
50A	AF50-30-11	-	100-250V AC/DC
63A	AF63-30-11	-	100-250V AC/DC
75A	AF75-30-11	-	100-250V AC/DC
95A	AF95-30-11	-	100-250V AC/DC
110A	AF110-30-11	-	100-250V AC/DC
145A	AF145-30-11	-	100-250V AC/DC
185A	AF185-30-11	-	100-250V AC/DC
210A	AF210-30-11	-	100-250V AC/DC
260A	AF260-30-11	-	100-250V AC/DC
300A	AF300-30-11	-	100-250V AC/DC

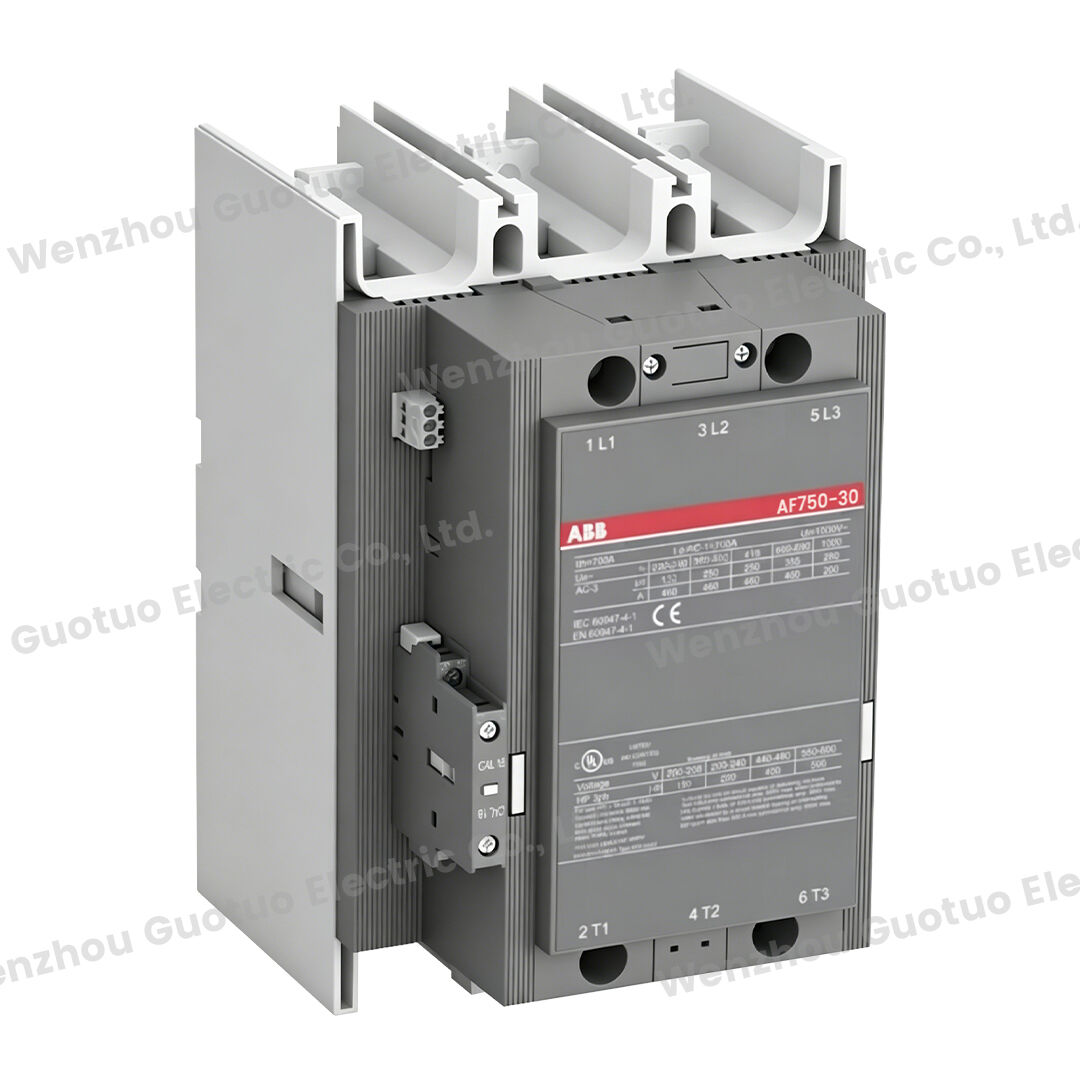

400A and above	AF400, AF460, AF580, AF750, AF1250, AF1350, AF1650, AF2050...	-	A variety of wide voltage coils are available.
Please note: The AF series also has a type in the low current range (AF09-AF38).Z-type coil(e.g., AF09Z-30-10-21) Its coil power consumption is extremely low and it can be directly driven by a PLC (24V DC, 500mA), making it very suitable for control systems that need to be directly connected to the PLC output module.
AF Series Model Naming Rules Explanation
To better understand the model number, the model code is broken down and explained here. Taking AF40-30-00-11 as an example:
AF40:Product series and frame current. This indicates the AF series, with a frame current of 40A.
30:Main contact configuration. The first digit 3 indicates the number of poles (3 poles). The second digit 0 indicates the number of NO (normally open) main contacts; 0 means no auxiliary contacts (for the number of auxiliary contacts, please refer to subsequent fields).
00:The type and quantity of auxiliary contacts installed at the factory. The first digit indicates the number of NO (normally open) auxiliary contacts, and the second digit indicates the number of NC (normally closed) auxiliary contacts. For example, 10 indicates 1 NO auxiliary contact; 01 indicates 1 NC auxiliary contact; 00 indicates no auxiliary contacts.
11Coil specification code. This code corresponds to the specific coil voltage range and control method. For example, 11 usually corresponds to a wide voltage coil of 100-250V AC/DC; 34 may correspond to 250-500V AC/DC.
II. Detailed Subdivision of AF Series Models
Subdivided by current frame size
The AF series contactors can be clearly divided into four main groups according to their design platform and application scenarios, and each group has different characteristics.

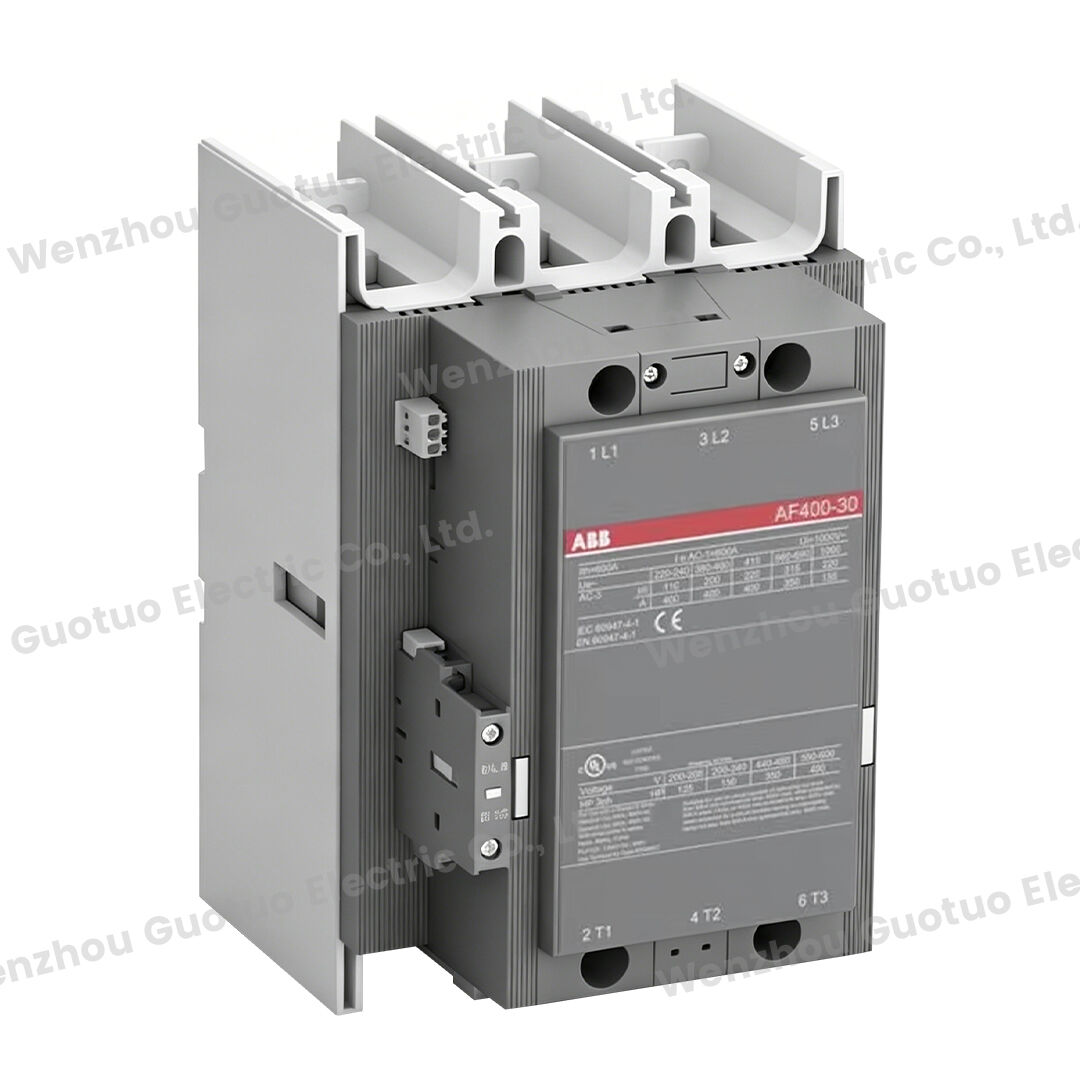

1. Miniature AF contactors (AF09 to AF38)
This is the most compact and ingeniously designed set in the AF series.
Core advantages:AdoptedElectronic coil interface technologyA single coil can cover an extremely wide voltage range (e.g., 24-250V AC/DC), greatly simplifying selection and inventory management.
Special models (AF..Z):This series also offers Z-type coil Model number (e.g., AF09Z-30-10-21). This type of coil has extremely low power consumption and can be controlled by a PLC.24V DC, 500mA The output module can be directly driven without the need for intermediate relays, making it ideal for automated control systems.
Common models:AF09, AF12, AF16, AF26, AF30, AF38.
2. Medium-sized AF contactors (AF40 to AF96)
Core advantages:useModular block designIt is mainly used to control three-phase motors and power circuits with a voltage of 690V AC and below.
Features:Compared to the smaller series, its main circuit and coil terminals are larger, its rated insulation voltage is higher, and its structural strength is better.
Common models:AF40, AF52, AF63, AF75, AF80, AF96.
3. Large AF contactors (AF116 to AF370)
Key advantage: The main circuit voltage can be boosted to 1000V AC, making it suitable for systems with higher voltage levels.
Features:It is typically used in the control of high-power motors, as well as in converter and inverter systems in new energy fields such as wind power and photovoltaics.
Common models:AF116, AF145, AF190, AF260, AF370.
4. Extra-large AF contactors (AF400 and above)
Core advantages:Used to control Gundam 2050A The rated current (AC-3) meets the most stringent application requirements of heavy industry, large power systems, and other applications.
Features:These contactors are designed to switch high-power inductive loads (AC-3) and resistive loads (AC-1) and have extremely long mechanical and electrical life.
Common models:AF400, AF460, AF580, AF750, AF1350, AF1650, AF2050.
Subdivided by number of extrema
The AF series also offers different numbers of main contact poles to suit different circuit requirements.
3-pole:Standard model, used to control typical three-phase motors or circuits. The model code is usually represented by 30 (e.g., AF09-30-...).
4-pole: Used in circuits requiring simultaneous switching of the neutral line (such as lighting distribution) or for controlling single-phase loads. Model codes are typically indicated by 40 (e.g., AF26-40-...). Some 4-pole models have the following main contact configuration:2NO+2NC(e.g., AF26-22-00-13) provides a more flexible circuit design solution.
Comprehensive Attachments and System Solutions
ABB contactors' modular design allows them to be easily combined into various motor starting solutions:
Overload protection:MatchingTF series(Bimetallic) orEF series(Electronic) thermal overload relays provide overload and phase loss protection with different tripping levels such as CLASS 10, 20, and 30.
Motor starting scheme:With the help of a dedicated connection kit, it can be quickly and safely assembled intoDirect start,Reversible startandStar-delta (Y-Δ) startThe device saves assembly time and cabinet space.
Auxiliary and extended functions:It can be equipped with front-mounted or side-mounted 1-pole, 2-pole, and 4-pole auxiliary contact blocks, as well as electronic timers and other accessories to expand its functions.
How to quickly select the right model based on parameters?
If you want to select the right model based on specific parameters, ABB provides a very useful online AF contactor selection tool. You can quickly locate the model using the following path:
1. Determine the motor power or operating current:The main circuit current is determined based on either AC-3 (motor starter) or AC-1 (resistive load).
2. Determine the coil control voltage:The AF series allows you to specify a voltage range, such as 100-250V AC/DC.
3. Determine the auxiliary contact point requirements:How many pairs of NO/NC auxiliary contacts are needed?
2. Determine the number of extremes:Do you need 3 poles or 4 poles?
By combining the above information, you can obtain the complete model number.
Summarize:The AF series covers the full range from 9A to 2050A and is currently the mainstay for new project design.

Application scenarios and special value

Application areas	Typical scenarios	Most outstanding special value
Wind power generation	Pitch control	Resisting voltage fluctuations and ensuring continuous power generation for wind turbines in remote areas
Solar power generation	Photovoltaic inverter	AC/DC universal + wide voltage range, compatible with various field power supplies
Rail transit	Train lighting/air conditioning/door control	Weight reduction of 45%, coil power consumption reduction of 68%, and three types of coils covering the full voltage range.
Industrial Automation	Motor control/production line	Energy consumption reduced by 80%, model number simplified by 80%, PLC can directly drive
Deep-sea submersible	ROV underwater operations	Highest reliability guarantee in extremely harsh environments
Snowmaking at ski resorts	Snowmaking machine control	Reliable operation under low temperature, high humidity and vibration environment

Service advantages

Return and exchange conditions
situation	Is it possible to return or exchange it?	Does it contain
Product quality issues	Returnable	✅
Wrong model/specification sent	Returnable	✅
Customer placed an order incorrectly	Negotiation	✅
Customized/non-standard products	Non-refundable	✅

Special services

For clients with stable partnerships and large purchasing volumes, the following service packages are available:
Services				Does it contain
Dedicated safety stock				✅
Annual framework procurement				✅
Tiered bulk discounts				✅
Flexible payment terms support				✅
One-stop packaged procurement				✅
Rapid after-sales response				✅
