2 million electrical cycles lifespan, zero arc flash safety design, 56 patented self-diagnostic features—fully green and compliant, empowering intelligent operation and maintenance. Inquire now for a quote!

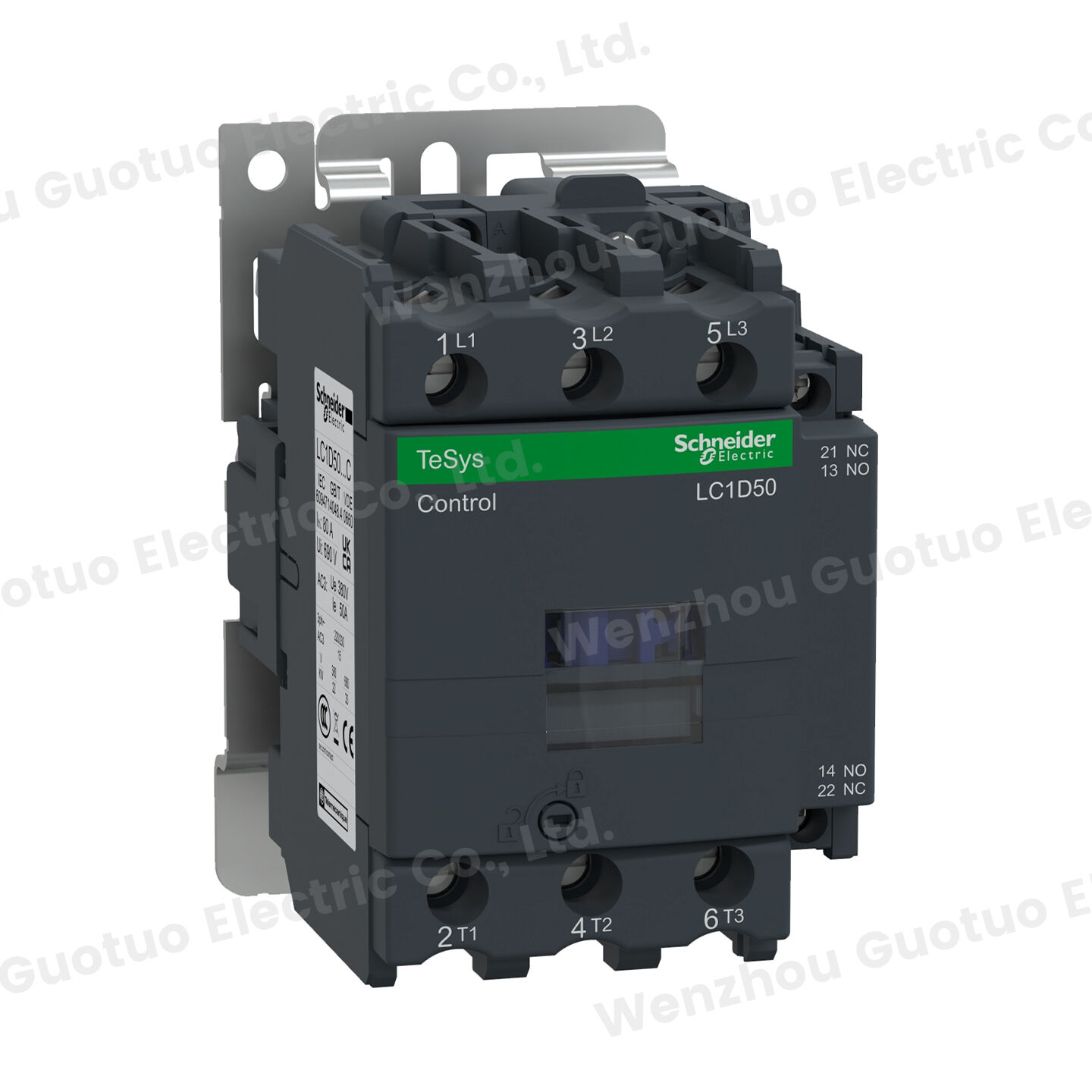

| TeSys D This series is Schneider Electric's most versatile and core contactor product line, suitable for various conventional motor control and automation systems. This series features...Ultra-long electrical life(2 million times) andCompact designIt is known for its excellence. | ||||||||
| Model Naming Rules Analysis(Taking LC1D12M7C as an example): | ||||||||
| ① LC1D= TeSys D series 3-pole contactor. ② 12= Rated current 12A. ③ M = 220V AC 50/60Hz coil, Q = 380V AC 50/60Hz coil.④7 = Usage frequency: 50/60Hz C = Manufactured in China. | ||||||||
| Technical Specifications Overview | ||||||||
| Technical parameters | Specifications | |||||||
| Rated operating voltage (Ue) | ≤ 690V AC (25-400Hz) / ≤ 300V DC | |||||||
| Extreme number | 3-pole (standard type) | |||||||
| Built-in auxiliary contacts | 1NO + 1NC | |||||||
| Operating temperature range | -40°C to +60°C (operation) / -60°C to +80°C (storage) | |||||||
| Installation method | Base plate mounting / Guide rail mounting (35mm) | |||||||
| Certification Standards | CCC, CE, UL, CSA, DNV, BV, LROS, etc. | |||||||
| LC1D Series Detailed Model List | ||||||||
| Model/Coil Voltage/Frequency | Model/Coil Voltage/Frequency | Rated current (AC-3) | Power (380V) | Built-in auxiliary contacts | ||||
| LC1D09M7C/220VAC /50/60Hz | LC1D09Q7C/380VAC /50/60Hz | 9A | 4kW | 1NO+1NC | ||||
| LC1D12M7C/220VAC/50/60Hz | LC1D12Q7C/380VAC/50/60Hz | 12A | 5.5kW | 1NO+1NC | ||||
| LC1D18M7C/220VAC /50/60Hz | LC1D18Q7C/380VAC/50/60Hz | 18A | 7.5kW | 1NO+1NC | ||||
| LC1D25M7C/220VAC/50/60Hz | LC1D25Q7C/380VAC/50/60Hz | 25A | 11kW | 1NO+1NC | ||||
| LC1D32M7C/220VAC/50/60Hz | LC1D32Q7C/380VAC/50/60Hz | 32A | 15kW | 1NO+1NC | ||||
| LC1D38M7C/220VAC /50/60Hz | LC1D38Q7C/380VAC /50/60Hz | 38A | 18.5kW | 1NO+1NC | ||||
| LC1D40M7C/220VAC/50/60Hz | LC1D40Q7C/380VAC /50/60Hz | 40A | 18.5kW | 1NO+1NC | ||||
| LC1D50M7C/220VAC /50/60Hz | LC1D50Q7C/380VAC/50/60Hz | 50A | 22kW | 1NO+1NC | ||||
| LC1D65M7C/220VAC /50/60Hz | LC1D65Q7C/380VAC/50/60Hz | 65A | 30kW | 1NO+1NC | ||||
| LC1D80M7C/220VAC/50/60Hz | LC1D80Q7C/380VAC/50/60Hz | 80A | 37kW | 1NO+1NC | ||||
| LC1D95M7C/220VAC/50/60Hz | LC1D95Q7C/380VAC/50/60Hz | 95A | 45kW | 1NO+1NC | ||||
| LC1D11500M7C/220VAC/50/60Hz | LC1D11500Q7C/380VAC/50/60Hz | 115A | 45kW | 1NO+1NC | ||||
| LC1D15000M7C/220VAC/50/60Hz | LC1D15000Q7C/380VAC/50/60Hz | 150A | 45kW | 1NO+1NC | ||||
| LC1D17000M7C/220VAC/50/60Hz | LC1D17000Q7C/380VAC/50/60Hz | 170A | 45kW | 1NO+1NC | ||||
| LC1D205M7C/220VAC/50/60Hz | LC1D205Q7C/380VAC/50/60Hz | 205A | 45kW | 1NO+1NC | ||||
| LC1D245M7C/220VAC/50/60Hz | LC1D245Q7C/380VAC/50/60Hz | 245A | 45kW | 1NO+1NC | ||||
| LC1D300M7C/220VAC/50/60Hz | LC1D300Q7C/380VAC/50/60Hz | 300A | 45kW | 1NO+1NC | ||||
| LC1D410M7C/220VAC /50/60Hz | LC1D410Q7C/380VAC/50/60Hz | 410A | 45kW | 1NO+1NC | ||||
| LC1D475M7C/220VAC/50/60Hz | LC1D475Q7C/380VAC/50/60Hz | 475A | 45kW | 1NO+1NC | ||||
| LC1D620M7C/220VAC/50/60Hz | LC1D620Q7C/380VAC/50/60Hz | 620A | 45kW | 1NO+1NC | ||||

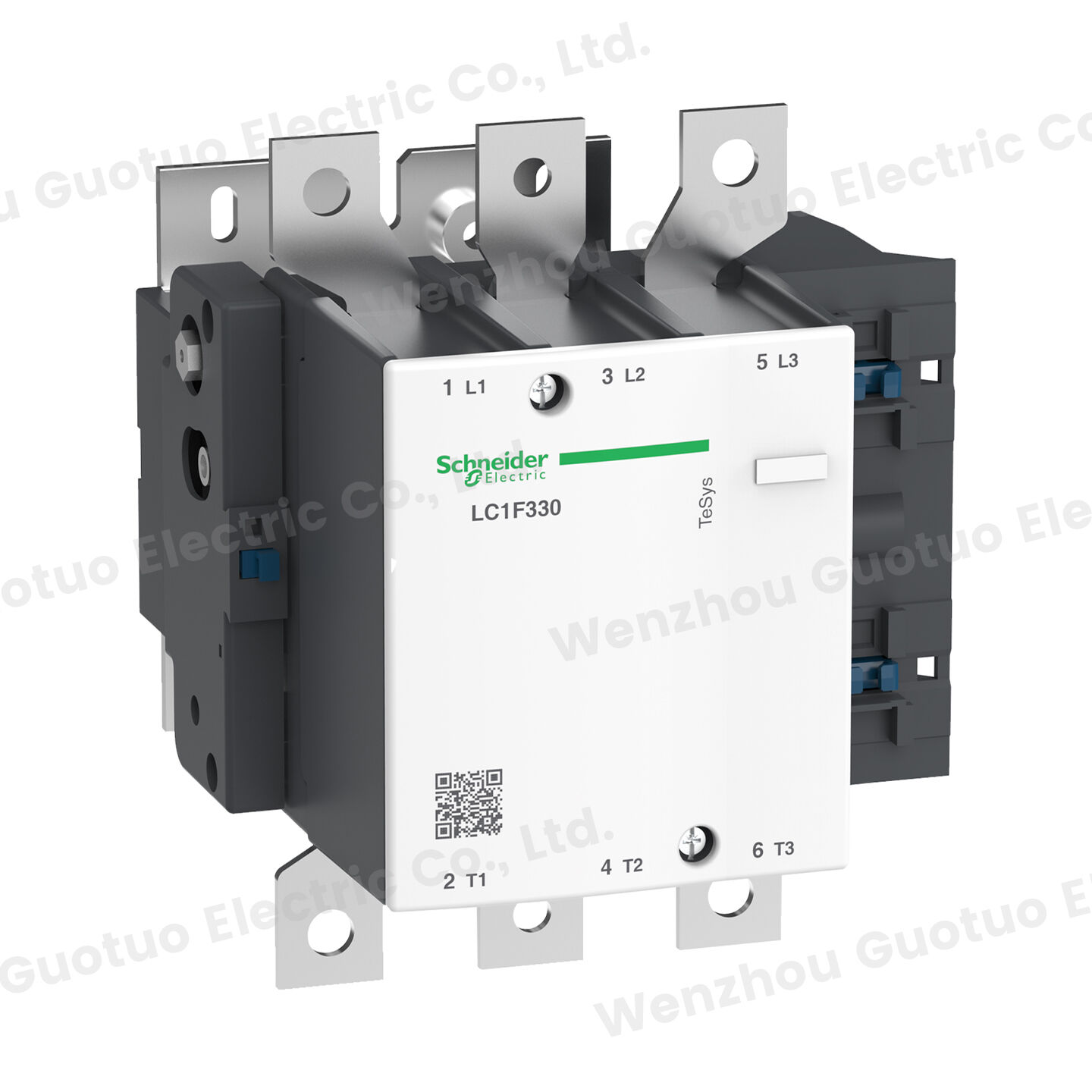

| LC1F series (TeSys F) | ||||||||
| Product positioning and core functions: | ||||||||
| TeSys F This series is specifically designed for high-current switching applications such as high-power motors, heating, lighting, and power factor compensation. Its core advantages include...Zero-flying arc safety design,Direct reading of contact wear scale(Easy to maintain)Dual-coil technology(Balancing fast response and low power consumption). Rated current up to 2600A, operating voltage up to 1000V. | ||||||||
| Model Description: | ||||||||
| The above are the standard selection data for the AC-3 application category. AC-1 (resistive load) offers a larger current capacity. Coil voltages are available in various specifications from 24-1000V AC/DC. | ||||||||
| Technical Specifications Overview | ||||||||
| Technical parameters | Specifications | |||||||
| Rated operating voltage (Ue) | ≤ 1000V AC | |||||||
| Extreme number | 3 poles | |||||||
| Operating temperature range | -5°C to +55°C | |||||||
| Installation method | Screw fixing / Surface mounting | |||||||
| Certification Standards | CCC, CSA, UL, ASE, MENKO, DEMKO, SEMKO | |||||||
| LC1F Series Detailed Model List | ||||||||
| model | AC-3 Rated Current (A) | 380V Rated Power (kW) | 400V Rated Power (kW) | 440V Rated Power (kW) | ||||
| LC1F115 | 115 | 55 | 59 | 59 | ||||
| LC1F150 | 150 | 75 | 80 | 80 | ||||
| LC1F185 | 185 | 90 | 100 | 100 | ||||
| LC1F225 | 225 | 110 | 110 | 110 | ||||
| LC1F265 | 265 | 132 | 140 | 140 | ||||
| LC1F330 | 330 | 160 | 180 | 200 | ||||
| LC1F400 | 400 | 200 | 200 | 250 | ||||
| LC1F500 | 500 | 250 | 280 | 295 | ||||
| LC1F630 | 630 | 335 | 375 | 400 | ||||
| LC1F780 | 780 | — | — | — | ||||
| LC1F1000 | 1000 | — | — | — | ||||
| LC1F1250 | 1250 | — | — | — | ||||
| LC1F1700 | 1700 | — | — | — | ||||
| LC1F2100 | 2100 | — | — | — | ||||
| LC1F2600 | 2600 | — | — | — | ||||

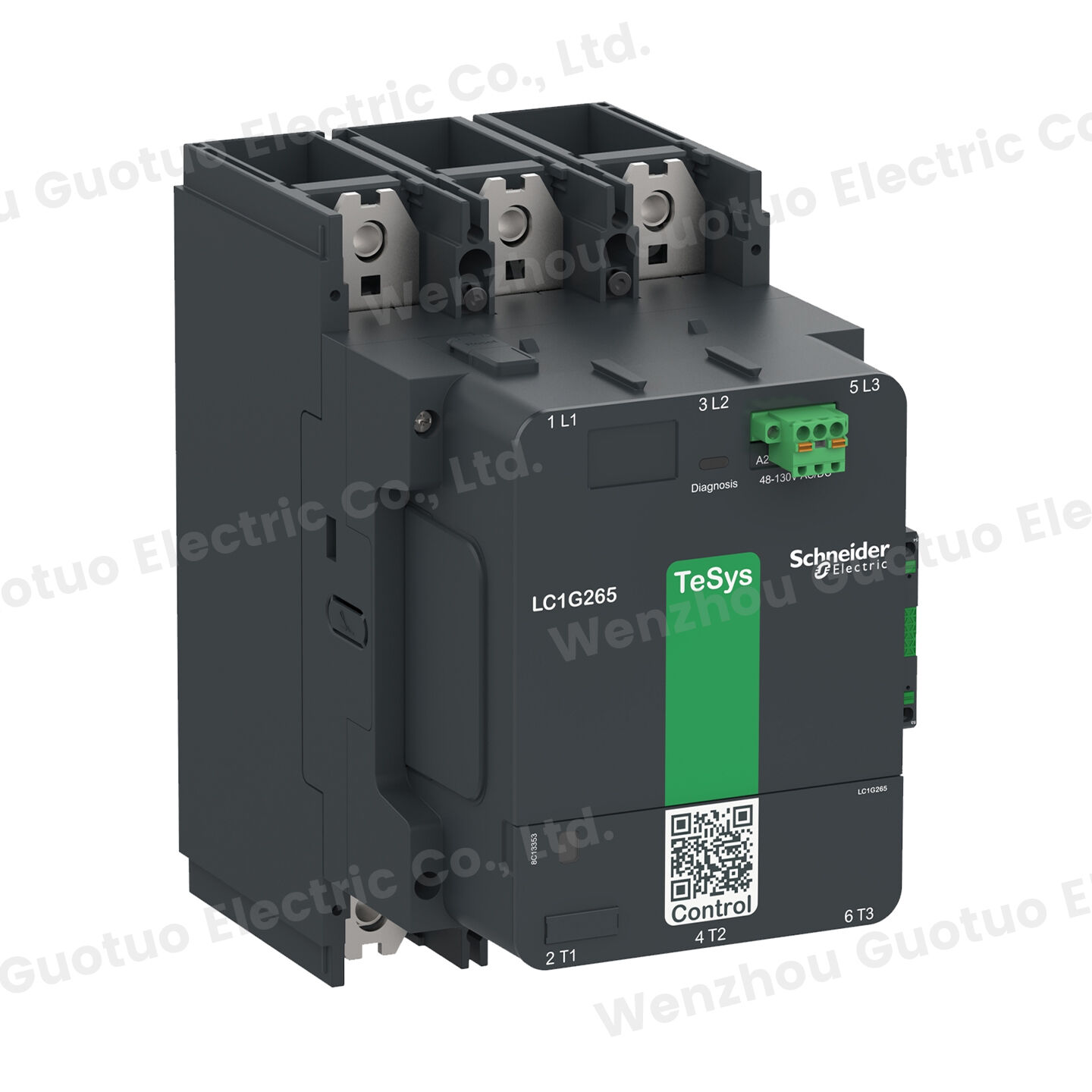

| LC1G series (TeSys Giga) | ||||||||
| Product positioning and core functions: | ||||||||
| TeSys Giga This series is Schneider Electric's top-of-the-line contactor platform, designed specifically for harsh industrial environments (wind power, heavy machinery, smart factories). Key advantages include:Local contact wear diagnosis (CWD)—Continuously monitor contact status and trigger alarms to enable predictive maintenance;Bidirectional peak current limiting coil technology—Wide voltage compatibility; compared to traditional productsVolume reduced by 40%Effectively saves cabinet space | ||||||||
| Model suffix explanation: | ||||||||
| C suffix (e.g., LC1G225C):Chinese version, compatible with auxiliary modules such as LAG8N11P/LAG8N20P. | ||||||||
| No C suffix (e.g., LC1G225):Global version, compatible with auxiliary modules such as LAG8N113P/LAG8N203P. | ||||||||
| Coil voltage:Supports multiple AC/DC specifications including 24V, 48-130V, 220-240V, and 380-400V. | ||||||||
| LC1G Series Detailed Model List | ||||||||
| model | Rated current (AC-3) | Power (380-440V) | Coil voltage | Auxiliary contact configuration | ||||
| LC1G115** | 115A | 55kW | AC/DC 48-130V | 1NO+1NC (built-in) | ||||
| LC1G150** | 150A | 75kW | AC/DC 48-130V | 1NO+1NC (built-in) | ||||
| LC1G185** | 185A | 90kW | AC/DC 48-130V | 1NO+1NC (built-in) | ||||
| LC1G225** | 225A | 110kW | AC/DC 48-130V | 1NO+1NC (built-in) | ||||
| LC1G265** | 265A | 132kW | AC/DC 48-130V | 1NO+1NC (built-in) | ||||
| LC1G330** | 330A | 160kW | AC/DC 48-130V | 1NO+1NC (built-in) | ||||
| LC1G400** | 400A | 200kW | AC/DC 48-130V | 1NO+1NC (built-in) | ||||
| LC1G500** | 500A | 250kW | AC/DC 48-130V | 1NO+1NC (built-in) | ||||
| LC1G630** | 630A | 335kW | AC/DC 48-130V | 1NO+1NC (built-in) | ||||
| LC1G800** | 800A | — | AC/DC 48-130V | 1NO+1NC (built-in) | ||||
| Auxiliary Module Selection Guide | ||||||||
| LC1G series auxiliary contact modules | ||||||||
| Contactor version | First position module (left/right) | Second position module (left/right) | Maximum number of modules | |||||
| Chinese version (LC1G*C) | LAG8N11P (1NO+1NC) / LAG8N20P (2NO) | LAG8N11 (1NO+1NC) / LAG8N20 (2NO) | 4 (1 included + 3 more can be added) | |||||
| Global version (LC1G*) | LAG8N113P (1NO+1NC) / LAG8N203P (2NO) | LAG8N113 (1NO+1NC) / LAG8N203 (2NO) | 4 (1 included + 3 more can be added) | |||||
| When installing the second contact module, the contactor width increases by 10mm; when installing four modules, the total width increases by 20mm. | ||||||||
| Quick Comparison of Three Major Series Selection | ||||||||
| Comparison Dimensions | LC1D (TeSys D) | LC1F (TeSys F) | LC1G (TeSys Giga) | |||||
| Current range | 9A ~ 620A | 115A ~ 2600A | 115A ~ 800A | |||||
| voltage level | ≤690V | ≤1000V | ≤1000V | |||||
| Core advantages | 2 million electrical cycles life / 45mm ultra-narrow width | Zero-flying arc safety / Contact scale monitoring | Contact self-diagnosis / 40% volume reduction | |||||
| Intelligent Diagnosis | ❌ none | ❌ none | ✅ Continuous contact wear monitoring (CWD) | |||||
| Applicable Scenarios | Conventional motor control, OEM equipment | High-power motors, power factor compensation | Smart factories, wind power, harsh environments | |||||
| Certification Standards | CCC, CE, UL, CSA, etc. | CCC, CSA, UL, etc. | CCC, UL, CE, RoHS, REACH | |||||

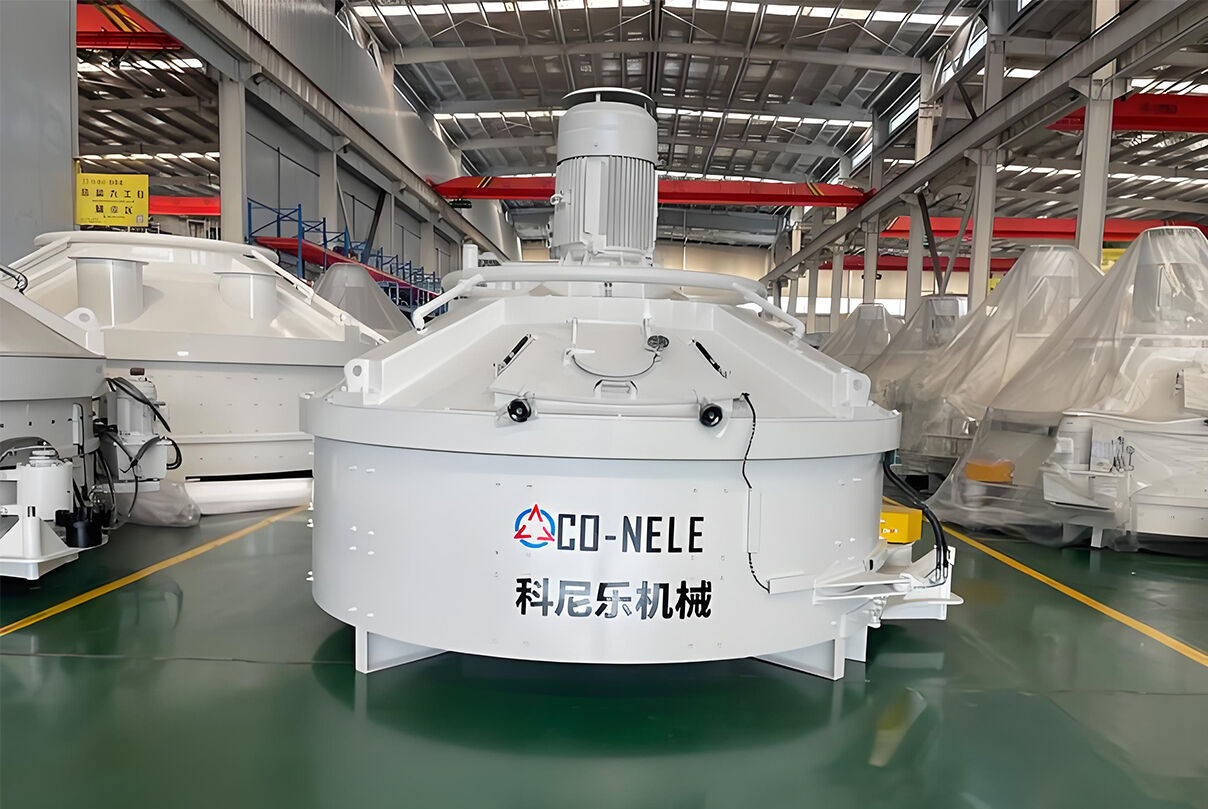

Scene 1:Conventional motor control: water pumps, fans, conveyor belts, mixers, small compressors, machine tool spindles (≤75kW)
Special features: Available in both domestic and imported versions, supports direct PLC connection, and comes with a full range of accessories (auxiliary contacts, mechanical interlocks, and delay modules).

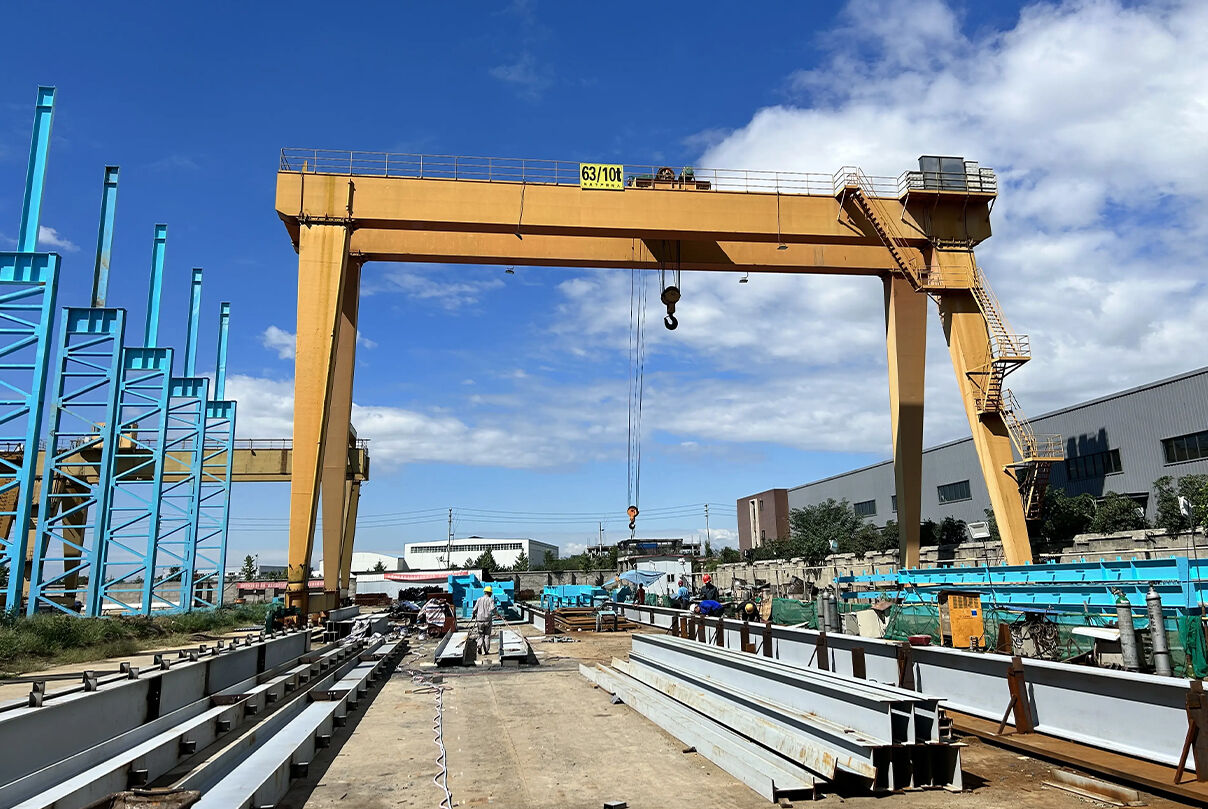

Scene 2:Frequent start-stop operations: Rolling mills, cranes, conveyors, stamping equipment (AC-4 loads)
Special features: 10 million mechanical cycles, 2 million electrical cycles; silver-tungsten contacts are resistant to ablation, suitable for million-cycle start-stop operation.

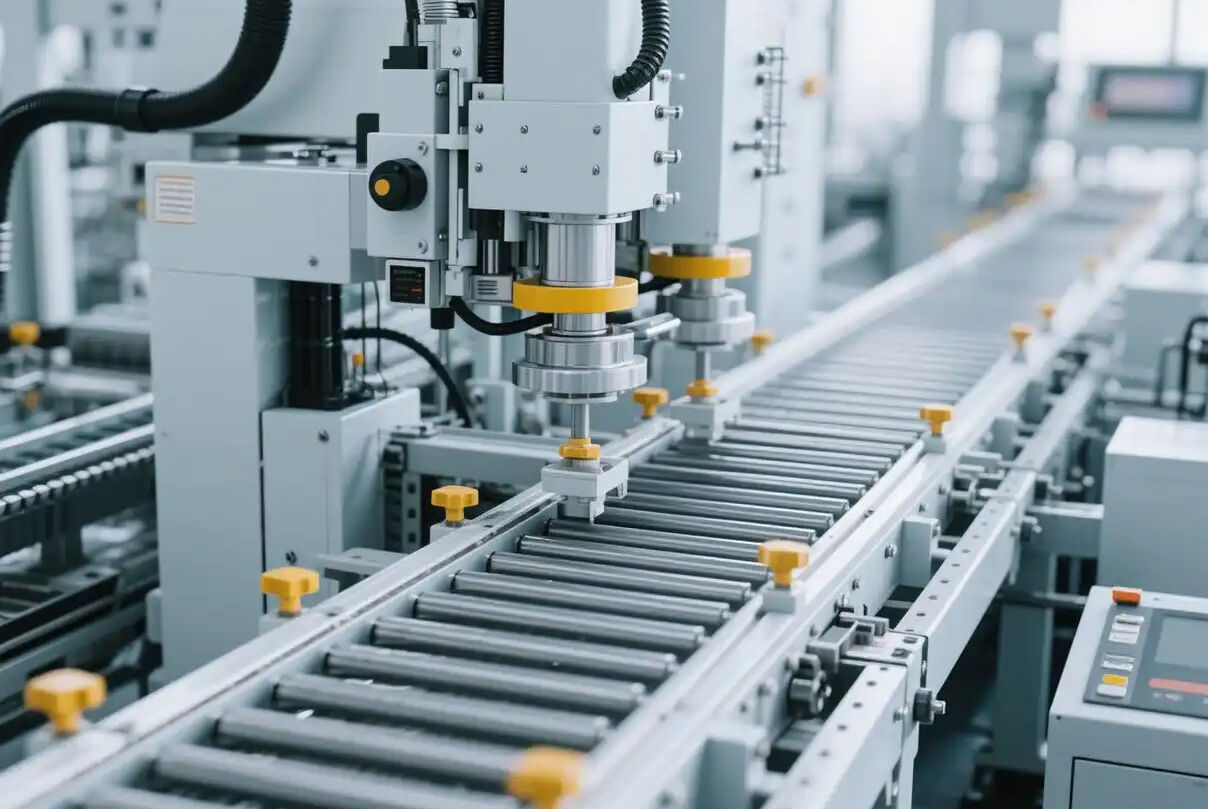

Scene 2:Smart factory/digital production line: automated production line, robotic workstation, intelligent power distribution
Special features: Comes with 1 NO + 1 NC auxiliary contact; the advanced version supports direct PLC connection, digital monitoring, and fault diagnosis, and is compatible with the Industrial Internet.
